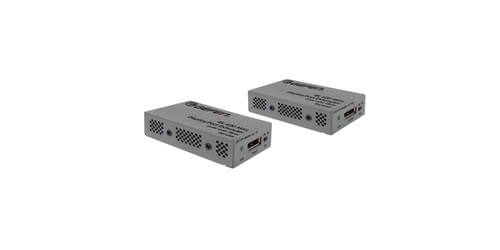

4K DisplayPort Extender over SC Fiber Optic Cable
Introducing the Gefen EXT-DP-4K600-1SC 4K DisplayPort Extender over SC Fiber Optic Cable. These units are high performance and are a compact solution for extending 4K60 4:4:4 DisplayPort 600MHz video/audio over fiber. This extender kit is compliant with HDCP 2.2, HDCP 1.4, and DPCP. With these devices the user(s) can extend up to 660' over a single SC-terminated 50/125 OM3 or higher multi-mode fiber optic cable.
It is compliant with EMC standards EN 60601-1 and EN 60601-1-2 when used with the Gefen EXTPS52AU-M-1.3-6-AL Power Supply (not included). These units can be powered by using external power supplies or from displays and sources that have powered USB ports. For the majority of these devices application settings, the Receiver and Sender will work without any set-up and are plug-and-play. Both units feature easy-to-use EQ switches in cases where signal optimization becomes necessary due to special requirements of a display and/or source.
Additionally this extender kit supports useful and popular DisplayPort technology such as Multi-Streaming, which allows the user to connect multiple daisy-chained to a single DisplayPort output, as well as Auxiliary Channel which transports data and control along with the AV signal. The compact and sturdy metal enclosures are easy to install and hide away, they help to provide immunity against EMI (ElectroMagnetic Interference) as well as RFI (radiated noise). Ideal applications of this kit include military, industrial command and control rooms, medical imaging, flight simulators, gaming, digital signage and wherever end-to-end electrical isolation or 4K bandwidth uncompressed video are needed.
- Input (Sender): 1x DisplayPort 20-pin
- Output (Receiver): 1x DisplayPort 20-pin
- Resolution: 4K60 4:4:4 (600 MHz)
- Bandwidth: 21.6 Gbps (5.4 Gbps per lane, 4 lanes)
- Link Connector (Sender/Receiver): 1x Type SC
- Link Indicator (Sender/Receiver): 1x LED, green
- Power Supply (Sender/Receiver): 1x 5V DC
- Power Connection (Sender/Receiver): 3.5mm/1.3mm barrel jack
- Sender Power Consumption: 1.75W
- Receiver Power Consumption: 2.0W
- Optical Power Budget: 6.5 dB
- Included Items: 1x EXT-DP-4K600-1SC-TX Sender Unit, 1x EXT-DP-4K600-1SC-RX Receiver Unit, 2x DisplayPort Male-to-Male 6' Cables, 2x USB-to-DC 2.3' Cables, 2x EXT-PS52AIP-1.3-6-AL Power Supplies, 2x Regional AC Plugs (US, UK, EU, and AU), 1x Quick Start Guide
- Sender/Receiver Dimensions (WxHxD, not including connectors): 1.77" x .86" x 3.11"
- Sender/Receiver Weight: 4.8 oz. each
- Warranty: 2 years
