Kramer AV TBUS-10xl-KIT1
Table Well Popular Kit with Slide Away Lid

Description

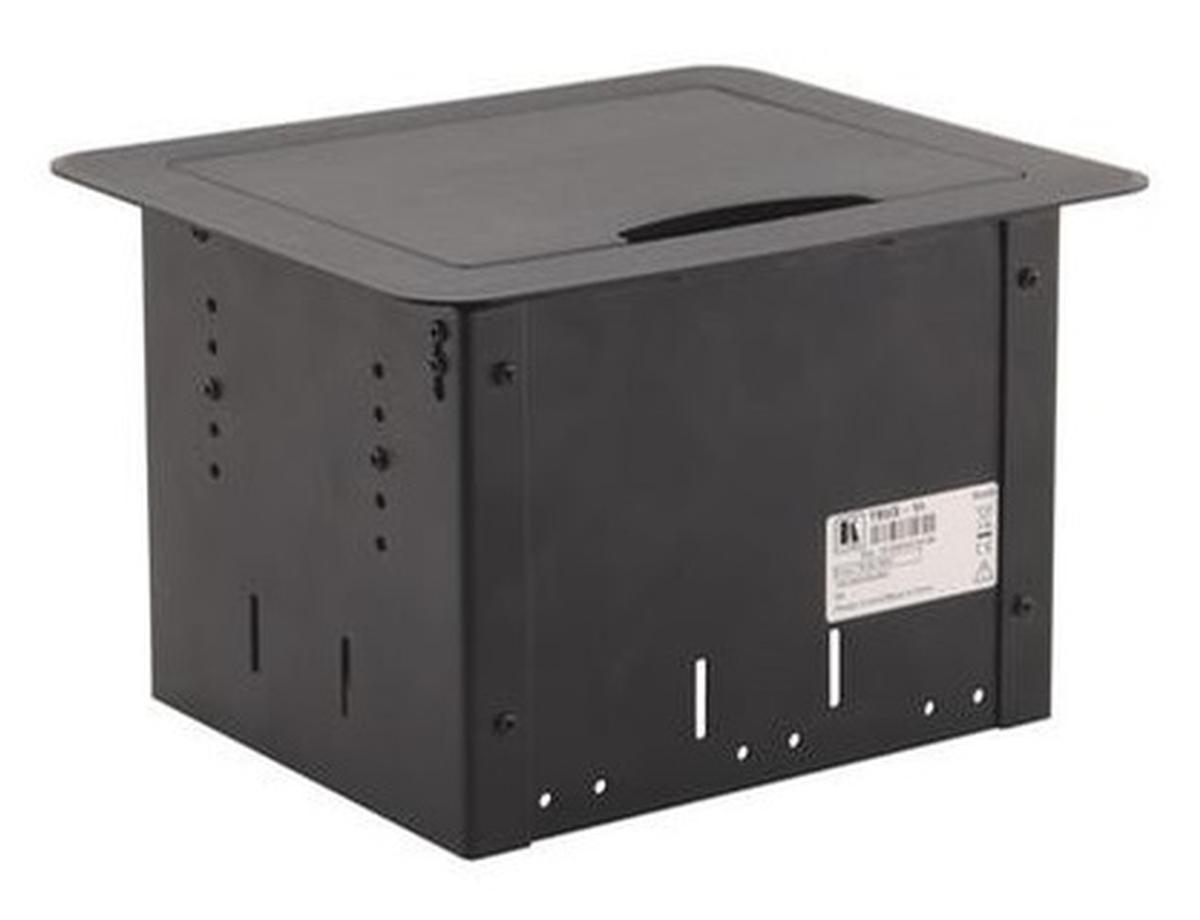

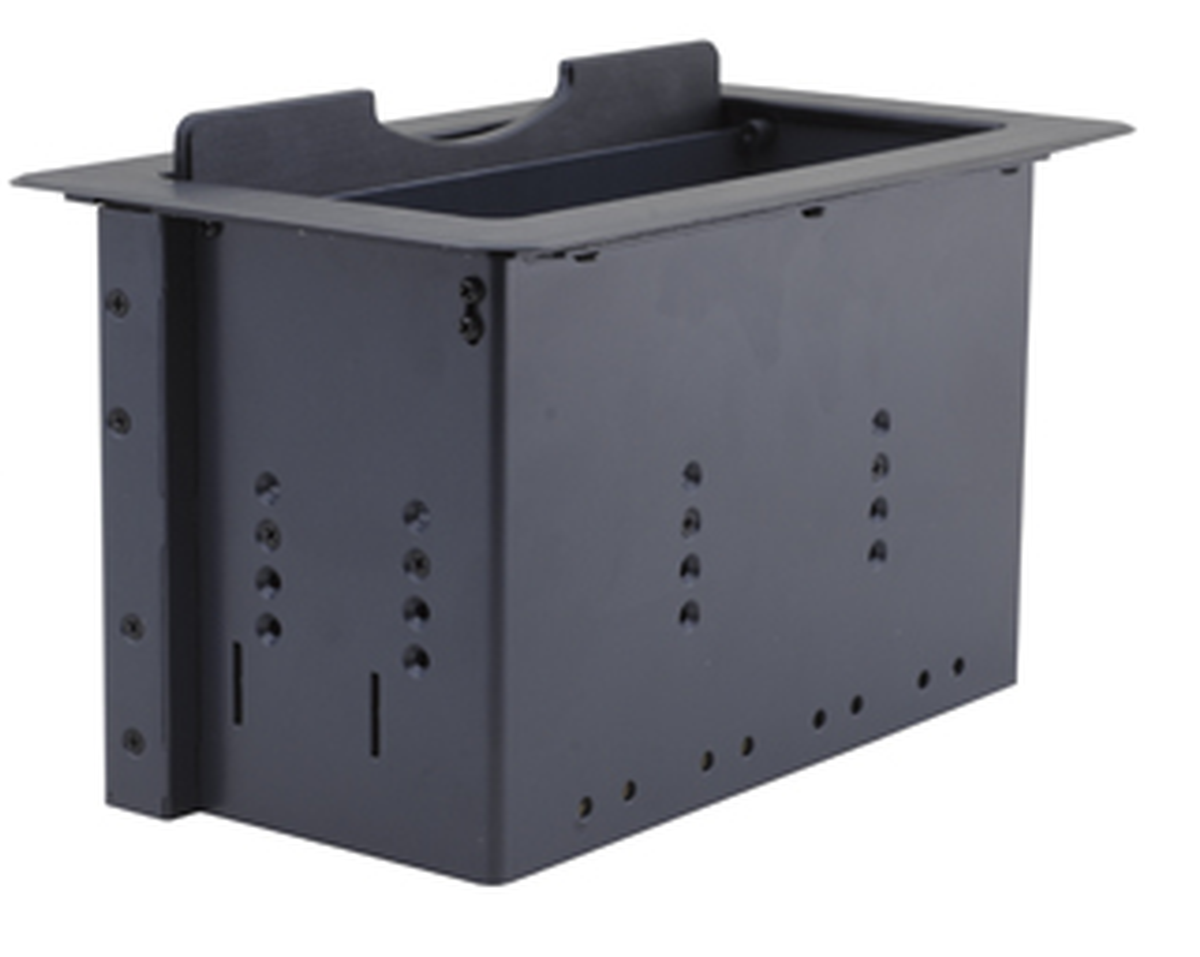

The Kramer TBUS-10xl-KIT1 is a table well box that ships with the most desired connections, the box is modular so as your needs change in the future or new technologies come out you can easily swap out connections.  The tilting lid also retracts down into the unit when needed, the lid also has an opening that allows cables to be plugged in with the lid closed.

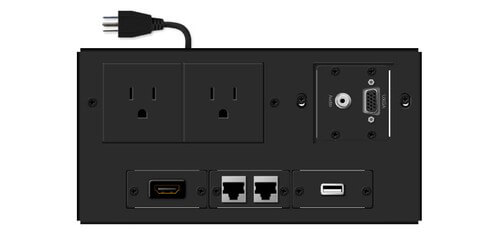

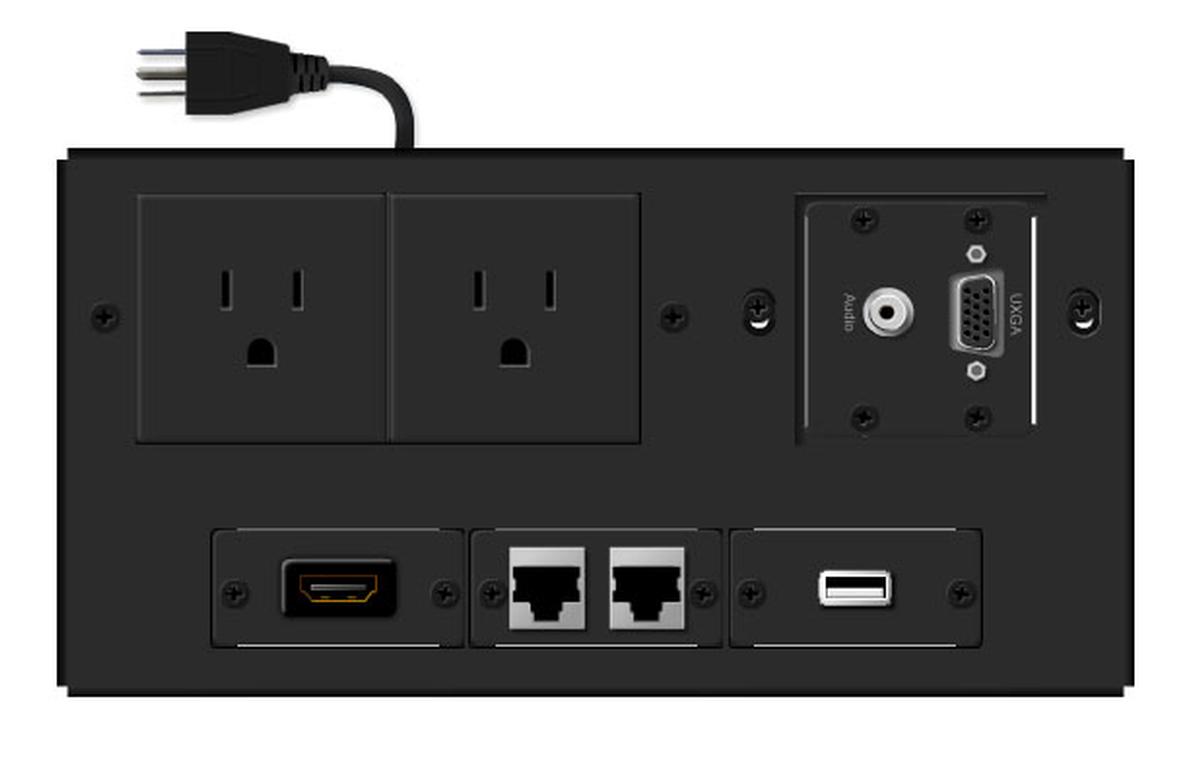

The kit includes 2 power with a single 6' cord, 1 15 pin VGA with audio, 1 HDMI, 2 data, and 1 USB A.  All connections are F-F for easy plug and play.

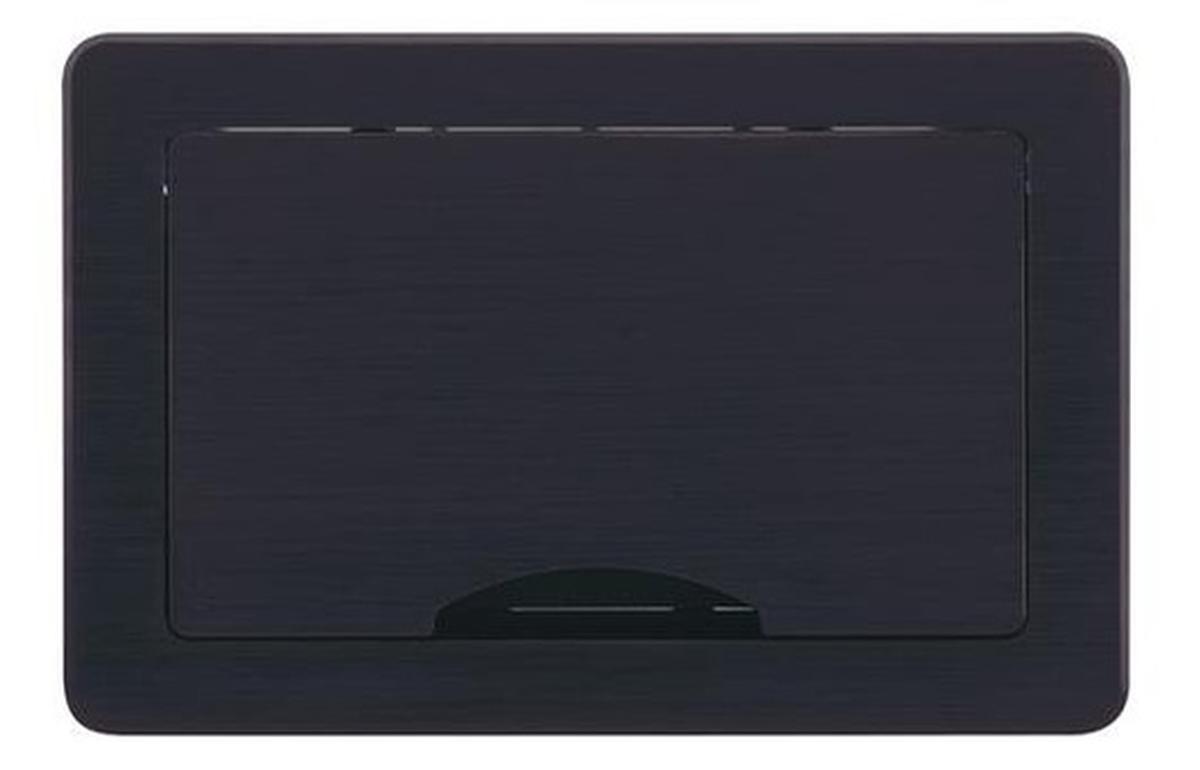

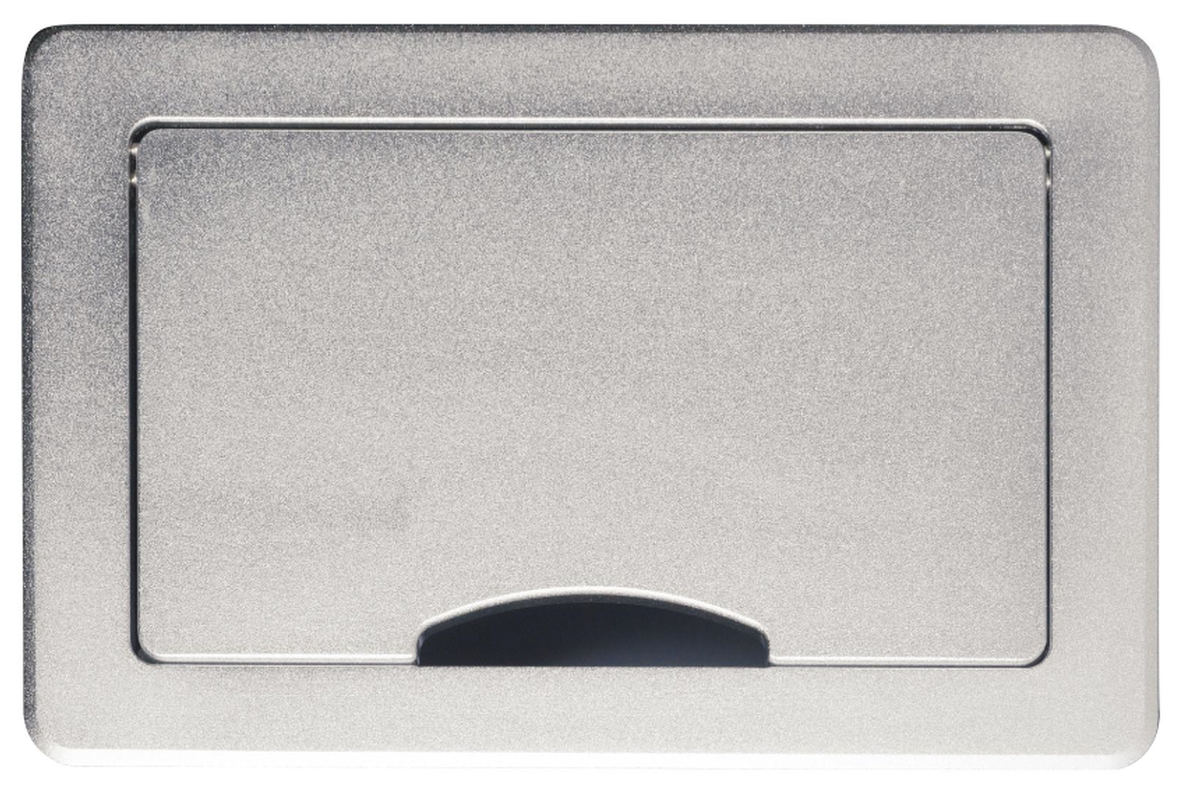

Choose between black anodized aluminum and (silver) clear anodized aluminum.

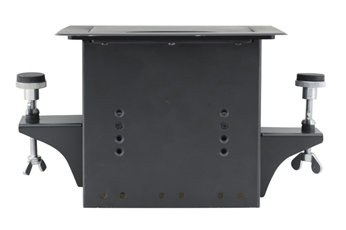

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you need?  We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Cutout dimensions: 9.65" x 6.08"
• The box is 5.1" deep, you can install the connections at different levels in the box in case you need space for cable storage
• Will work in tables from 3/4" to 3" thick
• Mounting hardware included
• Warranty: 7 years

Downloads

• Kramer AV TBUS-10xl-KIT1 Specifications (PDF)
• Kramer TBUS-10xl(B)-KIT1 Manual (PDF)
• Kramer TBUS-10xl(B)-KIT1 Cutout Template (PDF)
