Kramer AV TBUS-1Axl-KIT7
Retractable Cable Table Box w/ HDMI, VGA, Audio, & Data

Description

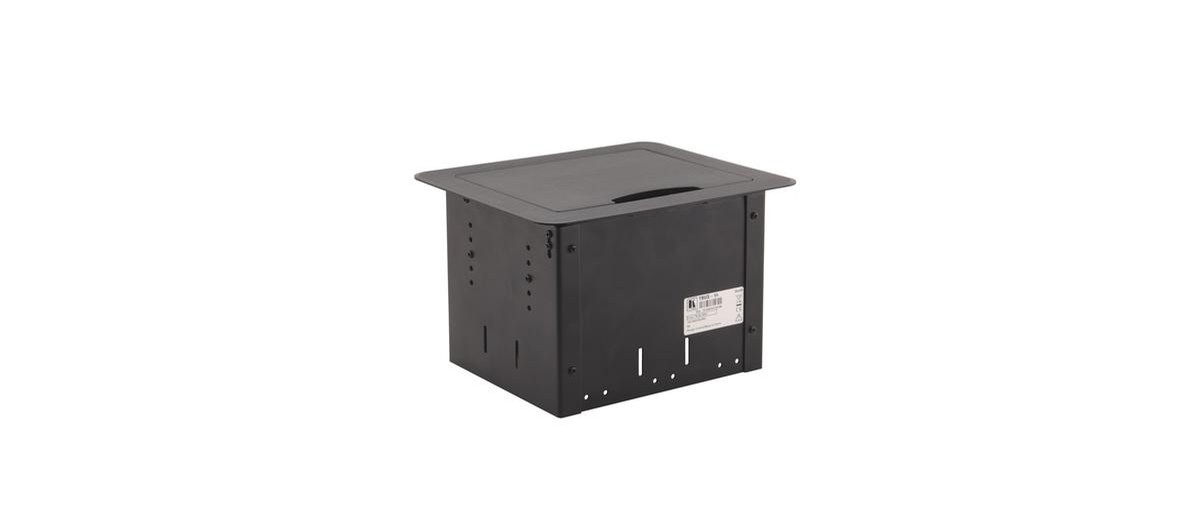

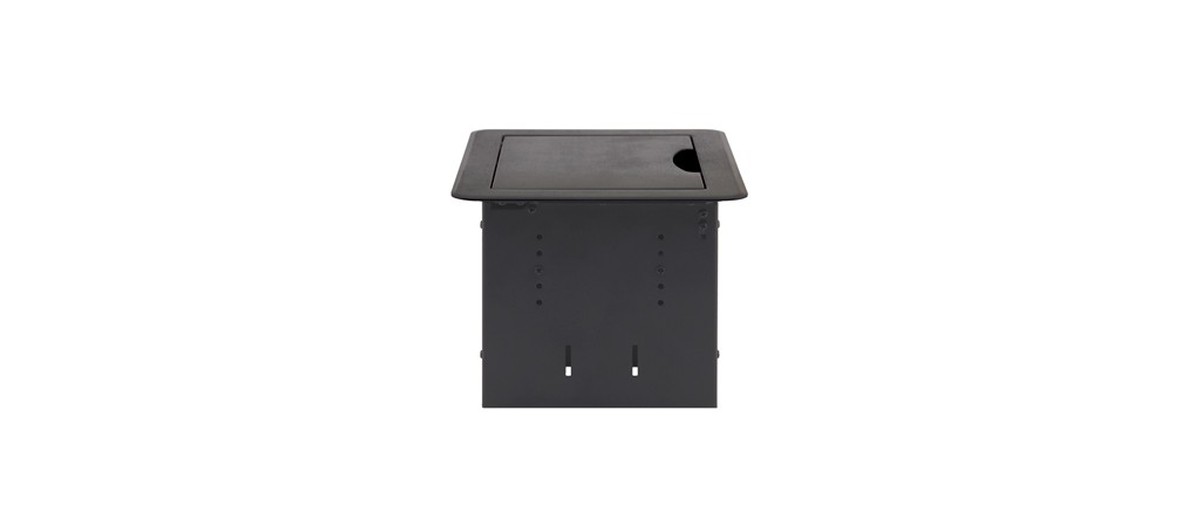

The Kramer TBUS-1Axl-KIT7 is a multi-format table box with retractable cables, the box mounts flush in your table with a lid that tilts up to expose your connections when needed.  Retractable cables are an ideal choice as they are always there so you never have to go looking for the correct cable.  The opening in the lid allows for cables to be plugged in with the lid closed, pull out your cables and close the lid for a unobstructed work surface.

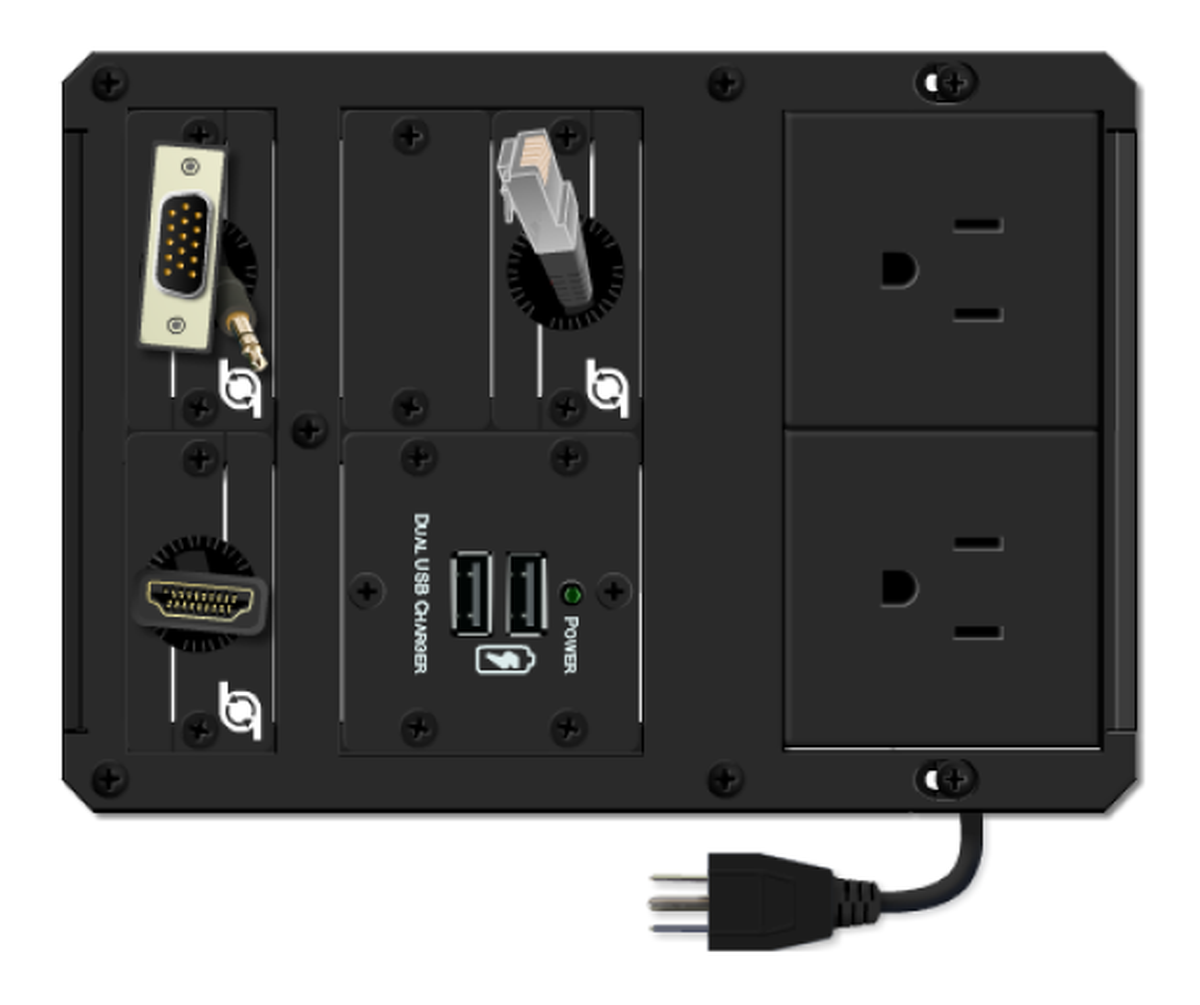

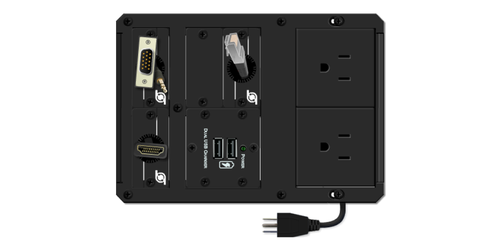

Includes:  (2) power with one 6' cable, (1) 5.9' retractable HDMI, (1) 5.9' retractable VGA and audio, (1) 5.9' retractable RJ45 (Data), and 2 charging USB ports. The retractable cables all feature a 15" female ended pig tail on the bottom for easy connection.

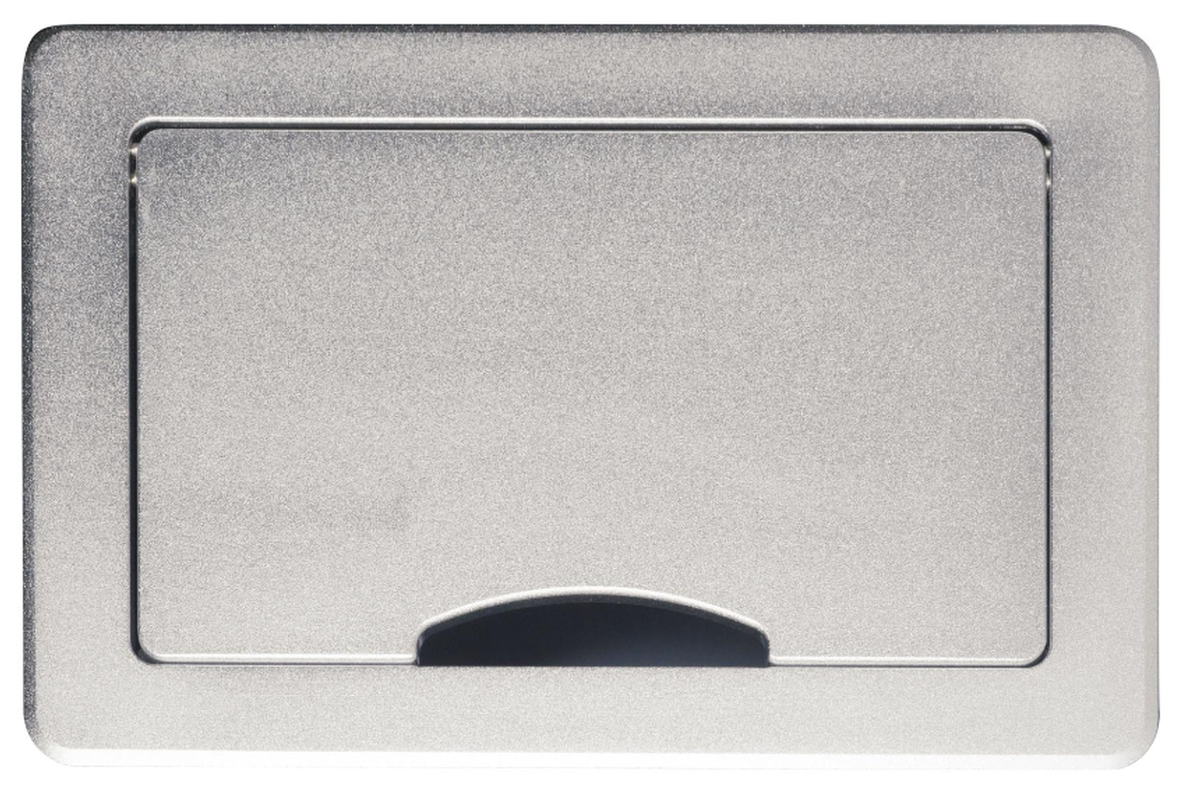

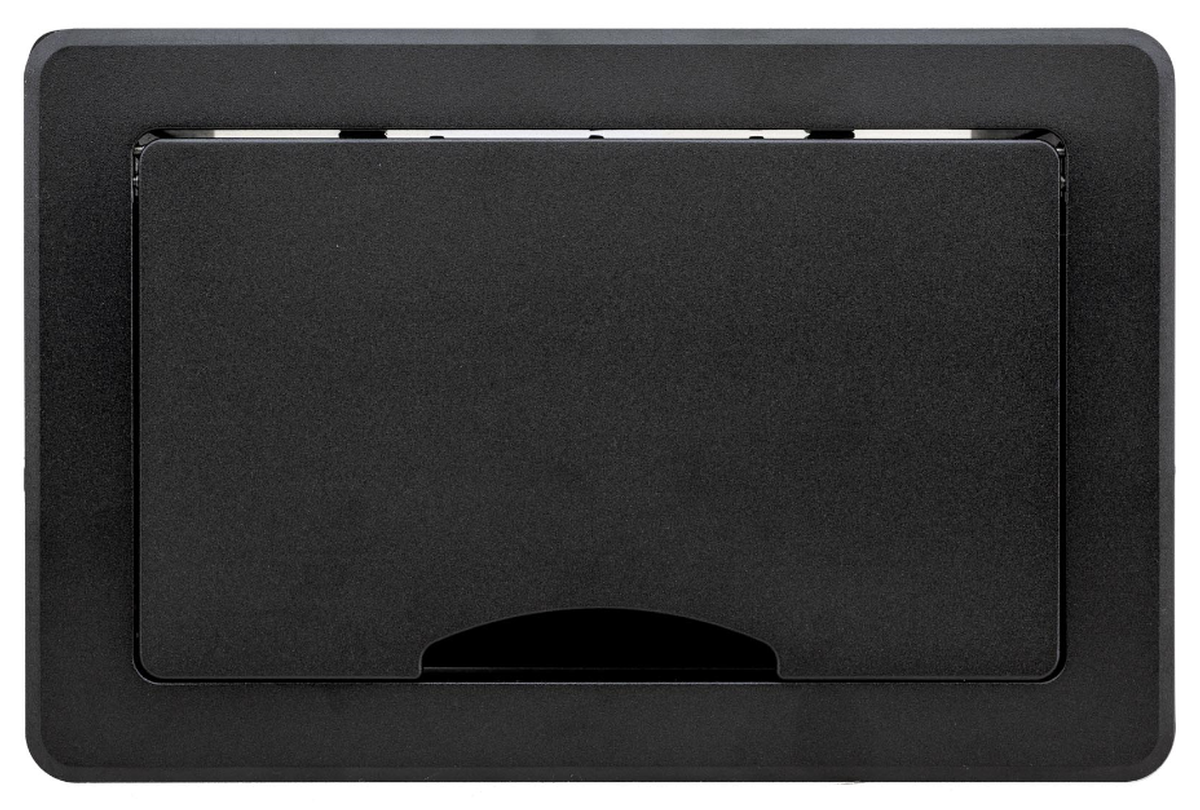

Choose between black anodized aluminum and (silver) clear anodized aluminum.

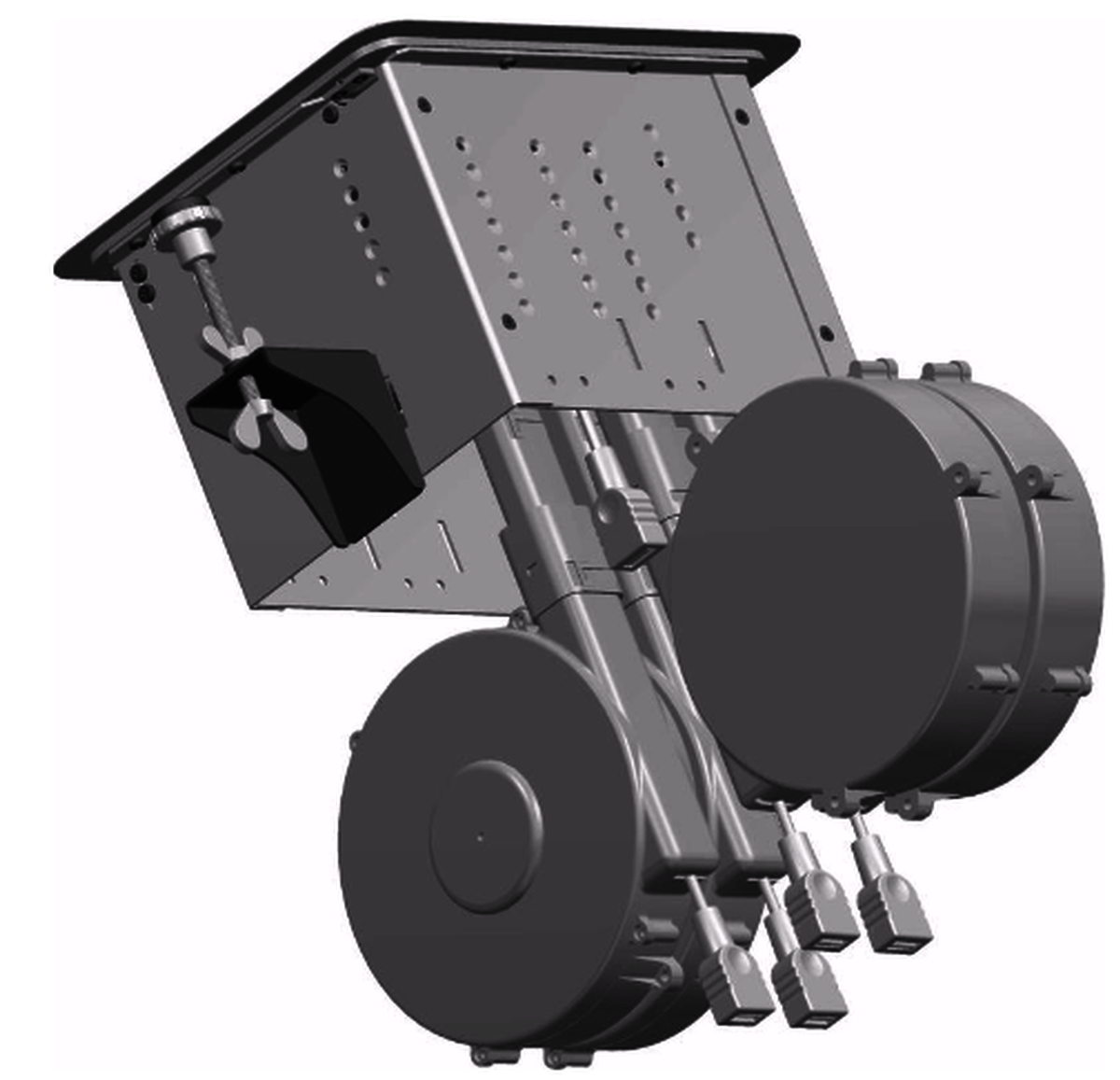

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms, training facilities, lab tables, lecterns, and any table surface you need connectivity.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you need? Want a lid that provides wireless charging? To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• The charging USB ports are 2 amps each
• The connections can be installed higher or lower in the box
• Box dimensions: 8.07"W x 6.69"D x 5.20"H
• Table cutout: 7.51in x 5.98in
• Mounting hardware included
• Works in tables up to 3" thick
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-1Axl-KIT7 Specifications (PDF)
• Kramer AV TBUS-1Axl-KIT7 Manual (PDF)
• Kramer TBUS-1Axl(B)-KIT7 Cutout template (PDF)
