Williams Sound AN C5
Annotation Pro - Hardware Based Processor, Live Video Annotation

Part #: AN C5
This product has been discontinued

For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
Top AN C5 Specifications

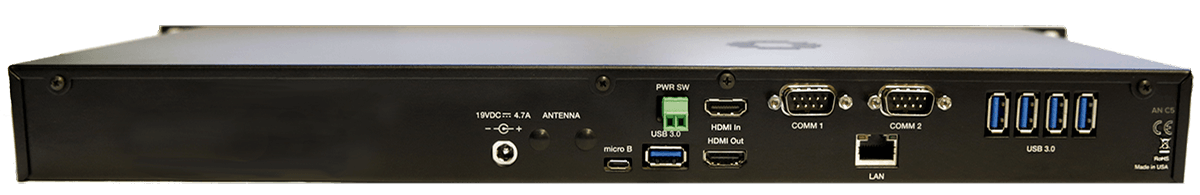

  • Video Input: HDMI up to 3840 x 2160 @ 24/25/30 fps
  • Video Output HDMI up to 3840 x 2160 @ 60 fps
  • USB (5) USB 3.0 ports, plus (1) USB B-Micro port
  • Non-HDCP Compliant
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008

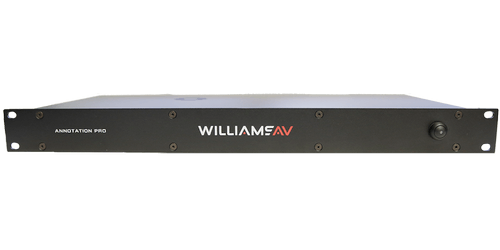

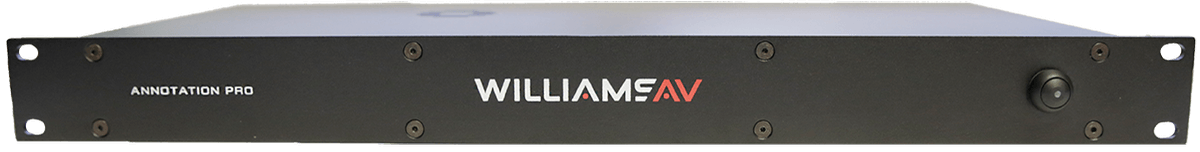

The AN C5 Annotation Pro by Williams AV is the next generation in broadcast quality video annotation systems! Providing the ability to annotate live over video content at resolutions up to 4K, presentations have never looked so brilliant.

Not HDCP Compliant. See AN C5P for HDCP version.

Additional features include the ability to connect USB sources, such as cameras, with live, full motion annotation with zero latency, as well as a Picture -in-Picture mode where multiple sources can be viewed simultaneously and annotated upon. Capturing your presentation is as simple as selecting the record button on the toolbars and recording all content as well as annotations directly to a USB Drive or a network storage device. Additionally, users can capture still images of the presentation for storage or send directly to any network printer for documentation.

The Annotation Pro is the ideal piece to add to any meeting space when making an impactful presentation is a must!

Can be integrated into a variety of audio/visual systems; including:

  • Courtrooms
  • Operating Rooms
  • High-end Presentation Stages
  • Control Centers
  • Sports Coaching Facilities


  • Power Source TFP 060 - 19VDC 4.7A (center positive)
  • Temp Operating Requirements 32 F to 122 F (0 C to 50 C)
  • Dimensions: 19" (W) x 1.75" (H) x 8.2" (D)
  • Weight: 5 lbs. (2.3 kg)
  • Approvals: CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE
  • Warranty: Two (2) year, parts and labor
