Altinex TNP121
Tilt Up Table Box w/ 1 AC, 1 VGA, 1 Audio, 1 Data, 1 Phone

Part #: TNP121
Satisfaction Guaranteed!
5 out of 5 based on 3 ratings.
This product has been discontinued.
Click for $7 Off!
Add To Quote
Free Shipping* | Low Price Guaranteed | Authorized Dealer

Description

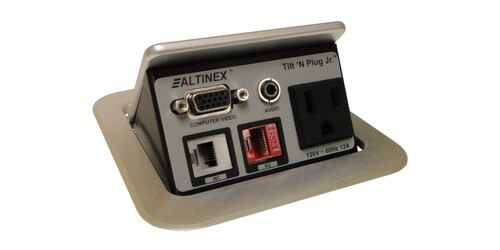

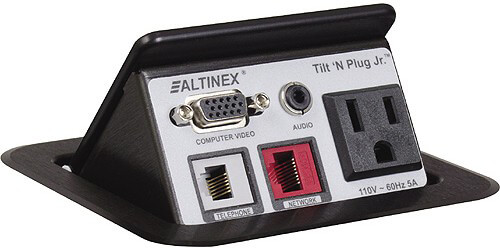

The Altinex TNP121 Tilt 'N Plug tabletop interconnect box uses a multimedia input plate that can be "tilted' open when needed and pushed closed when not needed. The top comes in your choice of black or silver anodized aluminum.  It provides a single input plate with all the essentials: AC power, VGA computer video (15pin HD F/M), computer/MP3 audio (3.5mm F/M), telephone (RJ11 F/M), and network (RJ45 F/M) input connections. All inputs include a 6' male terminated cable, while the power cord is 9' in length.

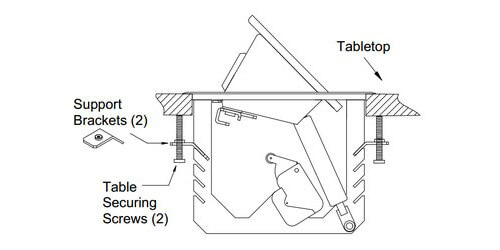

The box mounts flush in the table and the bezel has beveled edges so running paper across it won't snag any papers and will make it look even thinner.  To open press the top and the hydraulic gas spring will pop it open, to close press till it latches shut. To install, cut your hole using the cutout template and drop in the hole.  It easily is secured to the underside of the table via pressure with thumb screws.

Specifications

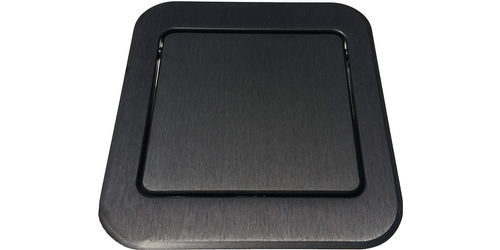

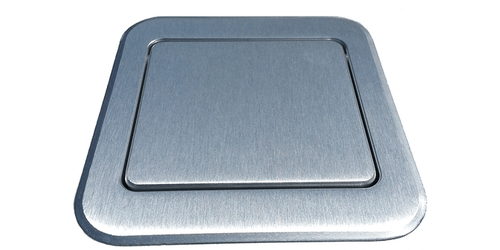

  • Color: Black or silver anodized aluminum
  • Mounts flush into tabletop
  • Connections: 1 VGA, 1 Audio, 1 phone, 1 Cat6, and 1 Power
  • Opens/closes by pressing on top panel

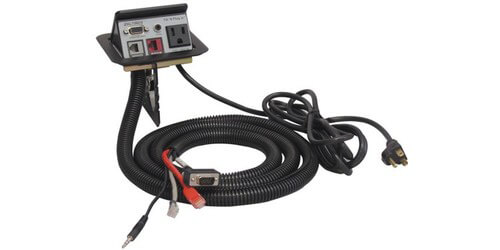

  • All 6' cables pass through to the underside of the table with male terminated ends
  • Power cable: 9'
  • Bezel dimensions: 4.6" x 4.9"
  • Cutout dimensions: 4.2" x 4.5"
  • Table thickness: .75" to 2.25"
  • Depth under table: 4.9"
  • UL listed
  • Mounting hardware included
  • Warranty - Table box: 10 years, Gas spring: 1 year
Connections on this unit can be customized. Our factory trained technicians build the unit to your exact requirements and ship it out assembled and ready to install. Customization and testing typically takes 2-3 days before shipping.

Q & A

This product has no questions - ask one!

Ask a Question

Your Name:
Your Email:
Question:

Reviews

Overall Customer Rating:
5 out of 5 based on 3 ratings.
Name: Ronan
Rating:
5
Date: April 26, 2013

This item looks beautiful in our conference room and has cleaned up the previous cable mess that we had, everyone that comes in for a presentation comments on how nice it looks. It has a very strong spring on it when it lifts up but is also easy to close shut.

Name: Jonathan
Rating:
5
Date: November 05, 2012

I installed 2 of these in a conference room for a client and used the MX2106AV 2:1 VGA switcher between it and the flat panel. My clients loved it, the switcher provides auto sensing so when somebody plugs in their VGA cable it automatically senses the input and switches to the signal and shows up on the display. This was a very easy to install system for us and will use these for future installs.

Name: Mark
Rating:
5
Date: March 16, 2012

The TNP121 arrived in 3 days and was well packaged and easy to install.  It was high quality and looked great in our conference room.

Review Product

Your Name:
Your Email:
How would you rate this item?
Review:
