WyreStorm EX-35-4K

HDBaseT 4K Extender Kit w/ IR, RS-232 & Power - 230'

Satisfaction Guaranteed!
Part #: EX-35-4K
For pricing & ordering information on this product:

-Please call us at 888-999-3759
-Click here to request a quote
-Contact us via Live Chat
0 out of 5 based on 0 ratings.

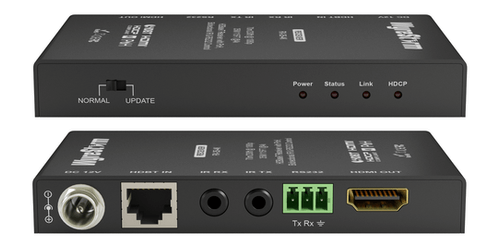

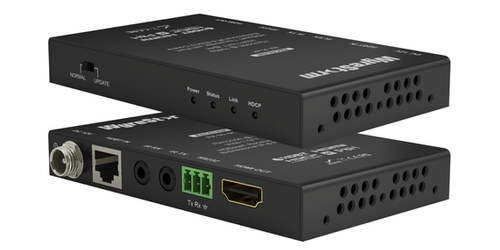

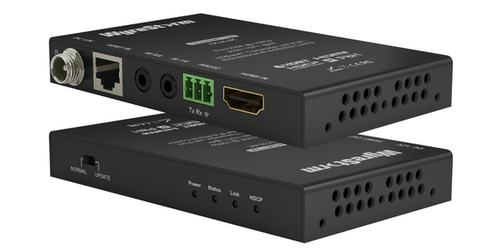

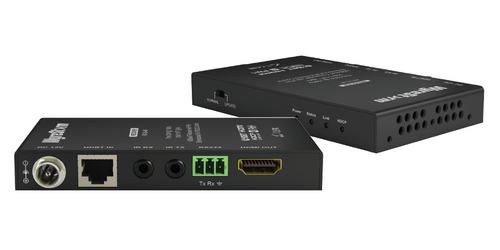

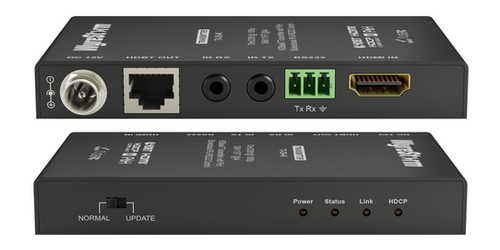

The WyreStorm EX-35-4K is an HDBaseT receiver and transmitter kit designed to send your signal over Cat5 cable, you can send your 1080P signal up to 230' and your 4K60 4:2:0 signal up to 115'.  Not only can you send your video but you can also send bi-directional IR and RS-232, as well as power.  The transmitter sends the power required to the receiver so the receiver does not have to be plugged in, the receiver is only .6" thick so it can be installed almost anywhere.

The WyreStorm EX-35-4K is HDCP 2.2 compliant, supports EDID management, and will pass through CEC and 3D.  LED indicator lights always let you know the status of your devices, also included are mounting brackets making installation easy.  The kit is cascadable up to 7 times and the power supply for the transmitter is an energy efficient model for low power consumption.

The WyreStorm EX-35-4K is an affordable kit that has a long list of features for your HDBaseT transmission needs.



  • Class B HDBaseT receiver and transmitter kit
  • Sends: IR, RS-232, power, and up to 4K video with embedded HD audio
  • Distance: 1080P@60 w/ 36bit deep color signal up to 230' and 4K60 4:2:0 24bit signal up to 115' using Cat6/6a
  • Passes 3D and CEC
  • HDCP 2.2 compliant
  • Supports EDID
  • HDMI 1.4
  • Bidirectional IR and RS-232 Pass-through
  • Video Amp Bandwidth: 10.2Gbps
  • Cascadable up to 7 times
  • Dimensions: 4.3" x 0.59" x 2.5"
  • Includes: Transmitter and power supply, receiver, 3-pin phoenix male connector, 2 each of IR emitter and receiver, mounting brackets
  • Warranty: 5 years
