AVPro Edge AC-EX70-UHD-KIT
4K60 HDMI 2.0, HDCP 2.2 HDBaseT Transmitter and Receiver
- Transmitter and receiver HDBaseT kit
- Max resolution: 4Kx2K 30Hz or 4Kx2K 60Hz YUV 4:2:0
- Compliance: HDCP 2.2 and HDMI 2.0
- Distance: 1080P up to 230', 4K up to 131'
-Lynn Y.
Description
The AVPro Edge AC-EX70-UHD-KIT is a proven, cost-effective HDBaseT extender for HD and UHD video. It carries uncompressed signals up to the HDBaseT maximum of 10.2 Gbps over a single Cat 5e, 6, 6a or 7 cable.
The Cat 6a, 1080p runs reach 70 meters (230 ft), while 4K60 4:2:0 and 4K30 4:4:4 signals run up to 40 meters. VESA resolutions up to QSXGA are supported too.
The pencil-thin transmitter and receiver can fit into tight spots behind displays, inside racks, and power can be applied at either end because the kit is bidirectionally powered. It is built to be used around-the-clock use in control rooms, data centers, conference rooms and school campuses, with ESD protection on connected equipment as an extra safeguard.
Installers get fourteen pre-configured EDIDs for common HD and UHD displays, plus EDID copy and EDID bypass, to settle fussy display or AVR handshakes. Onboard IR pass-through and RS-232 let you control a remote display or projector from the equipment rack, which also makes it easy to reuse an old IR run when swapping in a new projector. If you need 4K60 4:4:4 with HDR, move up to the AC-EX70-444-KIT.
Key Features
- Uncompressed HDBaseT: up to 10.2 Gbps for HD and UHD video without compression.
- Reach: 70 m for 1080p and 40 m for 4K over Cat 6a.
- 14 preset EDIDs: plus EDID copy and bypass to solve display compatibility issues.

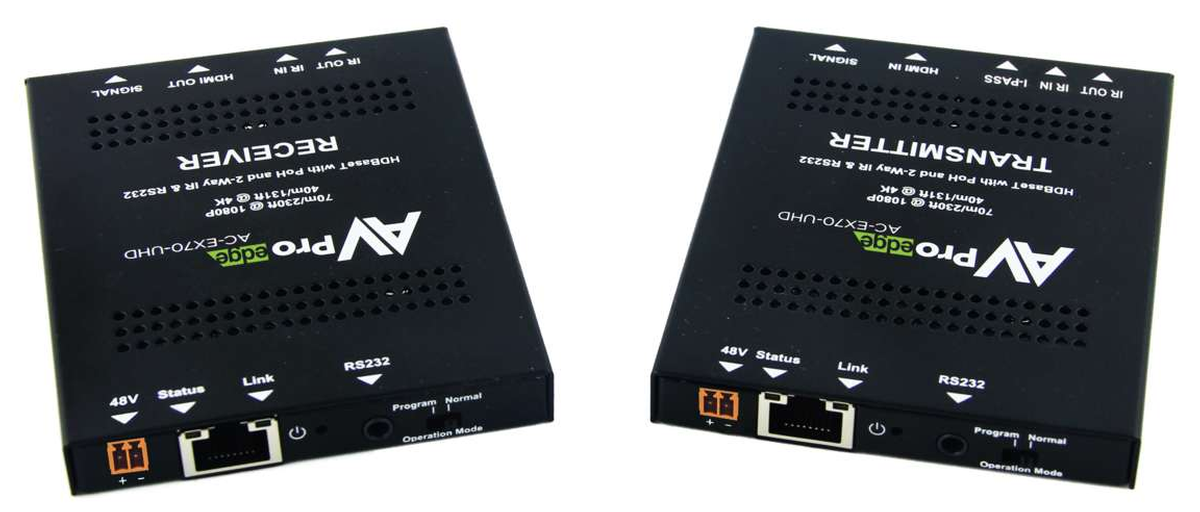

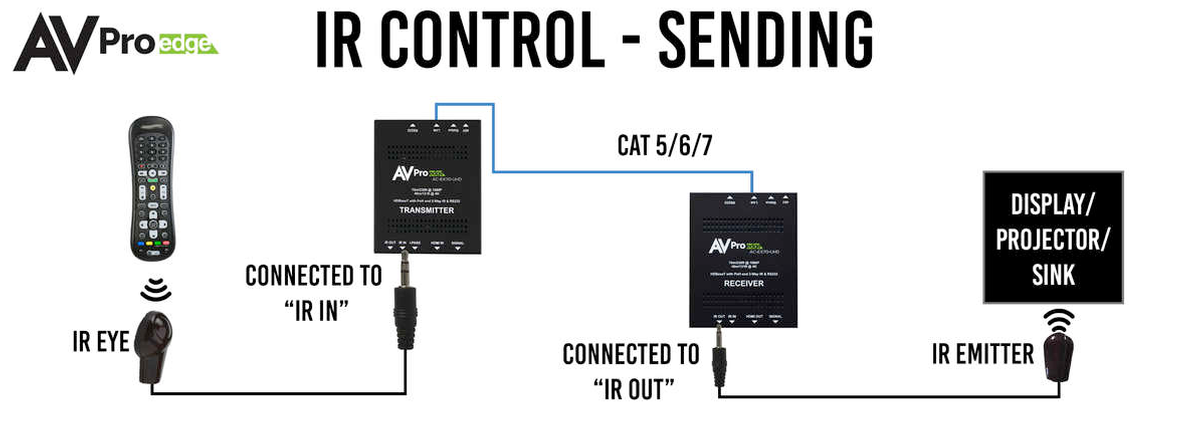

- Bidirectional control: IR pass-through and RS-232 in both directions.

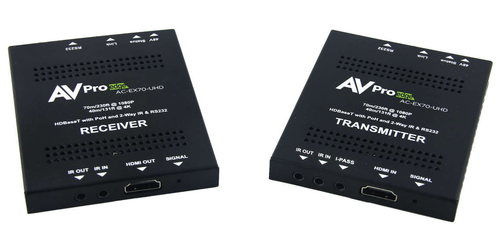

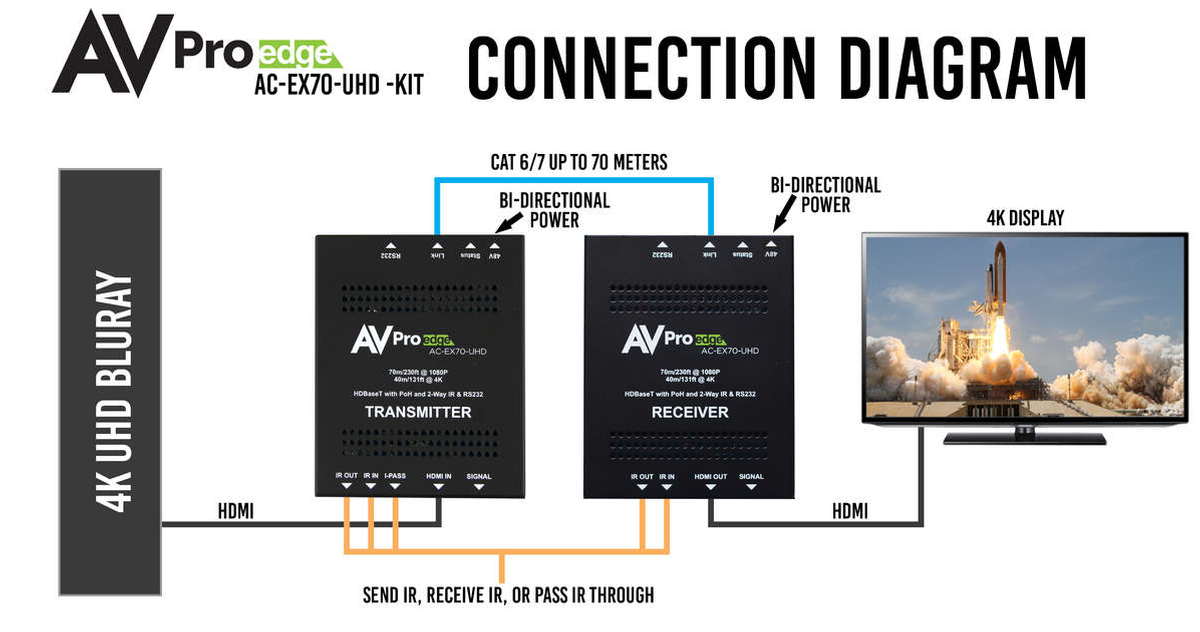

- Flexible power: power either the transmitter or the receiver and the other unit follows.
- ESD protection: added defense for every connected product.
Design and Installation Notes

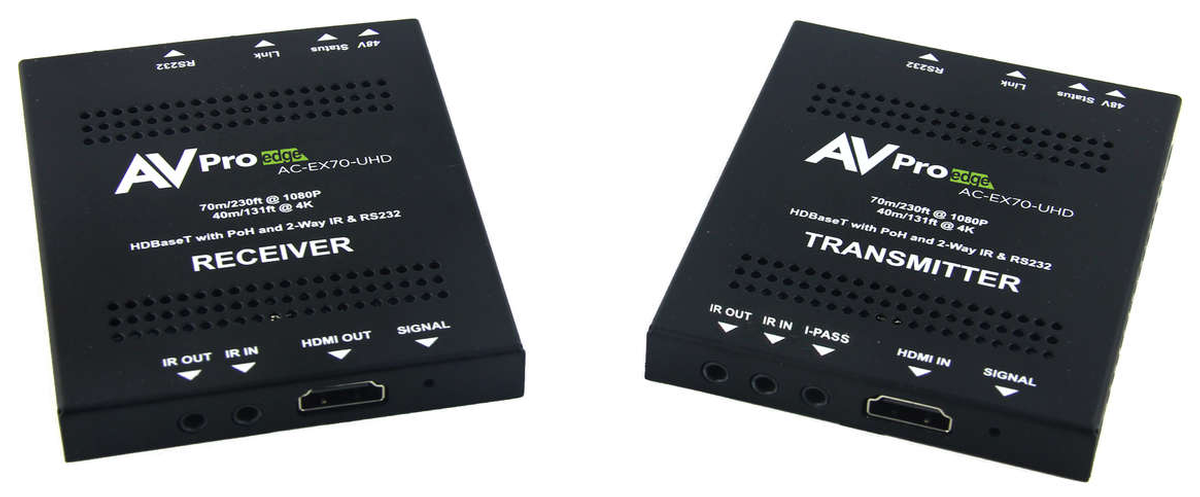

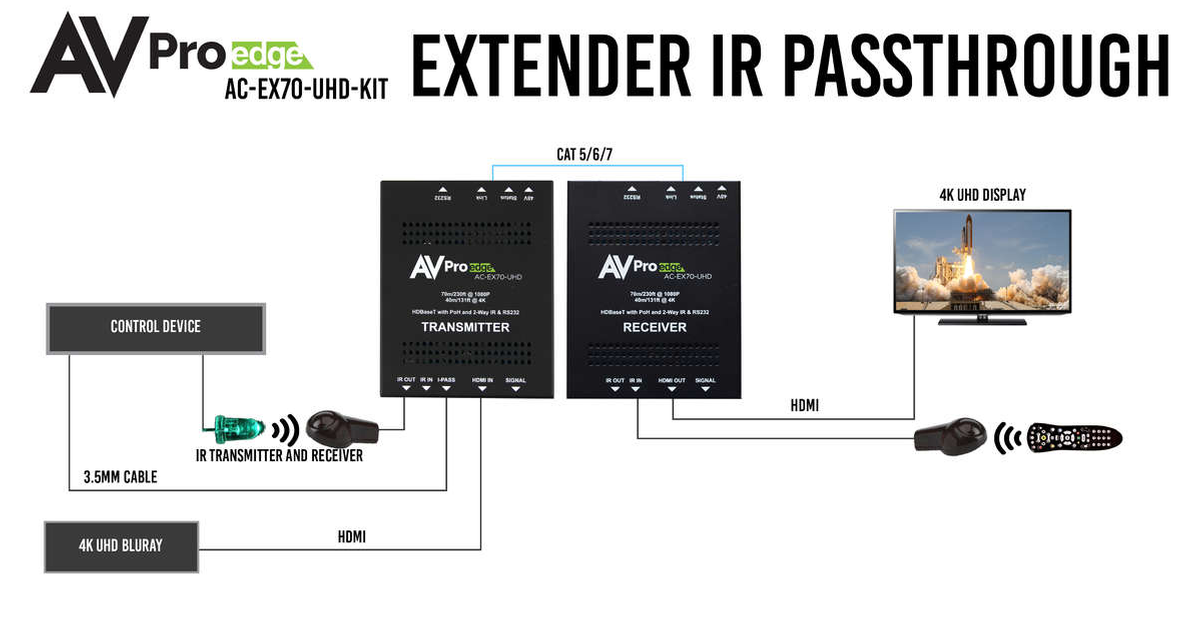

Creative installs are common with this kit. A former IR control wire at a projector location can be reused: retire an old DVI or first-generation HDMI cable, then use the kit's IR pass-through or RS-232 bus to control the new projector.
Patio TVs stay uncluttered because source equipment remains indoors rather than on an outdoor shelf. Its record of reliable, around-the-clock operation is why it remains a mainstay of the AVPro Edge extender lineup.
Typical Applications
A solid choice for classrooms, huddle spaces, retail displays and outdoor patio TVs where the source stays indoors. Need a separate unit? See the AC-EX70-UHD-R receiver or browse HDBaseT kits.
Frequently Asked Questions
How far will the AC-EX70-UHD-KIT send 4K?
Up to 40 meters at 4K60 4:2:0 or 4K30 4:4:4, and up to 70 meters (230 ft) at 1080p over Cat 6a.
Does it support 4K60 4:4:4 or HDR?
No. It transports uncompressed signals up to 10.2 Gbps. For 4K60 4:4:4 and HDR, choose a 18 Gbps ICT model such as the AC-EX70-444-KIT.
Where do I plug in power?
At either end. The kit is bidirectionally powered, so one supply runs both units.
Is there a TAA-compliant version?
AVPro Edge offers a TAA-compliant equivalent of this kit. Contact us if your project requires it.
Specifications
- Sends HDMI with embedded audio, bi-directional IR and RS-232
- LED indicator lights
- Bi Directional RS232 Transport
- ESD protection circuitry
- Cascadable up to 8 times
- Audio: All DTS-HD and Dolby-HD
- Includes: Transmitter, receiver, power supply, 1 IR RX, 1 IR TX, 3.5mm stereo plug to male DB9 for RS-232 to serial port, 3.5mm stereo plug to female DB9 for RS-232 to PC, rack ears
- Dimensions: .47" H x 3.93" D x 3.15"W
- Weight: .7lbs (pair)
- Warranty: 10 years
