3G HD-SDI Video Scaler and Audio Embedder and De-Embedder

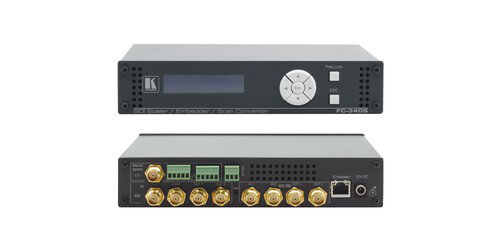

The Kramer FC-340S is a high quality broadcast grade video scaler and audio de-embedder and audio embedder for your digital signals up to 3G HD-SDI. The scaler accepts your SDI and AES/3id signals and at the same time outputs 2 SDI and composite video signals. The SDI output also has embedded audio and is output to both AES/3id and balanced stereo audio outputs.
The scaler can accept up to a 3Gbps data rate and also features a looping video input. Kramer's equalization and reclocking technology allows the signal to go as far as possible with zero signal degradation. The unit can be controlled via the front panel buttons, Ethernet, and RS-232. The unit can be used as a stand alone device or rack mounted with the optionally purchased RK-1 rack mount adapter.
- Inputs: 1 SD/HD/3G HD SDI with loop and 2 AES-3id audio on BNC connectors
- Digital outputs: 2 SD/HD/3G HD SDI with loop and 2 AES-3id audio on BNC connectors
- Analog outputs: 1 composite video on a BNC connector, 2 balanced stereo audio on 5 pin terminal blocks
- Ability to select either the embedded audio or to embed two independent audio groups
- Control: Front panel buttons, Ethernet, and RS-232
- LCD display
- Maximum data rate: 3Gbps
- Input resolutions: 480i at 59.94, 576i at 50, 720p at 59.94/60/50, 1080i at 59.94/60/50, 1080p at 29.97/30/23.98/24, 23.98sF/24sF, 1080p at 59.94/60/50
- Output resolutions: 480i at 59.94, 576i at 50, 72p at 59.94/60/50, 1080i at 59.94/60/50, 1080p at 59.94/60/50
- Includes: Power supply and quick start guide
- Dimensions: 8.45" x 6.42" x 1.72" W, D, H
- Weight: 2.2lbs
- Warranty: 7 years
