4-Pair Cat6a U/FTP LSHF, DGKat, HDBaseT Cable - 328'
The BC-UNIKat from Kramer is 328' unified Cat6a cable. This U/FTP UniKat cable can handle all the latest technology signals with over four individually screen twisted pairs, it will run Kramers DGKat technology, 4K UHD HDBaseT or LAN applications ensuring for an optimal signal performance.

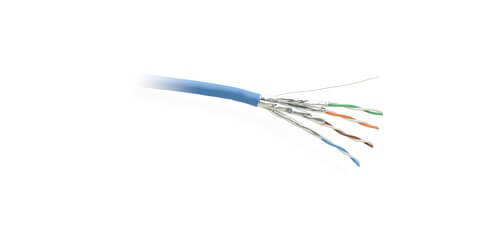

A true quality construction made cable, it features 4 shielded twisted pairs of 23AWG solid copper conductors which are cabled together in an unshielded outer jacket. This cable is Low smoke and halogen free (LSHF), and has been optimized to be used with any of Kramer's twisted pair digital transmitter/receiver sets. Terminate with shielded transmitter/receiver set (DGKat and HDBaseT) and shielded RJ-45 connectors. Comes loaded on wooden drums in 2 varying lengths 328', 1000' and 1640'.
- Length: 328'
- Low Smoke and Halogen Free Jacket
- Conductors: Annealed Copper, 4 x 2 x 23AWG
- RJ-45 Connector: larger diameter 23AWG twisted pair cable requires a special RJ45 connector, Kramer's CCR-RJ45-TP6
- HTBaseT Recommended
- Drain Wire: 90% tinned copper
- Insulation Material: Skin/foam/skin HDPE
- Voltage Rating: 30V
- Warranty: 7 years
