Key Digital KD-IP120POERX

HDMI over IP with POE Receiver - 1080p, H.264 Compression

Satisfaction Guaranteed!
Part #: KD-IP120POERX
Your Price: $480.00
0 out of 5 based on 0 ratings.

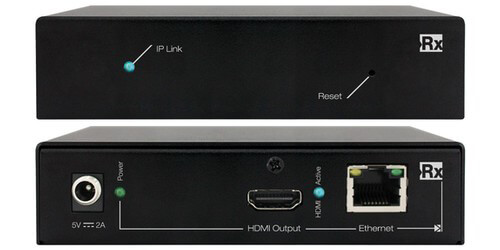

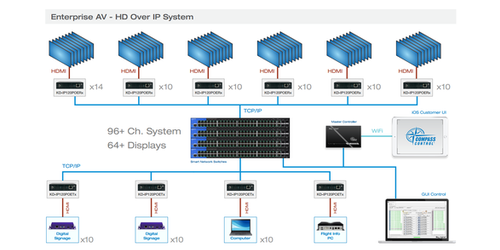

The KD-IP120POERX from Key Digital is an HDMI over IP Receiver with support for PoE (Power over Ethernet). This receiver was designed to be utilized as a way to build an entire IP video infrastructure using IP video components and with PoE it has the ability to carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch. Using this device within the Key Digital ecosystem enables up to 1024 transmitters to be connected with unlimited receivers operating on the same network. Thus enabling a great degree of scalability, depending on the size of the users or clients integration system requirements. This system works by HD video being transmitted from the HDMI input on the receiver over Ethernet at 15Mbps for high-quality video streaming. These signals can be reliably sent up to 400' using CAT5e/6 UTP/STP cable, and since the entire system exists on a network, every component can be configured and controlled over an intuitive software interface or with the free Key Digital iOS app. Alternative Extension Methods can be enabled by low-bandwidth data streaming technology, a Wifi Extender for 100' extensions, or IP over coaxial for up to 1000' signal extension ranges, but at a much lower bandwidth. For larger video installations, multiple units can be mounted in a rack using optional (not included) rack hardware (shelf-mounting hardware is included).

Control of this system can be achieved via UDP and web browser control through PC or Control system via Compass Control MC gateway. It is both Key Digital app ready and Compass Control ready and is fully controllable by RS-232 supported control systems via open API.

  • Inputs: Ethernet RJ-45
  • Outputs: HDMI Type A
  • Connectivity: Can be connected through a network IP switch or point-to-point
  • H.264 Compression: Ideal standard for large video distribution applications
  • Low-bandwidth System: Supports managed 100BaseT or Gigabit network switches
  • Custom System: Add Tx and Rx extenders to an existing system to expand HDMI over IP up to 1024 Tx units and unlimited amount of Rx units
  • HDMI Pass-through: Tx unit support HDMI Pass-through to receive video or extract audio on the transmit side
  • Alternative Extension Methods: Enabled by low-bandwidth data streaming technology - Wifi Extender: Up to 100' / IP over Coaxial: Up to 1000' Resolution Support: Supports up to 1080p@60 (2.25Gbps) and compatible with DVI1.0, HDMI, HDCP1.x
  • Power Over Ethernet: Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch
  • Audio Format: Supports 2ch PCM at 44.1/48kHz
  • Data Stream Bandwidth: < 15Mbps
  • Signal Extension: Up to 400' @ 1080p@60 (2.25Gbps) using CAT5e/6 UTP/ STP cable
  • Web Control Interface: Reduces installation time and provides basic video setup
  • Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID: EDID libraries readily available to provide the best setup per source
  • Deep Color Support: Up to 12 bits/color
  • TMDS re-clocking: Support for long HDMI runs using Key Digital HDMI cables
  • Licensing: Fully licensed and compatible with all HDMI and HDCP technologies
  • Control: Key Digital app ready, Compass Control ready, Fully controllable by RS-232 supported control systems via open API
  • Power Supply: 5v DC, 2A
  • Dimensions: 4.7 x 3.1 x 1.2"
  • Weight: 0.6 lbs
  • Included Accessories: Shelf-Mount L Brackets
  • Warranty: 3 years
