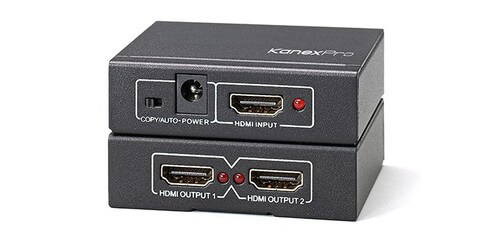

KanexPro SP-HD1X24K

4K/30 UHD HDMI 1x2 2-Port Splitter - HDCP

Satisfaction Guaranteed!
Part #: SP-HD1X24K
Your Price: $49.95
0 out of 5 based on 0 ratings.

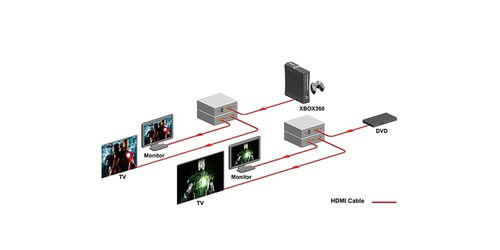

The KanexPro SP-HD1X24K 4K 1x2 HDMI Distribution Amplifier is a 4K30Hz splitter that has been designed to duplicate one HDMI source to two displays without loss of signal integrity or resolution quality. Featuring Ultra HD 4K format on the HDMI distribution amplifier ensures users outstanding and brilliant picture quality four times that of 1080p/30Hz. This quality made splitter is HDCP compliant and backwards compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices, thus allowing it to be used in your current setup that may not be fully 4K ready, but at the same time, ready to grow with you when wanting to upgrade into 4K UHD resolution standards. Supporting you now, but ready for tomorrow, this cost effective yet high-performance distribution amplifier comes in a small compact enclosure, is CEC compliant, will support computer resolutions up to WUXGA (1920x1200@60Hz) and comes with its own power supply and is backed by a 1 year warranty from KanexPro.

  • Input: HDMI
  • Outputs: 2 x HDMI
  • Supported Resolutions: Interlaced: (50&60Hz): 480i, 576i, and 1080i / Progressive: (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K
  • Computer resolution up to WUXGA (1920 x1200@60Hz)
  • 12-bit per channel (36-bit all channel) Deep color
  • Input DDC Signal: 5 volts p-p (TTL)
  • HDCP & CEC compliant
  • Maximum Single Link Range: 4K x 2K
  • Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
  • CEC Pass through enabled
  • Vertical Frequency Range: 50/60Hz
  • Video Amplifier Bandwidth: 2.97 Gbps
  • External Power Supply: 5V DC@ 1A
  • Power consumption (Max): 5W
  • Dimensions (LxWxH): 2.51" x 2.36" x 0.78"
  • Weight: 0.27 lbs
  • Includes 5V USB to DC Power Supply
  • Warranty: 1 Year
