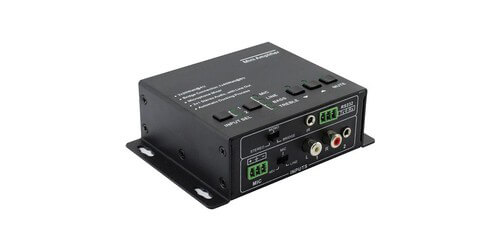

KanexPro AP2DBL

Mini 2-input Audio Amplifier w/ Mic Mixer, Class D Amp - EQ Control

Satisfaction Guaranteed!
Part #: AP2DBL
Your Price: $229.95
Quantity:
0 out of 5 based on 0 ratings.

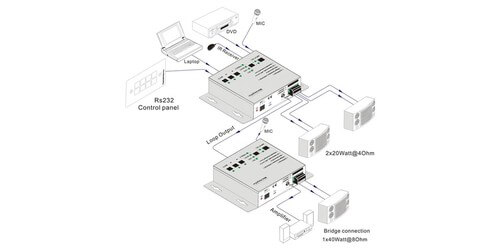

The AP2DBL Mini 2-input Audio Class D Amplifier with Mic Mixer and Equalizer Control from KanexPro is a simple yet powerful device that delivers 2x20 Watts at 4 Ohm default output with built-in volume/bass feature. This unit supports dual mono-output with 2 stereo audio selectable inputs. The builtin microphone mixer features independent volume control with balance switching and support balanced/unbalanced signals. There is a bridge connection that is supported by switching the amplifier to be 1x40 Watt at 8 Ohms as well.  Additionally the MIC input supports 48V phantom power, and the MIC port has a balanced switching suppress option. The AP2DBL has two stereo audio inputs, which are switchable by a button, remote, or RS-232, equally volume/bass/treble are all controllable by the buttons on top or via RS-232.

This Mini Audio Amplifier is mainly used during lectures, house of worship centers and various musical events where mic mixing together with equalizing audio is critical.

  • Audio Input: 2 stereo audio (RCA), 1 MIC
  • Output: Amplifier, stereo audio
  • Input Impedance for Inputs 1&2: >10K Ohms Frequency Response Input: 20Hz - 20KHz
  • Frequency Response Output: CMRR >70dB@20Hz-20KHz
  • Signal to Noise Ratio: 80dB at maximum output
  • Bandwidth: 20Hz - 25KHz
  • Stereo Channel Separation Input: >75dB@20Hz to 20KHz Stereo Channel Separation Output: THD + Noise 1%(1KHz), 0.3%(20KHz) at nominal level
  • Voltage Gain: 32dB
  • Mic Input Impedance: 48V: 35 Kilo Ohms
  • Mic: 10 Kilo Ohms
  • Line: 75 Kilo Ohms
  • Convection cooled, anti-static case design
  • LED indicator, for power and operating status
  • Internal Universal power adaptable (100-240 volt AC, 50/60Hz)
  • Mic Audio Detection Delay: < 1ms
  • Common Mode Rejection Ratio: >70dB (20Hz- 20KHz)
  • Power Output: 2x20 Watts (4 Ohms)
  • Control: RS-232 Serial, 9-pin female D connector
  • Power consumption: 3.6 Watts
  • Dimensions: 1.5" x 3.78" x 3.45" (HWD)
  • Weight: 0.67 lbs
  • Warranty: 3 Year
