VGA and Audio to HDMI Converter - 1080P
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.

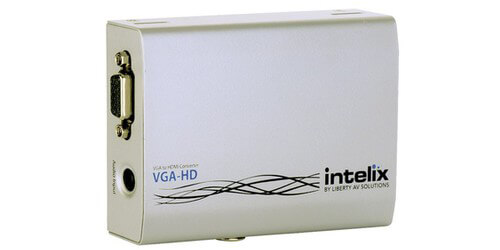

The Intelix VGA-HD is a format converter for converting your analog VGA wiith optional audio to a digital signal that outputs HDMI. The Intelix VGA-HD features built-in EDID tables that pass common resolutions up to 1920 X 1080P with stereo audio and 1280 X 720P with stereo audio back to the source device.
The VGA-HD also features dynamic EDID compatibility function. The unit reads the EDID information from a destination device, compares the accepted resolutions of the destination device to a compatibility table stored on the VGA-HD, and passes modified EDID information back to the source device. The modified EDID information will only contain video resolutions that are contained in both the compatibility table on the unit and the destination device EDID.
Installation is easy, adjust the DIP switched to your preferred settings, connect the HDMI to the output, the VGA and optional audio to the input, and plug in the power. You now have a reliable solution to convert your analog source to digital with embedded audio and the highest quality resolution.

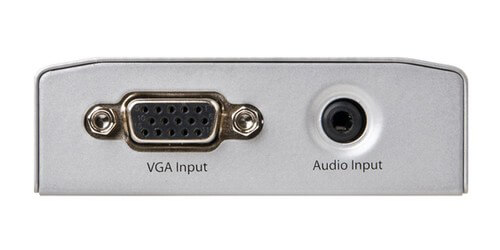

- VGA Input: One (1) Female HD15
- Audio Input: One (1) 3.5 mm TRS

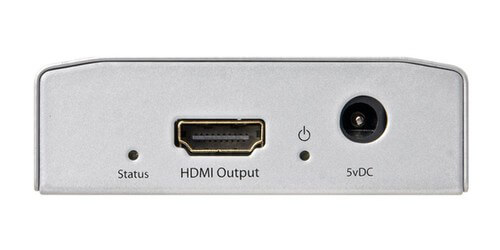

- HDMI Output: One (1) HDMI Type A Receptacle Connector
- Video Input Resolutions: Deep Color 36/30/24 Bit at 1080p
- Audio Input Format: Analog stereo audio
- Status and power LED lights
- Includes: Power supply and screw driver
- Warranty: 2 years
