Test Generator for HDMI Devices
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.

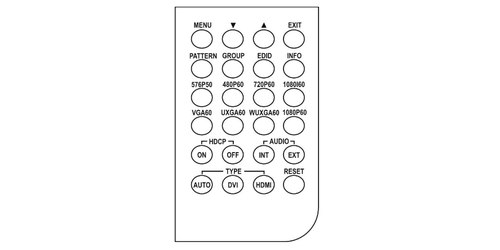

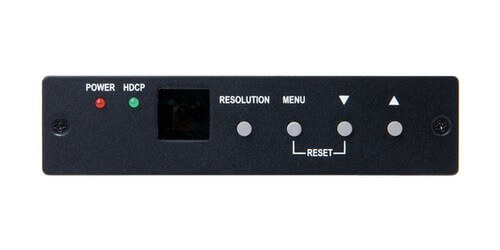

The Intelix HD-TG is a compact test generator designed to test your HDMI devices, it can also test DVI devices with a simple adapter. The HD-TG can test embedded audio, both internally and externally generated, and HDCP functionality allowing users to verify proper operation of the video, audio, and security functions of an HDMI display. Use the front panel buttons or the included remote to operate the device.
Test patterns include color bars, gray scale, black/white lines, gradual, grid, HDCP, H pattern, cross center, motion pattern, and purity checks.
- Test patterns: Color bars, gray scale, black/white lines, gradual, grid, HDCP, H pattern, cross center, motion pattern, and purity checks
- Resolution: Up to 1080P and WUXGA

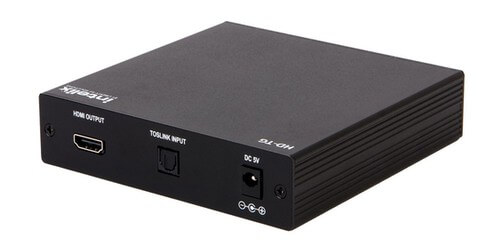

- Audio input: Toslink
- Dimensions: 1.2" x 4.9" x 4.9"
- Weight: .72lbs
- HDCP compliant
- Warranty: 10 years
- Includes: Power supply, remote control
