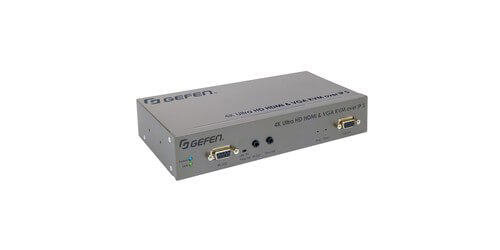

4K Ultra HD HDMI and VGA KVM over IP Sender
Featuring the Gefen EXT-UHDV-KA-LANS-TX 4K60 4:2:0 Ultra HD HDMI and VGA KVM over IP Sender. This device extends the 4K HDMI and VGA signals as well as USB, IR, RS-232, and 2-way audio over LAN (Local Area Network). It also supports resolution up to 4K30 4:4:4 as well as HDCP 2.2 and 1.4, and LPCM digital and High Bit Rate HBR lossless audio.

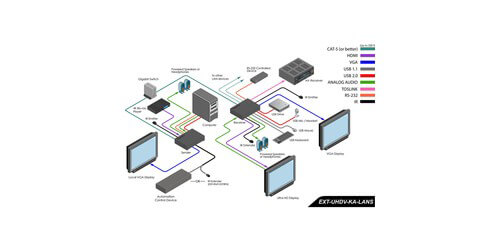

System configuration is quick and automated when this Sender is used with the EXT-CU-LAN Matrix Controller (sold separately). When this unit is connected with the EXT-CU-LAN (sold separately) it enhances network security by separating the AV networks and control. This unit can be daisy-chained with additional receivers (EXT-UHDV-KA-LANS-RX) via the built in 3-port Gigabit switch on each receiver. In digital signage applications, the ability to cascade receivers essentially removes the requirement for a cable to be connected directly to the main network switch, which extends the range far beyond the limits of a point-to-point video distribution system.
To control this Sender the user has control options such as the web server interface, front panel buttons, UDP, Telnet, and the Gefen Keyboard Switching Controller software. This 1U tall, half-rack-width sender can be mounted by way of surface mounting, using the Gefen EXT-RACK-1U-GRY rack tray (sold separately), or can be placed on a shelf. Another option is to use the included IR Extender module to hide this unit in an equipment closet or behind a display. Ideal applications of this device include restaurants, sports bars, or in education, retail, corporate, and hospital settings.

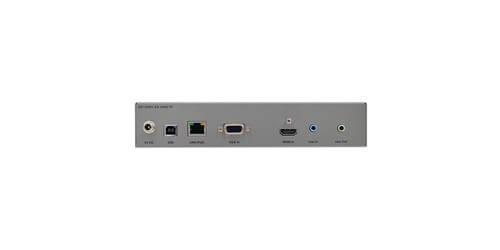

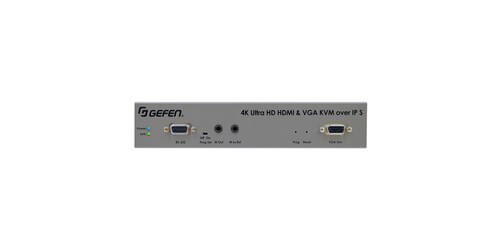

- Input: 1x HDMI, 1x VGA
- Output: 1x VGA
- Resolutions: 4K60 4:2:0
- Line Input/Output: 3.5mm mini-stereo jack
- USB Host Interface Port: 1x USB Type B
- RS-232 Port: 1x DB-9
- IR In/Ext/Out: 3.5mm mini-stereo jack
- Ethernet Ports: 1x RJ-45, shielded, PoE
- Link Indicator: 1x LED, green
- Power Indicator: 1x LED, blue
- Power Supply Jack: 1x 5V DC, 2.5mm pin and 5.5mm barrel, locking
- Power Requirements: 5V DC or PoE
- Power Consumption: 8W
- MTBF (Tx/Rx): 50000 hours
- Dimensions (w/o connectors or feet, WxHxD): 8.4" x 1.7" x 4.3"
- Weight: 1.7 lbs.
- Warranty: 3 years
