4x1 Multiview Seamless HDMI Switcher and 1080P Scaler
The Gefen EXT-HD-MVSL-441 is a 4 HDMI input and 1 HDMI output switcher, scaler, and multiviewer. Plug in your 4 HDMI inputs and then output your HDMI to your HD display, the output can scale to a max resolution of 1080P. The switcher also provides multiviewing, you can have up to 4 sources on 1 screen. The windows on the screen can be displayed up to a quad pattern however you do not have to have them fixed, you can have them anywhere on the screen and in whatever size you want. Each screen can be scaled and the switching is fast and seamless. You can control the unit from a web page, RS-232, front panel buttons, or IR with the included remote control.

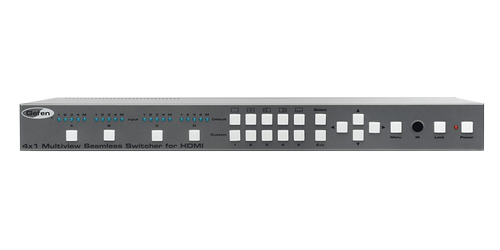

The front of the unit provides easy control options with 5 common pre-sets, as well as 5 additional pre-sets that can be customized to your configurations. Audio from any of the four HDMI sources can be selected for playback via IR, RS-232, or IP.
The Gefen EXT-HD-MVSL-441 is a perfect choice when you have an all HDMI application that needs perfectly scaled 1080P video with fast seamless switching, as an added benefit you have complete control of the 4 windows on 1 screen making it ideal for several types of applications.
- Inputs: 4 HDMI
- Outputs: 1 HDMI
- Integrated 1080P scaler
- Integrated multiviewer
- HDCP compliant
- Control: Web page, RS-232, front panel buttons, or IR
- LAN connection for set up and control
- Locking power supply
- Warranty: 2 years
- Includes: (4) 6' locking HDMI cables, (1) 6' DB-9 cable, 1 power supply, 1 IR extender, 1 IR remote, 1 pair of rack ears
- 20 LED input indicator lights
- 10 pre-sets, 5 standard and 5 configurable
- Dimensions: 16.9" x 1.7" x 7.9" (1RU) and includes rack ears
- Weight: 7lbs
