6x2 4K Ultra HD HDMI Switcher - Roku Ready

Discontinued Product
This product has been discontinued.
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
0 out of 5 based on 0 ratings.

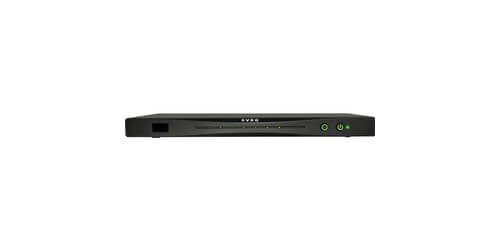

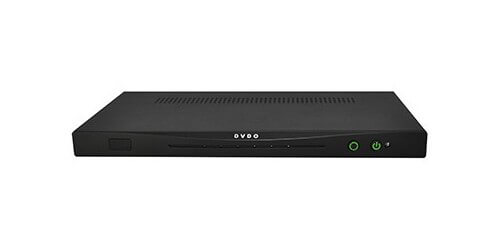

Introducing the DVDO Quick6R (DVDOQUICK6-ROKU), a 6x2 Roku ready 4K Ultra HD Switcher that allows for Roku streaming content and output to two 4K video streams. This device can be used with an optional (not included) Rock Streaming Stick connected through the switchers MHL interface, giving users the ability to access a wide variety of streaming content. In addition to 4K60 4:2:0 video support, this switcher is also compatible with 3D and audio return channel (ARC) signals. With 6 HDMI inputs you have multiple options for connecting high-definition devices. Two HDMI outputs are built-in, which allows you to connect to two external displays. Digital coaxial and optical outputs are also on-board for connecting to an external audio system. A remote with Roku control buttons is included with the switcher. Making this a perfect switcher for use in bars, restaurants, and small business type applications, where users want the ability to utilize Roku streaming and their wide range of channels and premium subscription services sent to multiple displays

Additional benefits for the Quick6R include InstaPrevue technology that provides live on-screen previews of all your inputs and allows you to visually choose what you want to watch. This switcher also uses InstaPort technology to deliver virtually instantaneous switching, that provides an authenticated link with each input at all times. Picture in Picture capabilities allows users to watch two video signals at once, and the ability to select on-the-fly which one you listen to with dynamic audio switching. The switcher also features auto switching capabilities that works by automatically detecting and switching to the corresponding inputs as connected devices are powered on and off. The Quick6R also allows your TV to send multi-channel audio over the Audio Return Channel (ARC) connection to your AVR via digital S/PDIF.

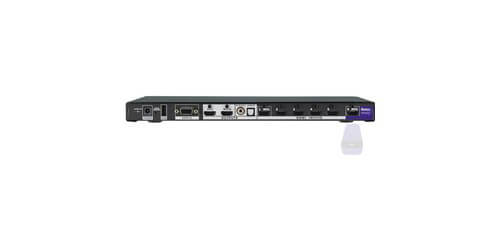

  • Inputs: 6 x HDMI (includes 2 shared MHL Inputs, one with extra power to support Roku Stick)
  • Outputs: 2 x HDMI, 1 x Digital Coaxial, 1 x Digital S/PDIF Optical
  • Resolutions Supported: Up to 4K30 and 4K60 4:2:0
  • Ports: 1 x Serial (automation), 1 x Power
  • Audio Format: Up to DTS-HD MA, Dolby TrueHD formats
  • Audio Return Channel (ARC) and 3D Support
  • Automatic setup when inserting the Roku stick
  • Silicon Image technology
  • AVR compatibility modes
  • Mirror mode
  • InstaPrevue
  • InstaPortS
  • Picture-in-Picture, including dynamic audio swapping DTS-HD Master Audio and Dolby TrueHD support
  • Serial Port for automation control
  • USB port for firmware updates
  • Power Requirements: 100 - 240 VAC, 50/60 Hz
  • Power Input 12 VDC, 3 A
  • Power Consumption (Active) 6 W (no MHL devices)
  • 22 W (2 MHL devices)
  • Power Consumption (Standby) <1 W (no MHL devices)
  • Dimensions (WxDxH): 12.4 x 6.5 x 1"
  • Included Accessories: Remote Control and 12V Power Adapter
  • Warranty: 1 Year
