Home > Distribution Amplifiers -> Cat5 -> 2X8 -> Avenview -> HDM-C5SP-8SR 2X8 Cascading Distribution Amplifier over Single CAT5

Avenview HDM-C5SP-8SR

2X8 Cascading Distribution Amplifier over Single CAT5

Satisfaction Guaranteed!
Part #: HDM-C5SP-8SR
Regular Price: $599.00
Instant Savings: -$17.97
Quantity: $581.03
0 out of 5 based on 0 ratings.

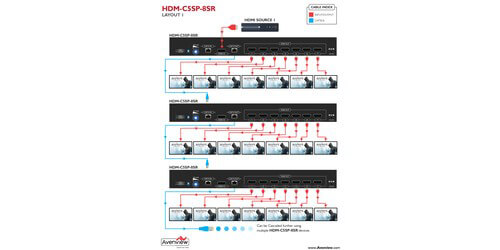

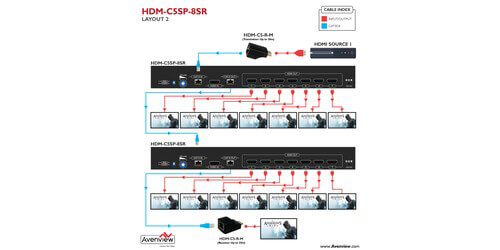

The Avenview HDM-C5SP-8SR is a 2x8 Distribution Amplifier that offers the ability to cascade multiple units together, providing for a flexible solution for high-definition video and high-quality audio transmissions to multiple locations over longer distances. Being cascadable, the distribution amplifier will allow you to extend HDMI compliant displays virtually anywhere as the 2-input HDMI sources (only 1 can be used at a time) can be duplicated and distributed to up to 8 HDMI enabled displays using the very cost effective Cat5/5e cables and RJ-45 to HDMI mini extenders HDMI-C5-R-M (sold separately, not included).

This device is both HDCP and HDMI 1.3c compliant, and is unique in the fact that is acts as a 2x1 HDMI Switch and 1x8 HDMI over Cat5 Splitter. It also features a built-in equalization where the input HDMI cable can be extended up to 66' in length under Full HD, and make the over transmission distance far better than regular HDMI splitters or matrix switches that are available in today's competitive Pro A/V distribution market. This device also supports pure unaltered uncompressed 7.1 ch digital HDMI over LAN cable transmission, and supports default HDMI EDID giving it the ability to learn the EDID of the displays it is connected with. Comes with 2 rack mounting ears, a power supply, and is backed by a 3 year warranty from Avenview.

  • Acts as a 2x1 HDMI Switch and a 1x8 HDMI over Cat5 Splitter
  • Inputs: HDMI & RJ-45
  • Outputs: RJ-45, 7x HDMI
  • HDMI 1.3c & HDPD Complaint
  • Video Bandwidth: 6.75Gbps
  • Resolutions: Up tp 1080p@60Hz
  • Input Range: Up to 50' using HDMI cables
  • Extends up to 200' (720p / 1080i) of output CAT5/6 cable
  • Outputs Range: Up to 50' using HDMI cables
  • Audio Supported: Surround Sound (up to 7.1 channel) or stereo
  • Silicon image chipset embedded for best quality, compatibility and reliability
  • Regenerates HDMI signal
  • Supports default HDMI EDID and has the ability to learn the EDID of the displays
  • Allows for Cascading
  • Power Supply: 5V 4 ADC
  • Power Consumption: Max 13W
  • Included Items: HDM-C5SP-8SR HDMI over Single CAT5 Cascading Distribution Amplifier, 2 x Rack-Mounting Ear, Power Adapter (5 VDC, 4 A), User's Manual Warranty: 3 Years
