Aurora QXT-700-W-B

7" In-Wall Touch Panel Quad Core IP HD, 1GB Ram - Black

Discontinued Product
This product has been discontinued.
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
0 out of 5 based on 0 ratings.

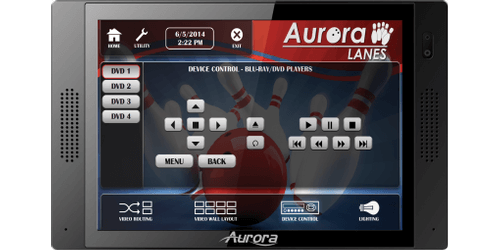

The QXT-700-W-B from Aurora is a 7" Quad Core IP HD In-Wall Touch Panel Controller. This device is on the leading edge as one of the first platform agnostic Quad Core IP HD touch panel control systems. The touch panel has a 2D and 3D graphics engine that offers brilliant 1080p H2.64 streaming decoder that provides a powerful solution for complex graphics video, ensuring a completely immersive user experience. Making this ideal for use in conference rooms, educational facilities, and digital signage type applications. The QXT-700-W-B has been designed to mount into a standard 2 Gang box, and was engineered with a very vibrant 1280 x 800 native resolution touch screen with a 170 degree viewing angle. Aurora has designed this touch screen to truly stand out in the every growing crowd of room controller touch screens, by focusing more on user friendly features and functionality over looks, even though this device does deliver on a very aesthetic and sleek look. Rather than focusing on making a device look amazing they have spared no expense in the features this unit comes with. Further enhancing the experience of the QXT-700-W-B this device has stereo speakers, stereo digital microphones, light sensor, proximity sensor, and IR Learner. The QXT-700-W-B is a very powerful all in one solution for all your presentation and automation needs.

Other amazing features of the QXT-700-W-B from Aurora include:

  • Quad Core Processor 1GHz per core
  • 1GB 1066 DDR Ram / 8GB Flash Memory
  • 2D/3D Graphic Accelerators
  • 1080p 60Hz H.264 Decoder
  • Two Bidirectional RS-232
  • WACI Event Manager
  • IP Control Engine, Web Server, FTP, Browser
  • 24bit Color Depth / 300nits / 500:1 Contrast
  • Two IR / Serial Ports (TX only RS-232)
  • Two I/O with A/D
  • USB 2.0
  • 10/100/1000Mbps LAN with PoE

The QXT-700-W-B from Aurora is a truly unique and user friendly touch panel controller that operates at very fast processing speeds, has a very high amount of memory, and was designed with the end user in mind. This device also comes backed by a 3 Year warranty from Aurora.

- POE Power Supply NOT included, please order separately-

  • Display: 7" LCD Panel
  • Color: Black
  • Resolution: 1280 x 800 (16:10 aspect ratio)
  • Touch Screen: Capacitive
  • Processor: 1GHz Quad Core Cortex A9
  • Memory: 1GB 1066 DDR3, 8GB Flash
  • Stereo Microphone and speakers
  • Proximity and Light Sensor
  • 2D/3D Graphic Accelerators
  • 1080p 60 Hz H.264 decoder
  • IP control engine, web server, FTP, browser
  • WACI event manger
  • I/O: 2 x I/O's with A/D
  • Two IR / serial ports (TX only RS-232)
  • Lan: 10/100/1000Mbps LAN with PoE

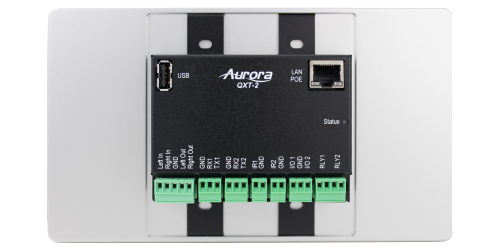

  • Audio Connections: 1 x Stereo line in , 1 x Stereo line out , 2 x Front panel speaker, 2 x Front panel microphone
  • Serial Ports: 2 x RS-232
  • Expansion Ports: 1 x USB 2.0 host
  • IR Leaner: (1) IR receiver window on front panel
  • Brightness: 450 nits (cd/m2)
  • Contrast: 900:1
  • Color Depth: 900:1
  • Viewing Angle: 85 horizontal, 85 vertical
  • Power: PoE (Power over Ethernet) - POE Power Supply NOT included, please order separately-
  • Warranty: 3 Years
