ATEN VS98A

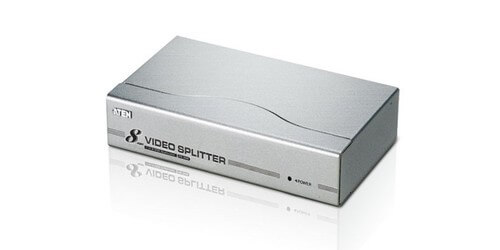

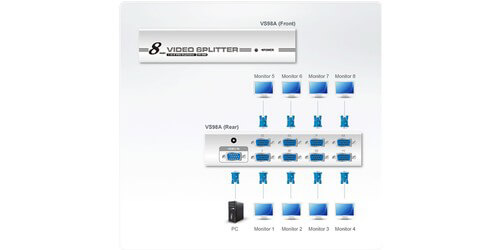

This VS98A 8-Port VGA Video Distribution Amplifier from ATEN has 300MHz video bandwidth and up to 98.5' of transmission distance. It is capable of splitting a single VGA video signal to eight output displays and supports resolutions up to 1920x1440. This device also has cascading support up to three levels which allows a single video signal to relay across up to 512 video displays while sustaining the highest quality image possible. This distribution amplifier is an ideal application for enhanced video broadcasting in public, business or classroom settings.

• Input: 1 x HDB-15 Male (Blue), Max. distance 5.9'
• Output: 8 x HDB-15 Female (Blue)
• Bandwidth: 300MHz
• Resolution: Up to 1920 x 1440
• Max. Distance: Up to 98.4'
• Compatible (Port 1 only): DDC, DDC2, DDC2B
• Cascadable to 3 levels - provides up to 512 video signals
• Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
• Power Connectors: 1 x DC Jack
• Power Consumption: DC9V, 5.5W
• Included Accessories: Power Adapter, User Guide
• Housing: Metal
• Weight: 1.52 lbs.
• Dimensions (LxWxH): 7.87" x 2.96" x 1.73"
• Warranty: 3 years

Downloads:

• ATEN VS98A Specifications (PDF)
• ATEN VS98A Manual (PDF)
