DVI HDBaseT-Lite Extender Kit Tx & Rx - 229'

Satisfaction Guaranteed!
Part #: VE601
Your Price: $416.00
0 out of 5 based on 0 ratings.

The VE601 from ATEN is a DVI HDBaseT-Lite Extender Kit with Transmitter and Receiver Unit. This quality made DVI range extending kit has been designed to extend the range of a DVI 1080p display up to 229' over Ethernet Cable at 10.2Gbps. Using HDBaseT technology this kit will even support 1920 x 1200 media up to 131' away, thus offering a simple, adaptable, and cost effective solution for Pro Audio Video installation. Making this unit a perfect solution for A/V installations that require video signal interference protection, such as in medial and military installations. It comes in a easy to mount design, offers a slip resistant DC jack locking mechanism, and can be installed virtually anywhere while ensuring great product performance reliability.

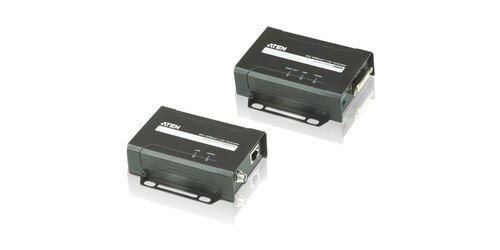

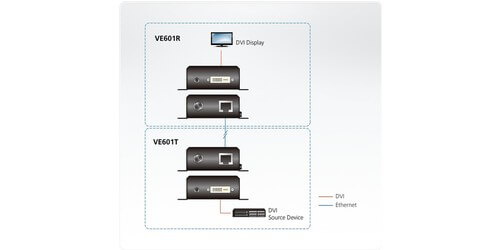

  • This Kit includes the ATEN VE601T Transmitter and VE601R Receiver

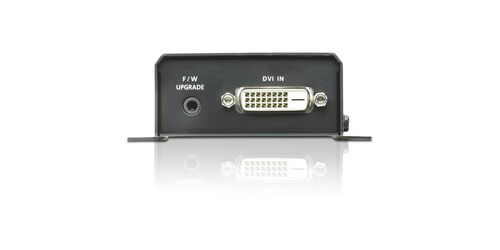

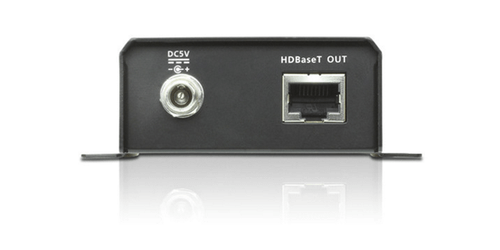

  • Transmitter Connections: Inputs: DVI-D / Outputs: HDBaseT

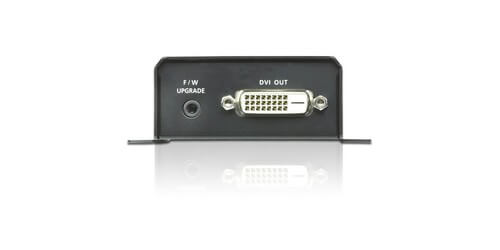

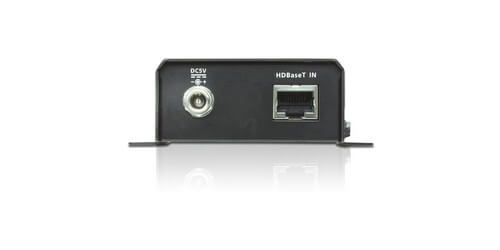

  • Receiver Connections: Inputs: HDBaseT / Outputs: DVI-D
  • Bandwidth: 10.2Gbps
  • Max Resolution Range: 1920x1200 114' (Cat 5e/6) / 131' (Cat 6a) / 1080p@ 196' (Cat 5e/6) / 229' (Cat 6a)
  • Compliance: DVI (3D, Deep Color), HDCP Compatible
  • Max Pixel Clock: 340 MHz
  • HDBaseT Anti-Jamming resists signal interference during video transmission using HDBaseT technology
  • Rack-Mountable
  • Power Connectors on Tx & Rx: DC locking jack
  • Transmitter Power Consumption: 5V DC, 4.23W
  • Receiver Power Consumption: 5V DC, 1.85W
  • Weight of Tx & Rx: 0.55lbs
  • Dimensions (L x W x H): 4.02 x 3.43 x 1.18" for each device
  • Included Accessories: 2 x Power Adapter for each unit
  • Warranty: 3 Years
