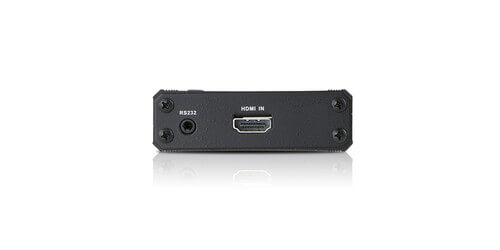

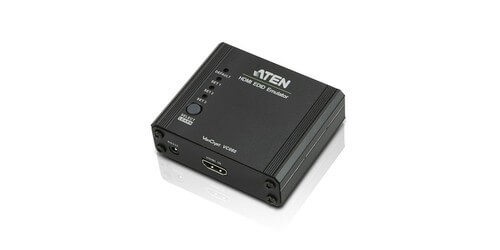

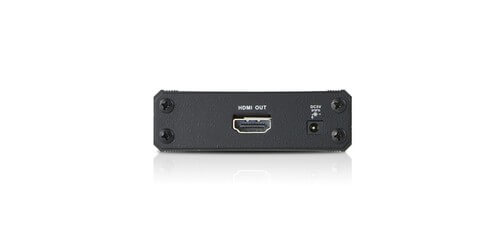

HDMI EDID Emulator w/ RS-232

Satisfaction Guaranteed!
Part #: VC080
Your Price: $123.00
0 out of 5 based on 0 ratings.

The VC080 HDMI EDID Emulator from ATEN is a quality made product that was designed to emulate and store the EDID of a video display. It provides constant and reliable EDID data for the HDMI source device to efficiently optimize video resolutions up to 1080p. This EDID emulator is a handy tool that helps ensure a smooth viewing experience for any video installation. Users have the choice of three flexible methods for selecting and switching between EDID modes: Default Mode, Programming Mode, and Learning Mode. Additionally it comes with an straight forward user friendly EDID Wizard that allows users to quickly view, store, and manage EDID settings. The top of the unit features LED indicators for video source devices, it support wide screen modes, has a signaling rate up to 2.25 Gbits in support of a 1080p display, and will support hot-plugging. The unit is a non-powered device, however if the video source is not receiving enough power an external power cord should be connected.

  • Inputs: HDMI
  • Outputs: HDMI
  • Port: RS-232 Supported Resolutions: 1080p
  • EDID Settings: EDID Mode: Default / Learn / Customized (EDID Wizard support)
  • Automatically manages EDID communication between connected devices
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • LED indication of video source devices
  • Supports wide screen
  • Supports hot-plugging
  • Power Connector: DC Jack
  • Power Consumption: 5V DC, 0.15W
  • Housing: Metal
  • Dimensions (LxWxH)
  • 3.11 x 3.06 x 0.96"
  • Included Accessories: RS-232 Configuration Cable, USB to DC Power Cord, User Instructions
  • Warranty: 3 Years
