USB PS2 KVM Adapater Module with Local Console

Satisfaction Guaranteed!
Part #: KA7171
Your Price: $255.00
0 out of 5 based on 0 ratings.

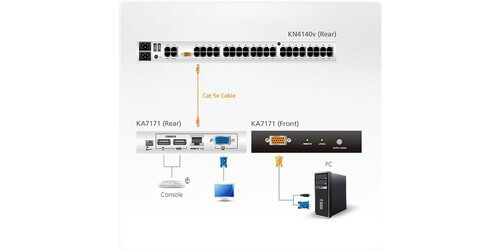

The ATEN KA7171 is a USB-PS/2 KVM Adapter Module with Local Console. This unit provides a full console connection locally in a KVM over IP Switch or Matrix KVM installation. It will allow a PS/2 or USB server to be connected to the switch via Cat5e/6 cable and provides an extra console via USB keyboard, USB mouse, and monitor to use for extended local operations. In addition, the Privileged Console Control function prevents remote users from operating the device when a local administrator requires full control of the server - reducing conflicts and unwanted operations.

Additional Features or the ATEN KA7171 Include:

  • Cat 5e/6 cable connects the device and KVM switch
  • Supports computers with PS/2 or USB keyboards and mice
  • Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
  • Pushbutton operating mode selection for privileged console control
  • Built-in ASIC for greater reliability and compatibility
  • USB overcurrent detection and prevention
  • Built-in ESD protection and surge protection
  • High resolution video – up to 1920 x 1200@60Hz
  • Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
  • Easy to install – no software required - connecting cables to the devices is all it takes

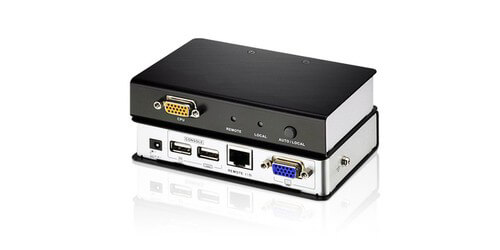

  • Console Port Connectors: 2 x USB Type A Female (White), 1 x HDB-15 Female (Blue)
  • KVM Port Connectors: 1 x SPHD-18 Female (Yellow)
  • Power Connector: 1 x DC Jack (Black)
  • Pushbuttons: Operating Mode Selection: 1 x Pushbutton
  • LED Indicators: Local: 1 (Green) / Remote: 1 (Green)
  • Emulation: Keyboard / Mouse: PS/2, USB
  • Video Resolution: Up to 1920 x 1200 @ 60Hz, DDC2B
  • Power Consumption: DC 5.3V/3W
  • Housing: Metal
  • Weight: 0.73 lb
  • Dimensions (L x W x H): 5 x 3.41 x 0.98"
  • Included Accessories: 1x Power Adapter, 1x USB-PS/2 KVM Cable, 1x Foot Pad Set (4pcs), 1x User Instructions
  • Warranty: 3 Years
