ATEN CS261

2-Port DVI Computer Sharing Device (USB)

Satisfaction Guaranteed!
Part #: CS261
Regular Price: $437.50
Instant Savings: -$87.50
Quantity: $350.00
0 out of 5 based on 0 ratings.

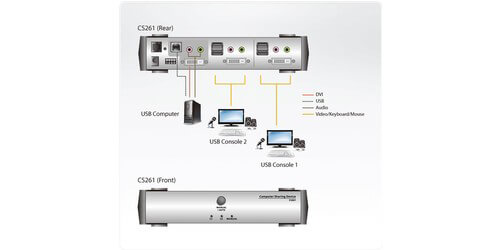

Featuring the ATEN CS261 2-Port  USB DVI Computer Sharing Device. This device offers a multi-user / single-task experience that allows 2 user console (monitor, USB keyboard, USB mouse, speakers and microphone) to share the use of one computer. This setup is perfect for smaller office environments as all programs, files, and resources on the connected computer can be accessed and shared by both users which eliminates the need for a complex or expensive network setup. Users can operate and access the single computer on a one at a time basis with optional security features that can block the video and audio of the console that is not in use. In addition the CS261 provides a convenient OSD (On Screen Display) that will notify each user when the other console is accessing the computer. This in turn allows both users to know at a simple glance whether or not the PC is available for use.

The CS261 will support resolutions from 1080p all the way up to 4K/30 (when using a DVI to HDMI cable). This device is HDCP compliant and will support HDCP-enabled devices. Built-in technology includes ATEN's EDID Expert, which works by selecting the optimum EDID settings for smooth power up, high-quality display and use of the best resolution standards across different monitors. Console modes include Auto and Manual functions; Auto-mode allows computer access switching to a console on a first come first serve basis. Where Manual-mode switches console via front panel push button or a hotkey. Additionally this unit will support RS-232 serial commands to switch operation and configuration settings. For security in case a user gets pulled away from the console, a screen saver feature will start-up and block the console's display after a period of inactivity.

  • Computer Connections: 1

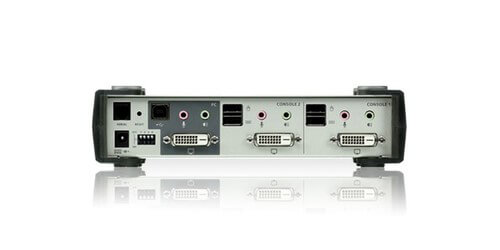

  • Console Port Connectors: 4 x USB Type A , 2 x DVI-D Female, 2 x Mini Stereo Jack (Green), 2 x Mini Stereo Jack (Pink)
  • KVM Connectors: 1 x USB Type B Female, 1 x DVI-D Female, 1 x Mini Stereo Jack (Green), 1 x Mini Stereo Jack (Pink)
  • Video Resolution Supported: Up to 4k/30 is supported when using a DVI to HDMI cable
  • Additional Resolutions: 1080p and 1920 x 1200
  • Supports 2.1 channel stereo sound and high definition audio
  • HDCP Compliant supports HDCP-enabled devices EDID Expert: selects optimum EDID settings for smooth power up, high-quality display and use of the best resolution across different monitors
  • Supports RS-232 serial commands to switch operation and configure settings
  • Multilingual Keyboard Mapping: supports English, Japanese, French and German keyboards
  • Multiplatform Support: Windows, Linux, Mac or Sun
  • Upgradeable firmware to stay current with updates
  • Power Consumption: 5V DC, 4.7W
  • Housing: Metal
  • Dimensions (LxWxH): 8.27 x 3.46 x 2.19" Weight: 1.59lbs
  • Included Accessories: 1x Custom KVM Cable Set, 1x Power Adapter, 1x User Instructions
  • Warranty: 3 Years
