2-Port VGA Computer Sharing Device (USB)

Satisfaction Guaranteed!
Part #: CS231
Your Price: $230.00
0 out of 5 based on 0 ratings.

The ATEN CS231 2-Port VGA is a powerful micro-processor controlled computer sharing device. This multi-user, single tasking device allows 2 users from separate consoles (keyboard, video, mouse) to share the use of a single computer. It has the ability to support USB consoles, as well as USB and PS/2 computers. It features multi-platform support so it is compatible with Windows, Mac, Unix, and Linux operating systems. Console selection is achieved either through manual control or automatic control. A built-in OSD (On Screen Display) informs users when the system is in use, there is private mode for a privileged user for priority use, and a screen saver function when the device is sitting idle. This computer sharing device is compatible with VGA, SVGA and Multisync monitors. Offering true plug-and-play abilities, users simply setup their connections between the console and computer and it is ready to go.

  • Computer Connections: 1

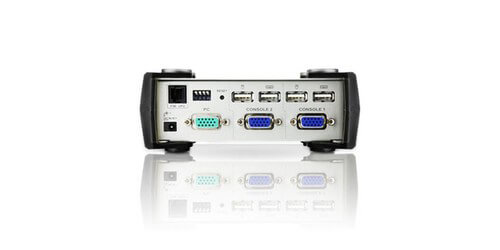

  • Console Ports: 4 USB Type A, 2 VGA (HDB-15)
  • KVM Ports: 1 SPHD-15 (Green)
  • Firmware Upgrade Port: RJ-11
  • Power Connector Port: DC Jack
  • Video: 1920 x 1440
  • Console Selection: Push button
  • Switches: Mode Selection: 1 x Push button, Reset: 1 x Semi-recessed Push button, DIP: 1 x 4 pin
  • Supports USB and PS/2 computers
  • Manual or Auto console selection
  • On-Screen-Display informs user when system is in use
  • No Software required
  • Private Mode for a privileged user
  • Screen saver function
  • Supports VGA, SVGA Multisync monitors
  • Firmware Upgradable
  • Multi-platform Support: Windows 2000/XP/Vista, Linux, Mac and Unix
  • Power Consumption: DC 5.3V, 2.2 W
  • Housing: Metal
  • Dimensions (LxWxH): 5.51 x 3.46 x 2.19"
  • Weight: 1.23lbs
  • Included Accessories: USB KVM Cable 6', Power Adapter, Firmware Upgrade Cable, DIP Switch Sticker, User Manual, Quick Start Guide
  • Warranty: 3 Years
