19" Dual Rail LCD Integrated Console w/ Extra Console port

Satisfaction Guaranteed!
Part #: CL5800N
Your Price: $1,200.00
0 out of 5 based on 0 ratings.

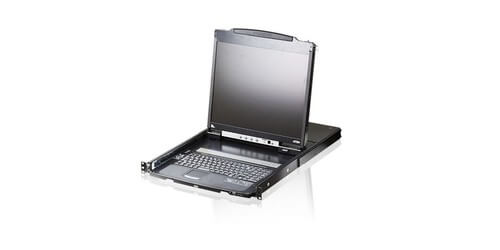

The ATEN CL5800 is a LCD KVM Console that features an integrated 19" LED back-lit LCD Panel, full keyboard, and touch pad, that all comes house in a 1U rack-mountable sliding housing. The CL5800N gives users the ability to control a 16-port KVM switch through an SPHD connect that offers control of up to 16 computers, (more possible via daisy chaining KVM switches through DB-25 port on the KVM switch). This Console has been designed to maximize space in your data center by allowing the keyboard/touch pad modules to slide back to "hide away" when not in use, while the thin profile LCD monitor rotates back, flush against the rack. The CL5800N provides dual interface support by offering external ports for PS/2 or USB keyboard and mouse as well as a VGA monitor port on the rear panel to allow for a second console to be connected.

Additional Features of the CL5800 Include:

  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)

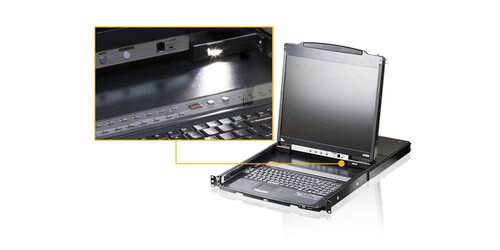

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Standard 105-key keyboard; Sun keyboard emulation
  • Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
  • Compatible with all ATEN KVM Switches and most other KVM switches
  • Adjustable depth to fit within the rack
  • Firmware upgradeable
  • Supports Microsoft Intellimouse (5 keys)
  • Supports Logitech and Microsoft wireless mic


  • Computer Connections: 1 Direct

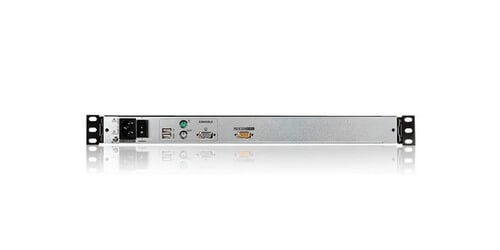

  • Second Console Connectors: 2 x 6-pin Mini DIN for Keyboard and Mouse, VGA for Video
  • CPU Connectors: Keyboard/Mouse/Monitor: 1 x SPHD-18 Female
  • Additional Ports: USB Type A, Power 3-prong AC Socket
  • 19" LCD Console Screen
  • Video (Local): 1280 x 1024 @ 75 Hz, DDC2B
  • Emulation: Keyboard/Mouse: PS/2, USB
  • Supports an external console with either PS/2 or USB connectors
  • Dual interface: Supports computers and KVM switches with PS/2 or USB keyboards and mice
  • LED Indicators: Power On and LCD Power
  • Power Input Rating (Per AC Power Inlet, 50/60Hz): 100-240V AC
  • Power Consumption: 22W / 94 BTU/h, 24W / 96BTU/h
  • Dimensions: 18.8 x 26.7 x 1.73"
  • Weight: 31lbs
  • Included Accessories: 1x Custom USB-PS/2 KVM cable (2L5302UP), 1x Power Cord 6', 1x Grounding Wires 4', 1x Firmware Upgrade Cable, 1x User Instructions
  • Warranty: 3 Years
