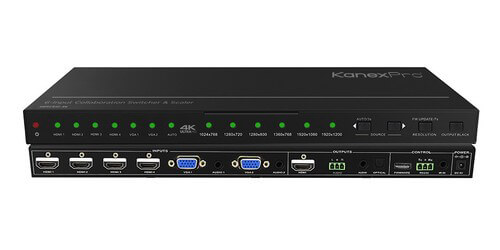

KanexPro HDSC61D-4K

The KanexPro HDSC61D-4K is a 6 input switcher and 1 output 4K scaler, it features 4 HDMI inputs and 2 VGA inputs to cover all your analog and digital needs.  There are 2 audio inputs for the VGA that are then embedded on the audio out.  The integrated scaler is good for resolutions up to 4K and ensures your output via HDMI is always of the highest quality.  Quickly switch between 6 sources via the IR remote, RS-232, front panel buttons, or auto switching.  In auto switching mode the switcher detects the last plugged in signal and automatically switches.  The switcher also offers a smooth seamless transition when switching that doesn't interrupt or distract your presentations.

The switcher/scaler also features 3 audio de-embedders, a 3.5mm stereo, phoenix connectors or a Toslink optical output connector.  The auto switcher supports CEC and is HDCP 1.4 compliant.  A locking power supply and HDMI connectors ensure trouble free use. The included mounting ears make installation easy, while the thin 1.1" size allows it to be installed anywhere.

The KanexPro HDSC61D-4K is a multi-format auto switcher with scaler that is ideal for a wide range of applications, paired with an affordable price makes it perfect.

• Inputs: 4 HDMI, 2 VGA, 2 Audio
• Outputs: 1 HDMI
• Selectable output resolutions up to 4K UHD
• Control: IR remote, RS-232, front panel buttons, or auto switching
• Fast switching
• 3 audio de-embedders: 3.5mm stereo, phoenix connectors or a Toslink optical output connector
• USB port for firmware updates
• EDID management
• CEC
• Bandwidth: 10.2Gbps
• HDMI: 1.4
• HDCP 1.4 compliant
• Locking power and HDMI connectors
• Dimensions: 13.66" x 1.1" x 4.33"
• Warranty: 3 years
• Includes: Mounting ears, power cord, (2) 3-pin terminal blacks, IR receiver, IR remote control

Downloads:

• KanexPro HDSC61D-4K Specifications (PDF)
• KanexPro HDSC61D-4K Manual (PDF)
