3X1 4K HDMI 2.0 Switcher - IR, RS-232, HDCP 2.2, 10.2Gbps

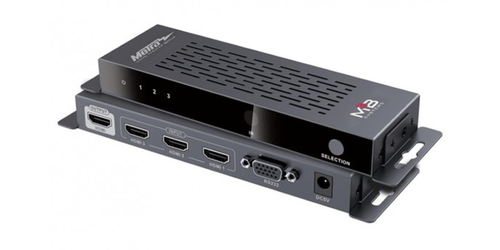

Featuring the Ethereal CS-HDM3X1SW3 HDMI 2.0 3x1 Switcher from Metra Home Theater. This compact HDMI switcher supports HDMI 2.0 specifications, as well as HDCP 2.2 compliant, and can handle high-quality 12-bit video resolutions up to 4K60 4:2:0, with support for 3D and full HD video. The CS-HDM3X1SW3 offers 3 HDMI inputs which makes this unit an ideal solution for simultaneous connect of multiple HDMI devices, such as Set top boxes, DVD players, and Blu-ray players. Control of this unit is achieved via the included IR remote controller, or through a RS-232 enabled serial control unit, such as a computer. It can support standard audio formats and DSD (Direct Stream Digital), as well as HD(HBR) audio. Making this a perfect device for use in security systems, medium sized home entertainment systems, conference rooms, digital monitoring systems, or in digital signage type applications.
- Inputs: 3x HDMI Outputs: HDMI
- Supported Resolution: 12-but full HD video, 3D, and 4K x 2K@30/60Hz
- HDMI 2.0 and HDCP 2.2 Compliant
- Supports: 1080p and 3D Video
- Bandwidth: 10.2Gbps
- Control: RS-232 & IR
- LED Indicators: Power, and 3x Signal
- Input/Output TMDS Signal: 0.5-1.5Vp-p(TMDS)
- Input/Output DDC Signal: 5Vp-p(TTL)
- Audio: Supports standard audio and DSD (Direct Stream Digital) and HD(HBR) audio
- Dimensions (LxWxH): 6.2" x 2" x 0.7"
- Weight: 0.5lbs Included Accessories: IR Remote Control, 5V Power Adapter, User Manual
- Warranty: n/a
