AVPro Edge AC-MX-44HDBT
18Gbps True 4K60 4:4:4, 4x4 Matrix with four HDMI Inputs

Description

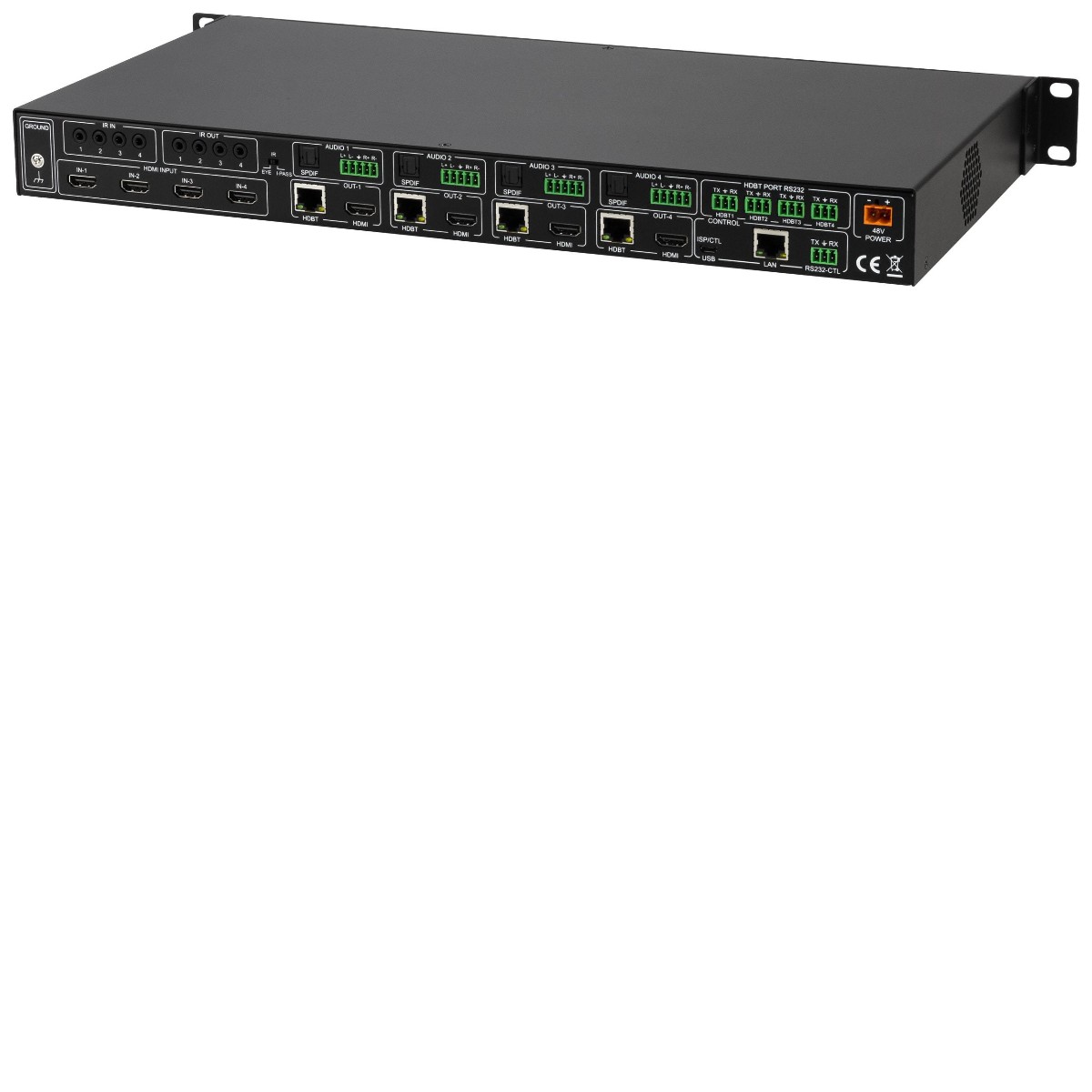

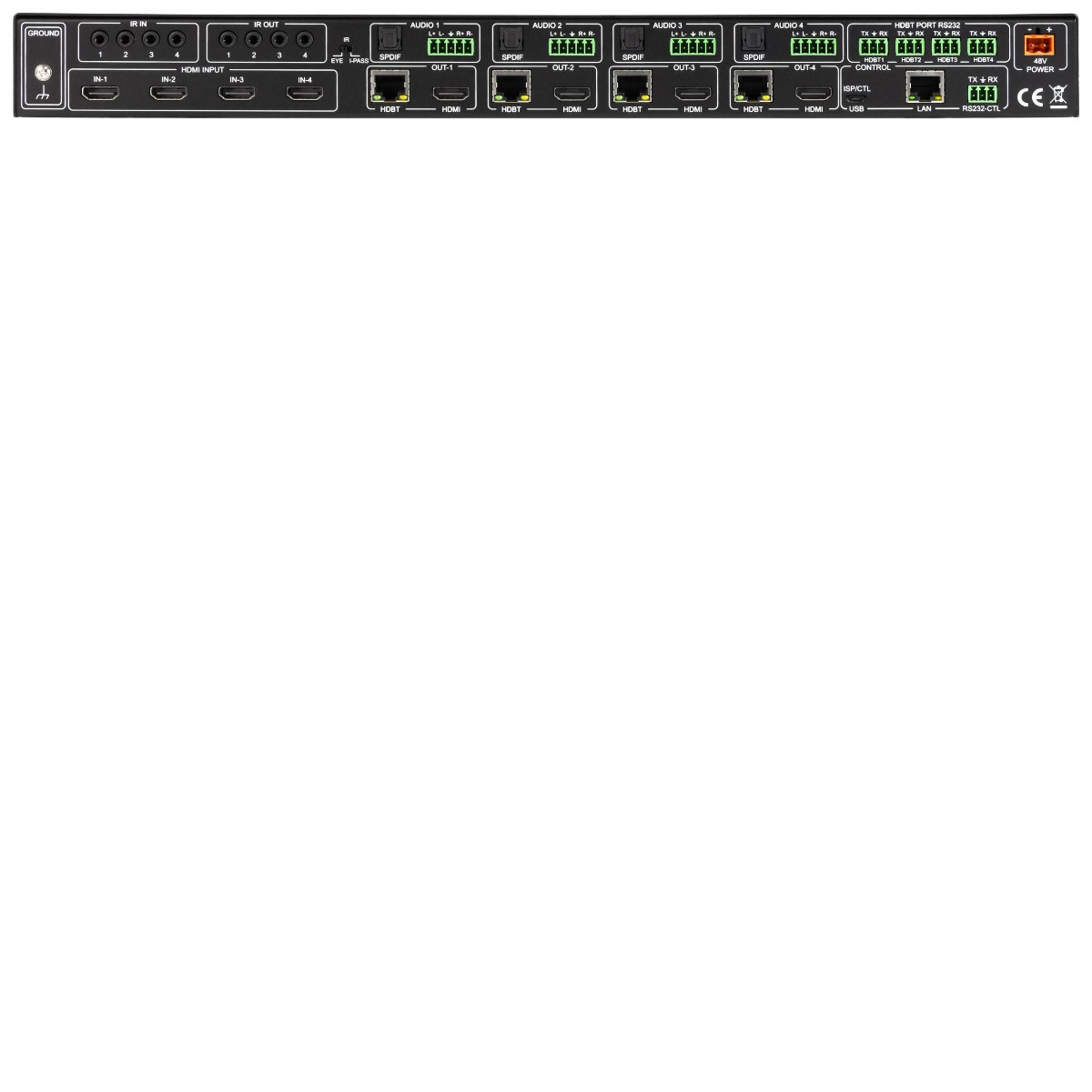

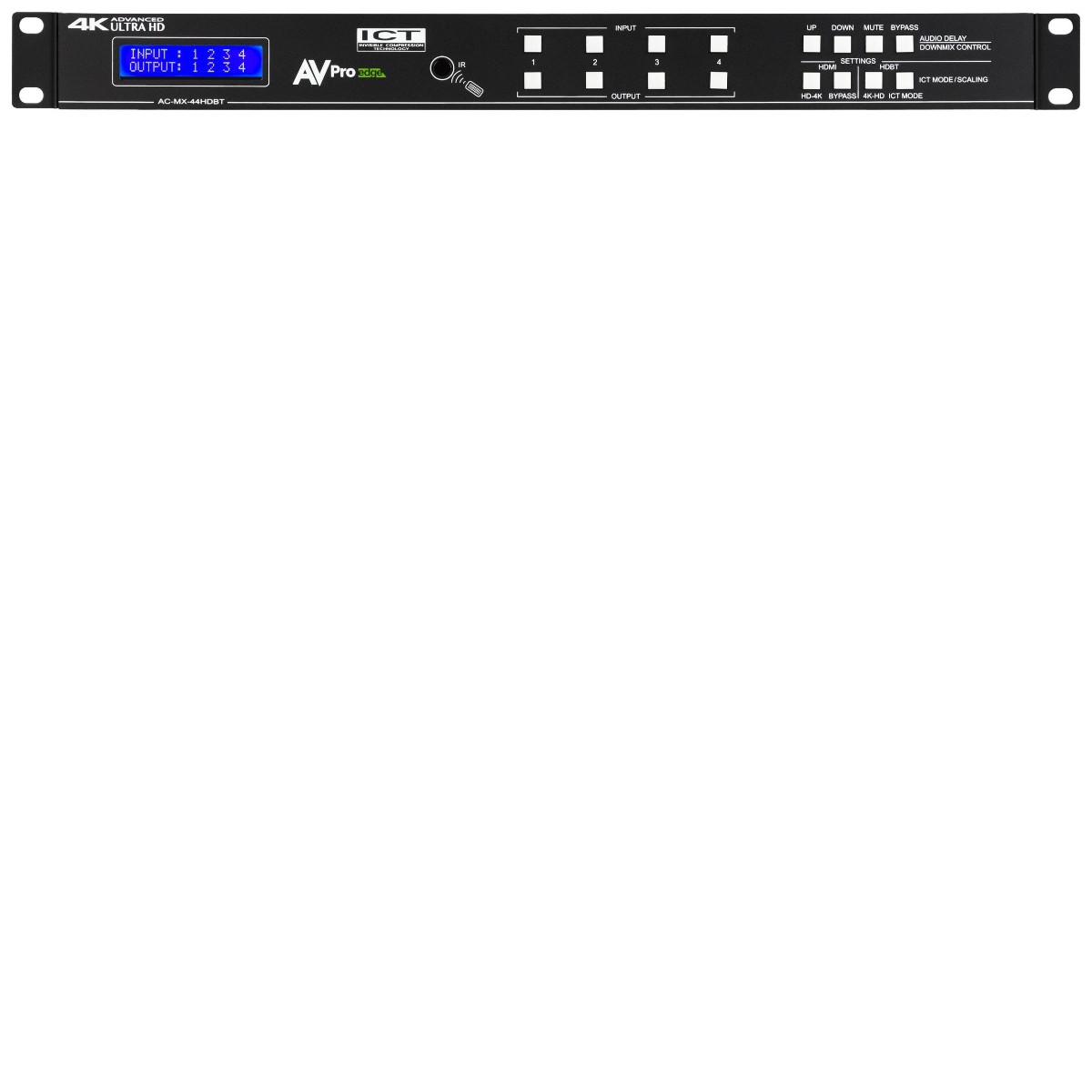

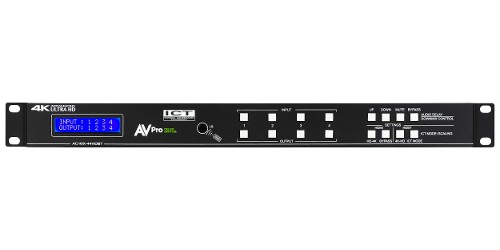

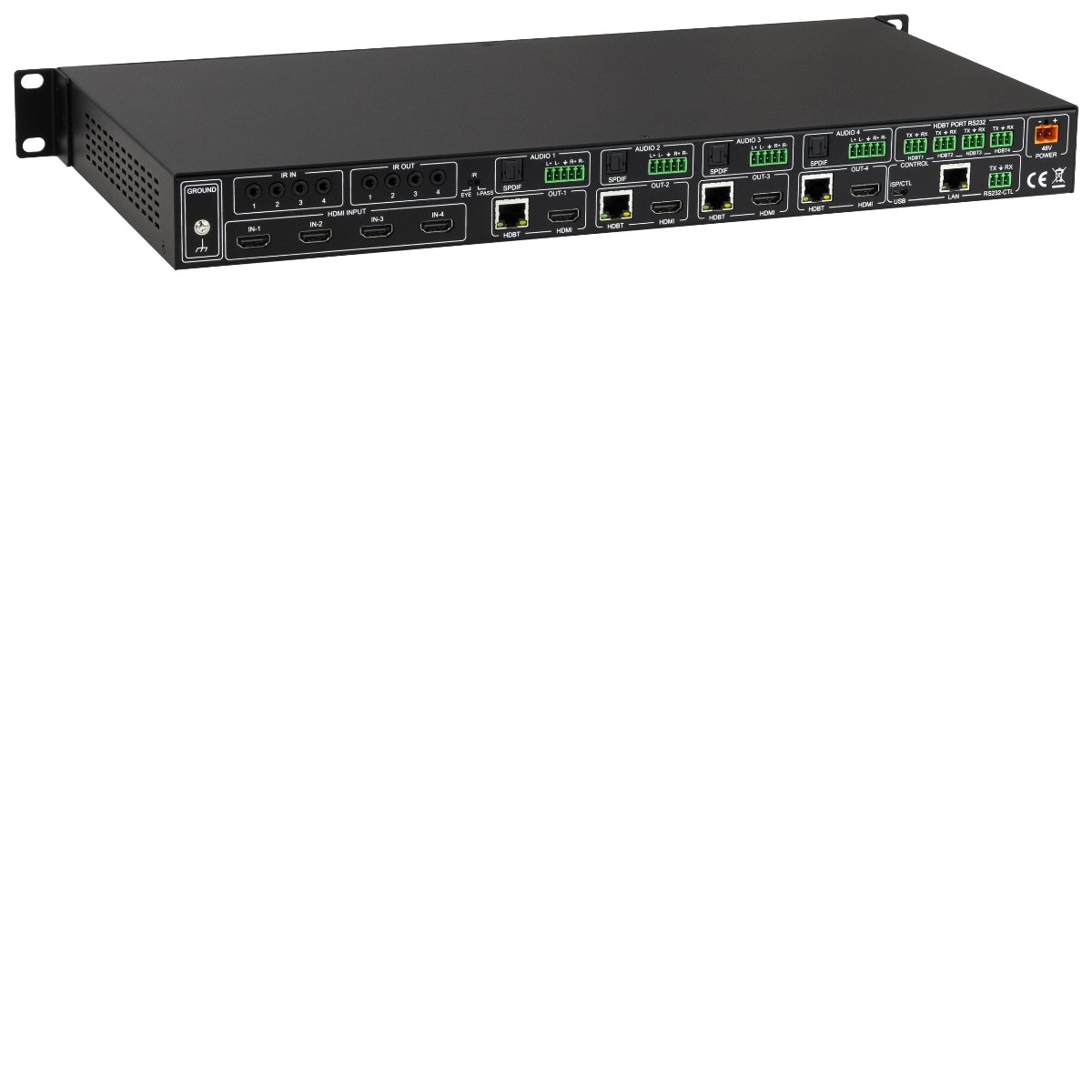

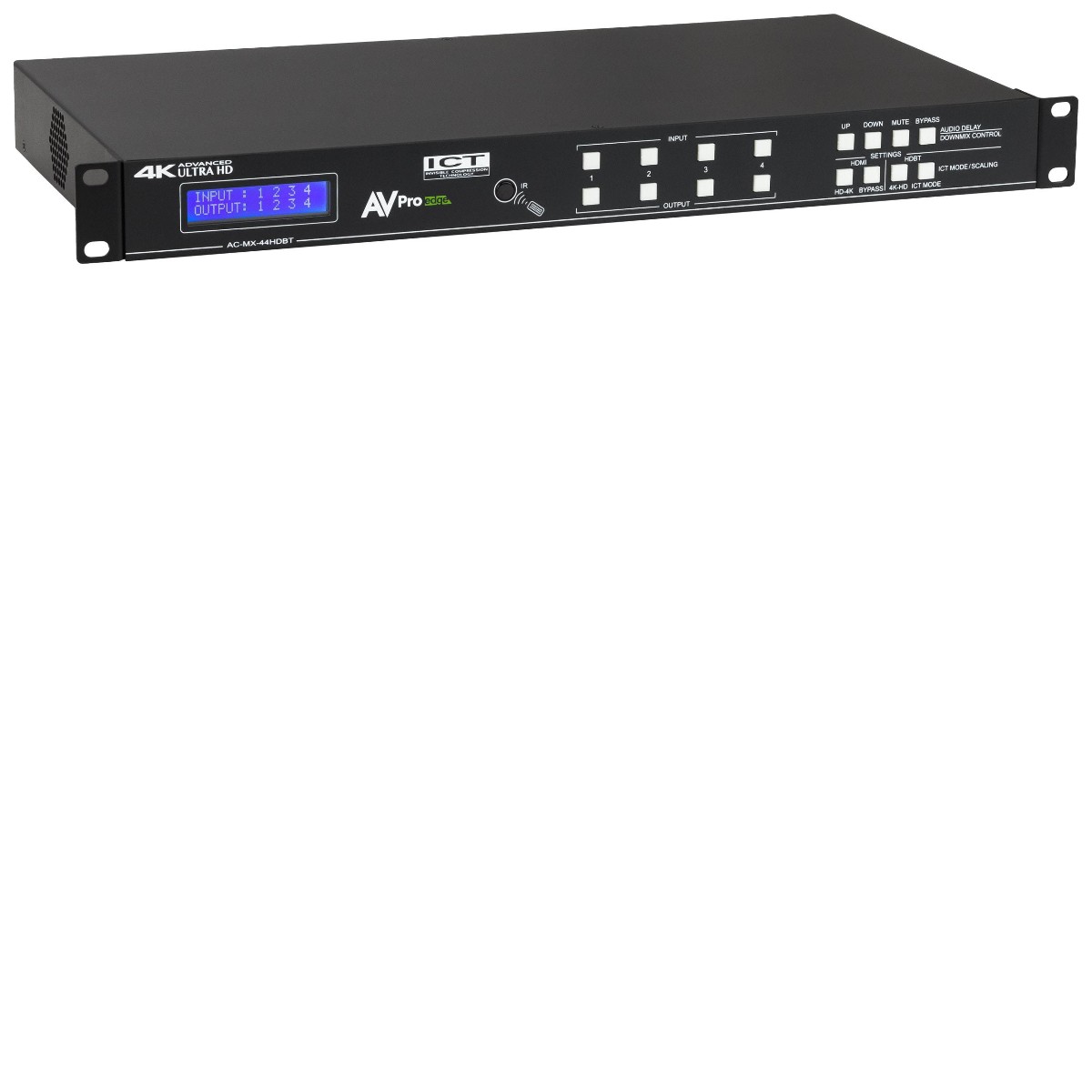

The AVPro Edge AC-MX-44HDBT is a 4x4 matrix switcher with four HDMI inputs and four output blocks, each pairing an HDMI port with an HDBaseT port. The two ports on every output mirror one another, so a local display can connect by HDMI while a remote one receives the same source over category cable.

Any source, whether a Blu-ray or UHD Blu-ray player, satellite receiver, game console or PC, can be routed to any connected display. It is the compact sibling of the 8x8 AC-MX-88HDBT, sized for smaller systems.

Long runs are handled by AVPro Edge's Invisible Compression Technology (ICT) on the HDBaseT outputs. ICT passes signals of up to 18 Gbps through a category cable while preserving all flavors of HDR. Color information, deep color up to 12-bit, and it works with every chroma subsampling type and color space.

In AVPro Edge's side-by-side testing against a direct 18 Gbps cable, evaluators could not identify which display was fed by ICT. Add an AC-EX70-444-RNE receiver at each remote display to complete the link.

Displays that cannot take 18 Gbps are covered by HDBaseT Compatibility Mode (HDBT-C), which converts high-bandwidth signals down to 10.2 Gbps with as little impact on the picture as possible. It is managed per output, so only the runs that need it are down-clocked. Built-in HDMI scalers mean a couple of older displays do not force the rest of the system down from 4K.

Day-to-day problems are solved from the matrix. Adjustable audio delay deals with audio arriving before video. EDID management gives you flexibility across a broad mix of sources, displays, and each HDMI output is equalized, plus amplified so long HDMI cables do not degrade the signal. IR routing and RS-232 support let a control system manage the matrix and connected gear.

Key Features

• 4x4 routing: four HDMI inputs to four outputs, each with mirrored HDMI and HDBaseT ports.
• ICT on HDBaseT: 18 Gbps through category cable with HDR and 12-bit color preserved.
• HDBT-C mode: per-output conversion from 18 Gbps to 10.2 Gbps for limited displays.
• Built-in scalers: keep 4K on capable displays while serving older ones.
• Audio delay and EDID: solve lip-sync and compatibility issues at the source.
• Output equalization: amplified HDMI outputs support longer cable runs.

Design and Installation Notes

Typical system layout: connect up to four sources to the HDMI inputs, then use the HDMI output of any block for a display near the rack and the HDBaseT output for a remote display. Each remote display needs a compatible receiver, such as the AC-EX70-444-RNE for matrix-fed runs or the AC-EX70-444-RNE-P, which includes its own 48V power supply for standalone use. Cat 6a is recommended for the longest runs.

Working with other equipment: scaling on the outputs makes the matrix a good hub when a system mixes new and older displays, and HDBT-C lets high-bandwidth content reach displays or third-party HDBaseT extenders that stop at lower bandwidth. Since, settings are made output by output, one display can remain at full bandwidth while another is down-clocked.

Sizing: choose the 4x4 when you have up to four sources and four displays and you want HDBaseT outputs built in, which removes the need for a separate transmitter at the rack for every remote display. For larger systems, the 8x8 AC-MX-88HDBT offers the same architecture with more inputs and outputs.

Typical Applications

A good match for conference rooms, divisible training spaces, restaurants and bars with multiple screens, and residential media systems. If you do not need HDBaseT outputs, the AC-MX-44 is an HDMI-only 4x4. Browse more 4x4 HDBaseT matrix switchers.

Frequently Asked Questions

Are the HDMI and HDBaseT outputs both live?

Yes. Each output block mirrors its HDMI and HDBaseT ports and both are active at the same time.

Do I need receivers for the HDBaseT outputs?

Yes. Connect a compatible HDBaseT receiver at each remote display, such as the AC-EX70-444-RNE.

What is HDBT-C mode?

HDBaseT Compatibility Mode converts high-bandwidth signals from 18 Gbps to 10.2 Gbps on a per-output basis, which suits displays or extenders that cannot take full bandwidth.

Can it scale 4K down to 1080p?

Yes. Built-in HDMI scalers let you downscale for older displays without dropping the entire system to 1080p.

Specifications

• Full HDR Support (HDR 10 & 12 Bit)
• Dolby Vision, HDR10+ and HLG Support
• HDCP 2.2 (and all earlier versions supported)
• 1080p > 4K Upscaling on HDMI outputs
• 4K > 1080P Downscaling on HDBaseT outputs
• Advanced EDID Management
• IR, RS-232 and LAN Control Options
• Digital Toslink Out (7CH PCM, DD, DTS)
• Balanced Analog Out (2CH PCM)
• Audio Delay for Digital & Analog Out
• HDBaseT Compatibility mode for mixed systems
• Driver Support for Crestron, C4, RTI, ELAN and more
• Extracted Audio Now Supports DD+, DTS Master Audio on Toslink
