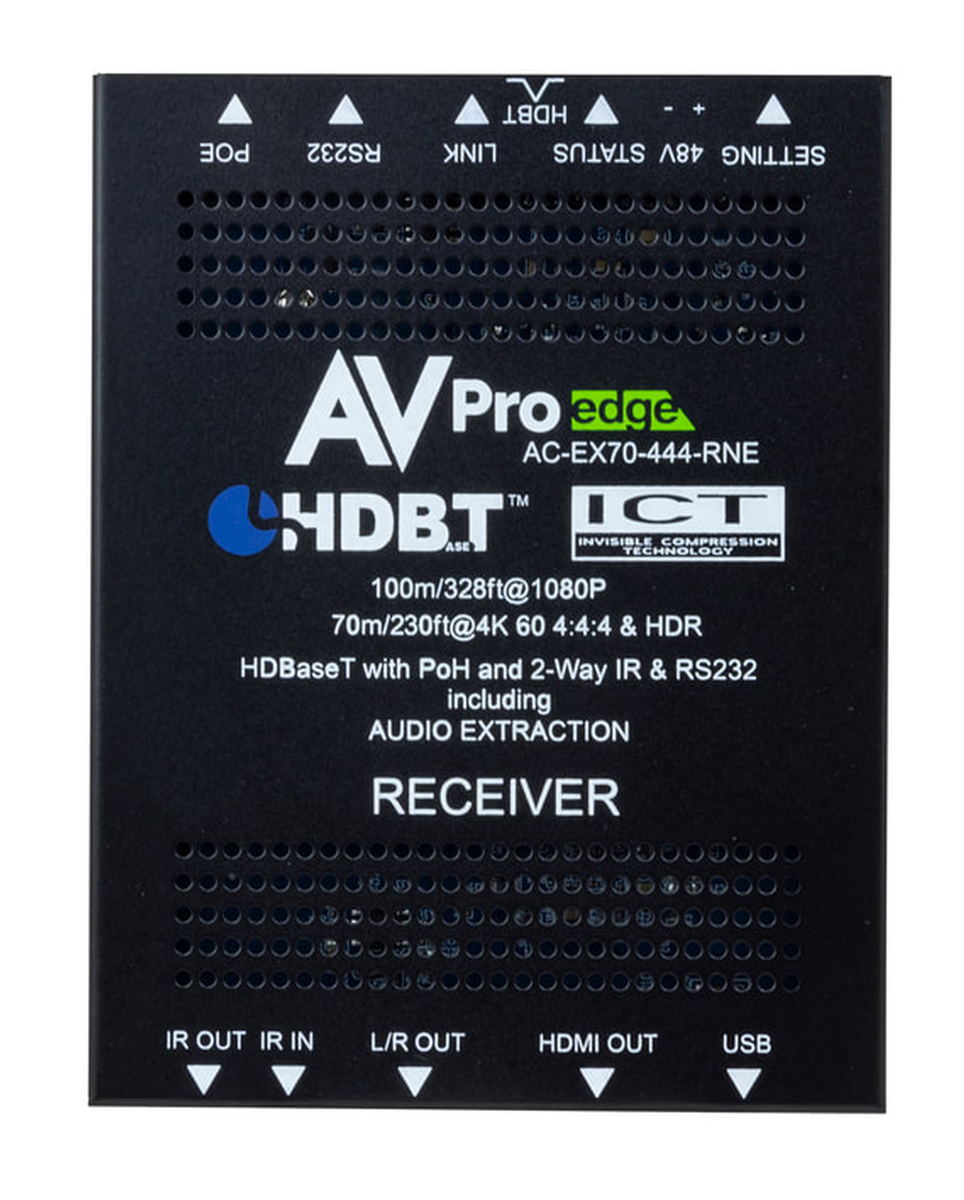

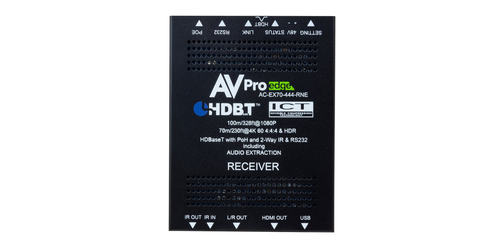

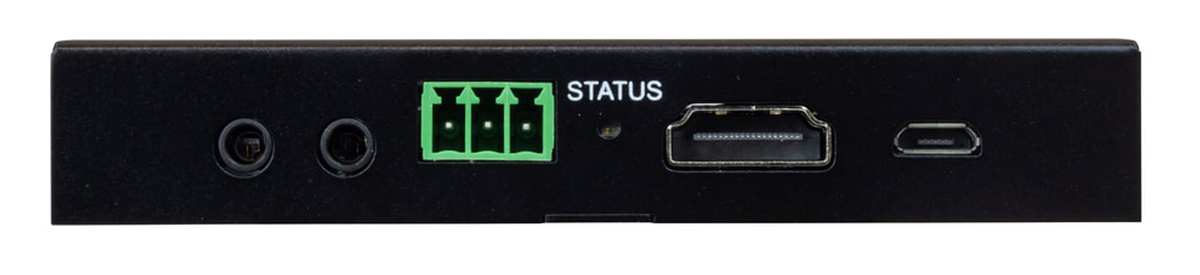

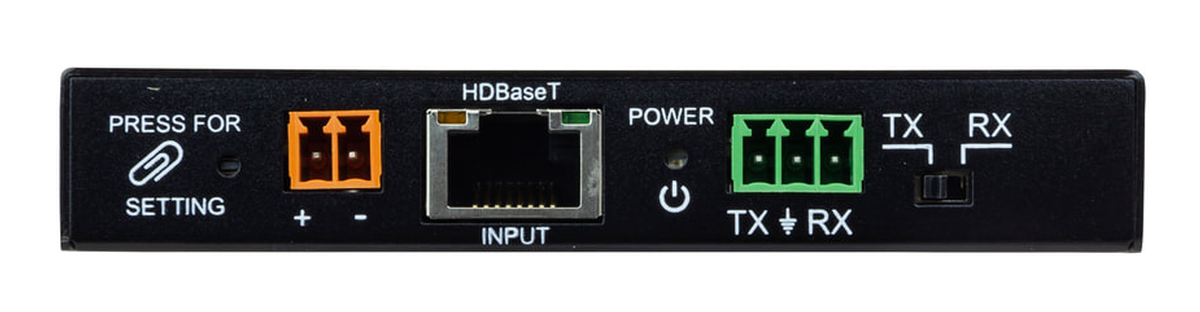

AVPro Edge AC-EX70-444-RNE
4K60 HDMI HDBaseT Receiver, HDR, 18Gbps - 330'
- Range: Up to 330 ft on 1080p and up to 230 ft on 4K60 4:4:4 on CAT6A cabling
- Resolution: Up to 4K60 4:4:4
- 18 Gbps Bandwidth Support
- Supports HDCP 2.2 (and earlier) and 4K UHD
Description
The AVPro Edge AC-EX70-444-RNE is a receiver-only HDBaseT unit built to work with AVPro Edge's HDBaseT matrix switchers. Connect it to a matrix output for 4K60 4:4:4 video with HDR and up to 18 Gbps of bandwidth to a display up to 70 meters (230 ft) away, or 100 meters (330 ft) at 1080p, over standard category cable.
Its slim chassis and rich feature set make it a practical partner for an 8x8 matrix like the AC-MX-88HDBT or a 4x4 matrix like the AC-MX-44HDBT.
AVPro Edge's Invisible Compression Technology (ICT) carries the signal with deep color and HDR metadata intact, avoiding the banding and color shifting that lesser extenders produce.
Supported video includes 4:4:4, 4:2:2 and 4:2:0 chroma, up to 12-bit deep color at 4K, with HDR10, HDR10+, Dolby Vision and HLG. Audio formats include LPCM 5.1 and 7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X, and 2-channel PCM can be extracted without downmixing.
IR and RS-232 are bidirectional, so control signals can travel up to 70 meters in either direction, letting a control system manage sources from the display end or displays from the rack. A built-in test pattern generator helps verify wiring, switcher settings and source viability. If you need a receiver that ships with its own 48V power supply for standalone use, choose the AC-EX70-444-RNE-P.
Key Features
- Receiver for matrix outputs: designed to work with AVPro Edge HDBaseT matrix switchers.
- ICT at 18 Gbps: 4K60 4:4:4 with HDR and 12-bit deep color.
- Distance: 70 m at 4K and 100 m at 1080p on Cat 6a.
- Bidirectional IR and RS-232: control sources or displays from either end.
- Audio: high-bitrate formats including Dolby Atmos and DTS:X, plus 2-channel PCM extraction.
- Test patterns: 1080p and 4K patterns for troubleshooting.
Design and Installation Notes
Video and audio details: the receiver supports resolutions up to DCI 4K (4096x2160), YUV and RGB color spaces (including Rec. 601, Rec. 709, BT2020, DCI and P3 D6500), and deep color up to 16-bit at 1080p and 12-bit at 4K. Chroma subsampling of 4:4:4, 4:2:2 and 4:2:0 is supported. Check the full specifications on the product page before specifying cabling.
Typical Applications

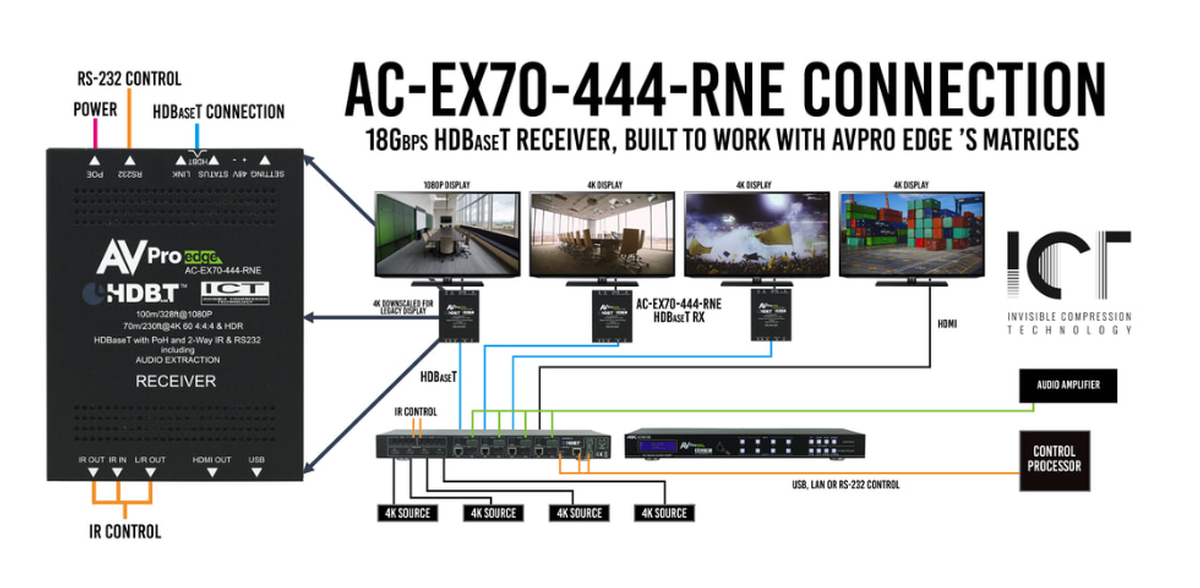

Use one per remote display in boardrooms, classrooms, hospitality spaces and retail zones fed from a central matrix. Browse other HDBaseT receivers.
Frequently Asked Questions
Is the AC-EX70-444-RNE a full kit?
No. It is a receiver only. It pairs with an AVPro Edge HDBaseT matrix output, or you can buy a complete transmitter and receiver set such as the AC-EX70-444-KIT.
How far can it receive 4K?
Up to 70 meters (230 ft) at 4K and up to 100 meters (330 ft) at 1080p over Cat 6a.
Does it need its own power supply?
This model does not include one. The AC-EX70-444-RNE-P version adds a 48V power supply for standalone use.
Can it pass control signals?
Yes. IR and RS-232 are bidirectional over the HDBaseT link.
Specifications
- Advanced EDID Management and Emulate
- Deep Color up to 16-Bit for 1080p, 12-Bit for 4K
- Dolby Vision, HDR10+ and HLG Support
- HDMI Audio Specs: PCM 2- Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos
- Included Accessories: IR TX Unit, IR RX Unit, 2x 3-Pin Terminal Blocks for Audio and RS-232 Ports, Mounting Ears
- Dimensions (WxDxH): 5.19" x 3.94" x 0.69"
- Weight: 0.5 lbs
- Warranty: 10 years
