Liberty AV RG8-CMP-BLK-500
500' Black Microwave and Wireless RF400 RG8 Solid Dual Shield Plenum Cable Reel
Description
Liberty AV's RG8-CMP-BLK-500 is a 500-foot reel of black RF400-type RG8 solid dual-shield plenum coaxial cable. A low-loss 50-ohm RF cable for microwave and wireless applications where the run passes through an air-handling space and code demands a plenum-rated jacket.
Dual-shield RF400 construction rated to 6.0 GHz

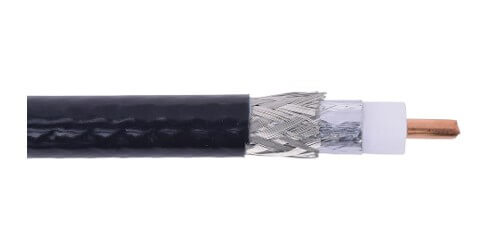

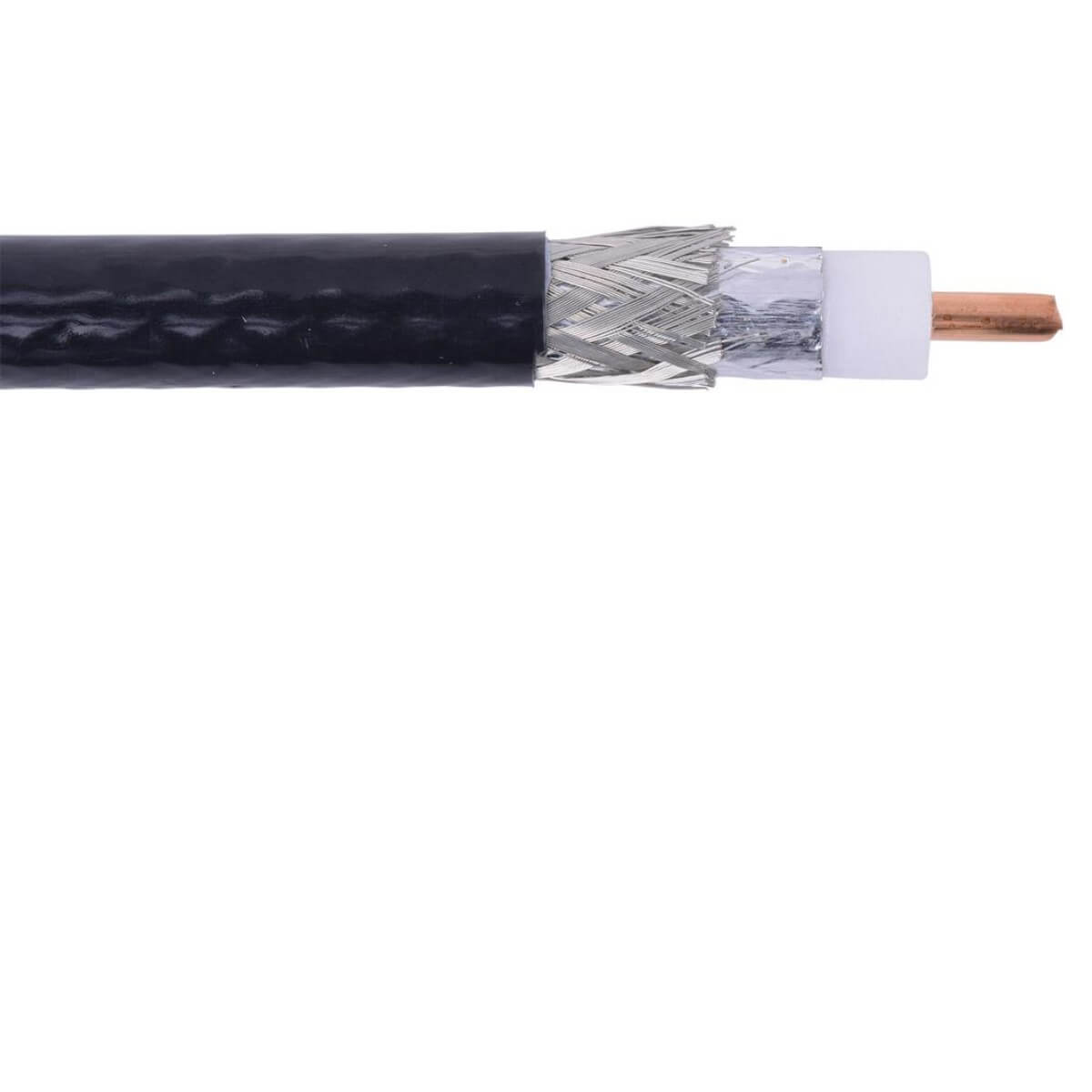

Construction is heavy-duty and purpose-built for RF performance rather than general-purpose coax duty. A 10 AWG solid annealed bare copper center conductor sits inside cellular fluoropolymer insulation, surrounded by dual shielding: 100% lightly bonded aluminum/poly foil plus a 90% tinned copper braid. That combination delivers both the full-coverage shielding that blocks high-frequency ingress and the braid coverage that handles lower frequencies and provides mechanical robustness. The jacket is PVDF, plenum rated.
Electrically the cable presents 50 ohm impedance with an 83% velocity of propagation and a DC resistance of 0.90 ohm per 1,000 feet, it is rated to 6.0 GHz with very low loss and excellent VSWR. Those figures are the reason to specify RF400-class cable rather than a generic RG8. On the long antenna runs typical of wireless microphone systems in large venues, cumulative loss determines whether a receiver sees usable signal margin or drops out mid-event, and low VSWR keeps the system's performance predictable across the band.
Typical applications include antenna pigtails, distribution for wireless microphone, in-ear monitor systems, satellite radio cabling, and general RF signal transport in commercial buildings. The cable meets NEC type CMP, CEC type CMP FT6 standards and is RoHS compliant.
Physical specifications are 0.338" outer diameter with a 3.38" unloaded and 6.76" loaded bend radius, worth checking against pathway design before the pull, as this is a stiffer cable than installers used to Cat6 may expect.
Plenum rating and antenna applications
Conference Room AV lists the 500-foot reel at $6,992.81 against an MSRP of $8,010.08, as an authorized Liberty AV dealer with free shipping and 30-day returns. It is the best choice for venues, houses of worship and broadcast facilities running plenum-rated RF infrastructure.
On the same projects, structured cabling usually runs on Liberty Cat5e plenum cable, and AV transport on the Liberty Digitalinx DL-1H1A1UCWP-H3 extension set.
