Liberty AV DL-1H1A1UCWP-H3
Digitalinx Series 4K60 HDMI, USB, USB-C HDBaseT 3.0 Wall Plate Extension Set
- Double Gang Decora style wall plate format Transmitter and standard style Receiver set with accessories
- Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0 offers resolution support up to 4K60 4:4:4, control, and USB2.0 with isochronous data support for cameras and other USB peripherals
- HDMI / USB-C auto switching based on video sense or 5V detection
-Timothy J.
Description

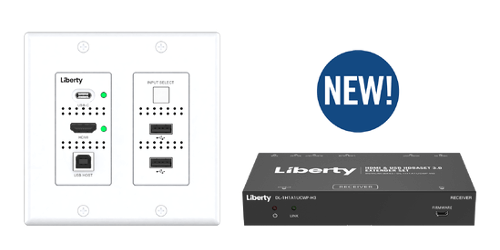

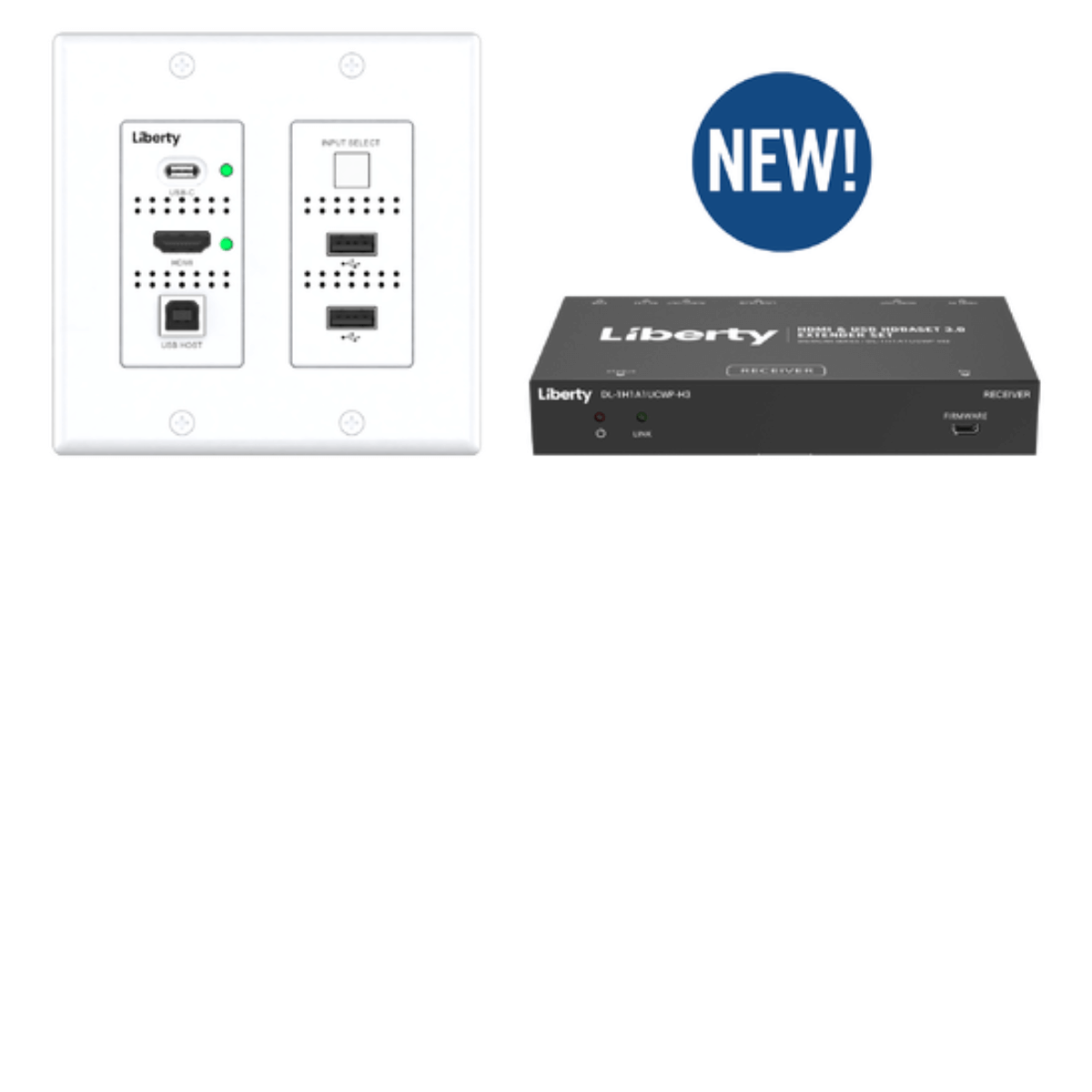

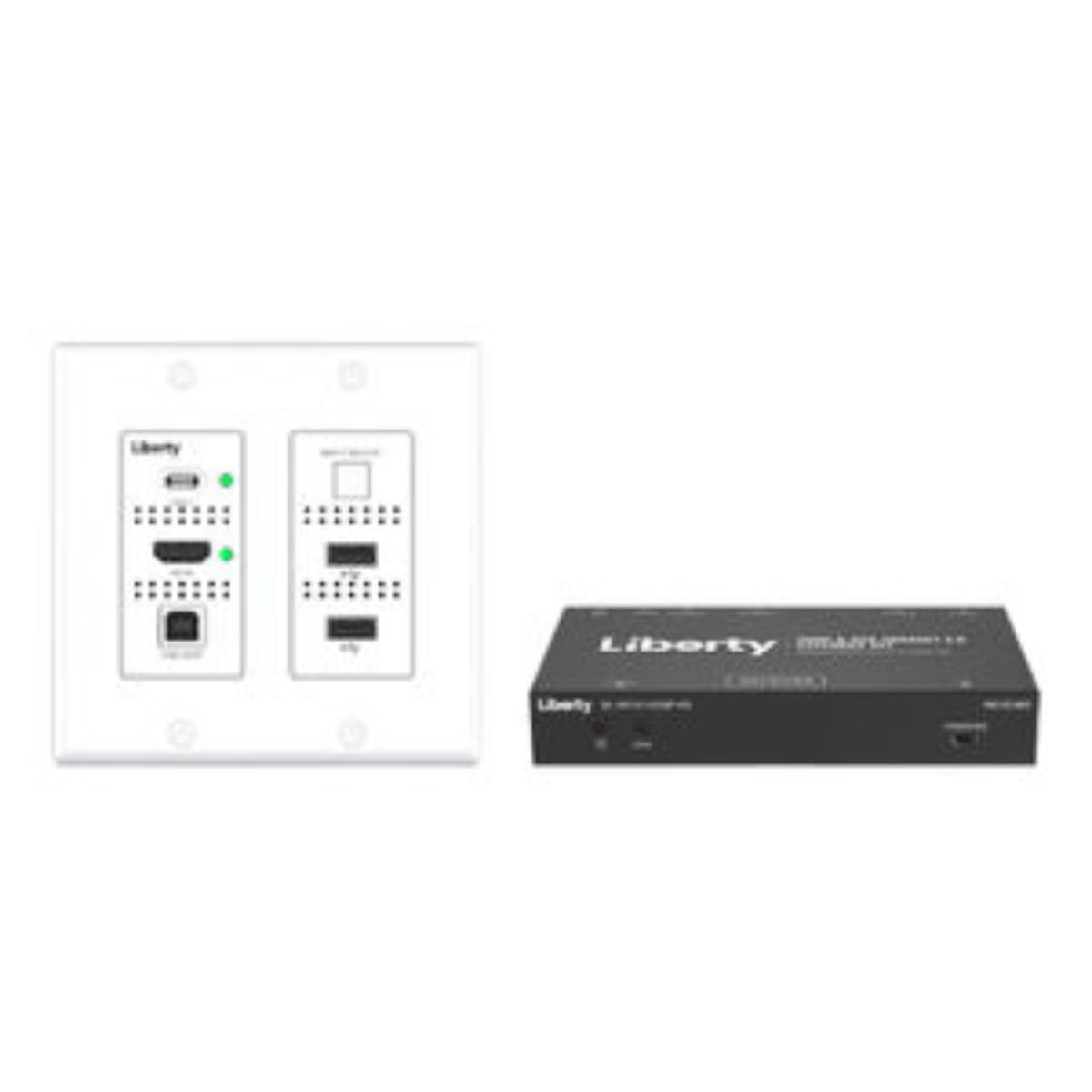

The Liberty AV DL-1H1A1UCWP-H3 is a Digitalinx Series HDBaseT 3.0 extension set built around a double-gang Decora-style wall plate transmitter and a standard-format receiver.
It is designed for the modern huddle room and conference room requirement directly i.e., get video, audio, USB and control from a wall plate to a rack or display over a single Category cable. It supports both HDMI and USB-C sources without asking the user to think about it.
HDBaseT 3.0 with uncompressed 4K60 4:4:4
HDBaseT 3.0 is the significant part of the specification. The set carries uncompressed HDMI 2.0 with resolution support up to 4K60 at 4:4:4 chroma full-bandwidth, visually lossless transport rather than the compressed alternatives that soften text and introduce latency.
Alongside video it carries control and USB 2.0 with isochronous data support, which is what makes the set usable for soft-codec meetings, isochronous transfer is the mode USB cameras and audio devices rely on.
The transmitter provides both HDMI and USB-C inputs with automatic switching based on video sense or 5V detection. That covers the two realities of a shared room with a modern laptop that connects over a single USB-C cable for video, data and power negotiation, in addition to a legacy device or visitor's machine that needs HDMI with no user-facing selection step and no button to explain. Housing the transmitter in a double-gang Decora wall plate keeps the room interface clean and lets it sit alongside standard Decora devices in the same plate style.
For integrators, the appeal is consolidation because you have one Category cable which replaces separate HDMI, USB and control runs. This helps to reduce pathway congestion, installation labor and the number of things that can fail later.
HDMI and USB-C auto switching at the wall plate
Conference Room AV is as an authorized Liberty AV dealer and offers free shipping along with a 30-day returns policy. Where ARC back to a rack amplifier matters more than USB, compare the WyreStorm EX-40-H2-ARC extender set; the link itself runs over Liberty Cat5e plenum cable.
