Liberty AV
24-4P-P-L5-EN-ORG-BX

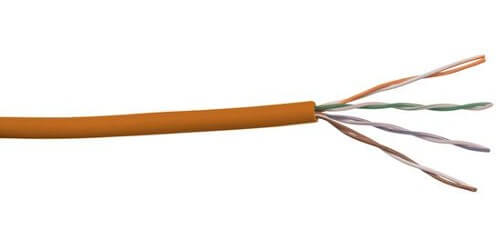

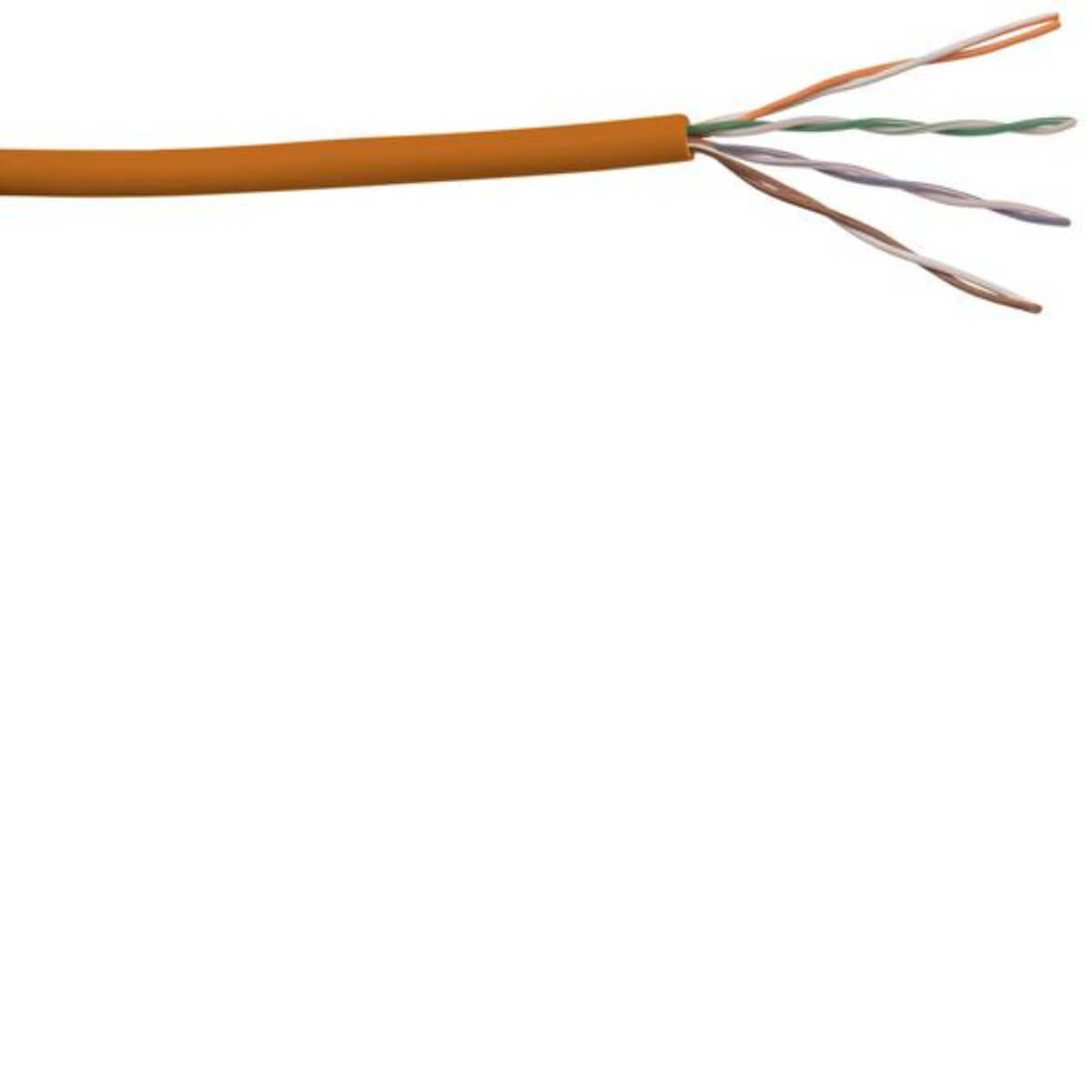

1000' Orange Category 5e U/UTP EN Series 24 AWG 4 Pair Unshielded Cable Box
-Brandon K.
Description
Liberty AV's 24-4P-P-L5-EN-ORG-BX is a 1,000-foot box of orange Category 5e U/UTP plenum cable from the company's EN Series a workhorse infrastructure cable for AV and IT installations where the pathway runs through an air-handling space with a plenum-rated jacket.
Cat5e construction tested to 350 MHz
Construction follows established Cat5e practice i.e., 24 AWG solid annealed bare copper conductors with fluoropolymer insulation, four pairs twisted in varying lays to control crosstalk, and a plenum-rated jacket.
The cable is built to TIA/EIA-568-C Category 5e and tested to 350 MHz, comfortably above the 100 MHz the standard requires, which provides useful margin on longer runs. It is also works in electrically noisy environments. It carries NEC type CMP, CEC type CMP FT6 ratings and is RoHS compliant.
That specification set supports a broad range of applications i.e., horizontal LAN at 10/100/1000BaseT, voice over IP, PoE-powered devices such as cameras, access points, intercoms and touch panels.
The growing list of AV extenders, control systems and networked audio endpoints that expect structured cabling rather than dedicated AV wire. For integrators, one cable type covering data, control and AV transport meaningfully simplifies both the pull plus the documentation.
The orange jacket is the practical differentiator. On a project of any size, color-coding by function data, AV, control, security turns troubleshooting from a matter of tracing individual cables into a matter of glancing at a bundle.
Orange is commonly reserved for AV or a specific system, and standardizing on it across an estate pays dividends every time someone opens a ceiling or a rack three years after handover. The boxed put-up feeds cleanly during pulls and takes up less space on a job site than a reel.
Plenum rating and colour-coded installation
Conference Room AV offers free shipping with 30-day returns and authorized dealer status. Contractors buying bulk infrastructure, the combination of plenum rating, 350 MHz test margin and a distinctive jacket color makes this a sensible standard-issue Cat5e for commercial AV work.
Pair it with the Liberty Digitalinx DL-1H1A1UCWP-H3 HDBaseT wall plate set for AV transport over the same infrastructure, or the Liberty RG8-CMP plenum RF coax where wireless antenna runs are part of the same job.
