AVPro Edge AC-MX-88
18Gbps HDMI 8x8 Matrix w/ Dual Audio Deembedding/Matrix with built in scalers and audio delay
- Definition - Matrix switchers provide the ability to route any input to any output or to multiple outputs at any time. Depending on the model, a matrix switcher can route HD, UHD or SUHD content in this manner. Additionally, since most venues have audio zones and video zones the requirement to breakout or strip off the audio in often necessary and has become almost a standard feature on matrix switchers.
- Control –
- Matrix switchers are generally controlled via 3rd party controller like Control 4, RTI, Crestron and others. Many integrators want ready made drivers for their control system to make programming and deployment easier.
- Who uses them? - At the heart of almost every custom install is a matrix switch to ease routing and distribution of signals throughout the install including Audio, Video and Control –
-Brandon K.
Description

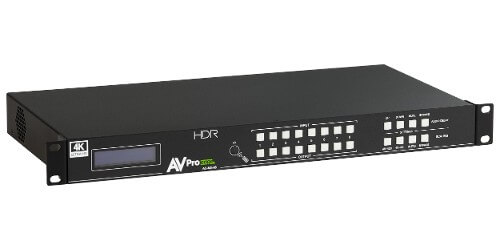

The AVPro Edge AC-MX-88 is an 8x8 HDMI matrix switcher that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K resolution and up to 18 Gbps of bandwidth. Any of eight sources, including Blu-ray and UHD Blu-ray players, satellite receivers, game consoles and PCs, can be shown on any connected display.
The matrix equalizes and amplifies its outputs so the HDMI signal can travel through long HDMI cables without losing quality, and dual audio de-embedding gives you separate paths for audio.
AVPro Edge built its own user interface (AEUI) from scratch with integrators in mind. Using it you can write custom EDID strings to perfect the signal coming from a source, scale an image for a legacy display, and manage settings output by output.
Audio delay is on board, so lip-sync issues can be fixed before they become complaints, and built-in scalers mean a few older displays do not force you to give up 4K on the others.
Two features keep large systems flexible. HDBaseT Compatibility Mode (HDBT-C) converts signals between 9 and 18 Gbps so HDR and other high-bandwidth content can feed HDBaseT extenders or displays that cannot handle 18 Gbps, and it is applied per output so only the runs that need it are down-clocked.
4K downscaling is also managed on each output, and the matrix can step chroma subsampling down from 4:4:4 to 4:2:0 where a display or extender requires it.
The AC-MX-88 is a good fit when every display is within HDMI range or served by separate extenders. If you want HDBaseT built into the matrix outputs, step up to the AC-MX-88HDBT. For smaller systems, consider the AC-MX-44, and for 8K workflows look at the AC-MX-42X.
Key Features
- 8x8 HDMI matrix: HDMI 2.0(a/b), HDCP 2.3 and 18 Gbps bandwidth.
- Per-output scalers: 4K downscaling and 4:4:4 to 4:2:0 conversion where needed.
- HDBT-C: converts 9-18 Gbps signals for extenders or displays that cannot take full bandwidth.
- AEUI interface: custom EDIDs and output settings from AVPro Edge's own interface.
- Audio delay and de-embedding: fix lip-sync and manage audio paths.
- Equalized outputs: amplified HDMI outputs for longer cable runs.
Design and Installation Notes
Sizing and alternatives: the AC-MX-88 suits systems with up to eight sources and eight displays that are within HDMI range or served by separate extenders. If you want HDBaseT built into each output, choose the AC-MX-88HDBT. Smaller rooms can use the 4x4 AC-MX-44, and the AC-MX-42X is the option for 8K workflows.
Solving interoperability problems: the AEUI interface lets integrators create their own EDID strings to perfect the signal from a source or scale an image to suit a legacy display. Combined with adjustable audio delay and per-output downscaling, you can keep 4K on capable screens while serving older displays on the same matrix, and fix lip-sync without adding extra equipment.
Working with HDBaseT extenders: when a run needs HDBaseT, HDBT-C mode conditions signals in the 9 to 18 Gbps range so HDR content can reach third-party HDBaseT transmitters. Since, the setting is per output, a run that does not need it can stay at full bandwidth. Browse our HDBaseT receivers and extender kits to complete the system.
Typical Applications
Common in corporate boardrooms, university lecture spaces, bars and restaurants with multiple screens, and larger home theaters. Browse all HDMI-in, HDMI-out matrix switchers or the complete matrix switcher range.
Frequently Asked Questions
Does the AC-MX-88 have HDBaseT outputs?
No. It is an HDMI-only matrix. The AC-MX-88HDBT adds an HDBaseT port, mirrored with HDMI, on every output.
Can I downscale 4K for older displays?
Yes. Each output has a built-in scaler, so 4K can be downscaled on individual outputs.
What is HDBT-C?
HDBaseT Compatibility Mode converts high-bandwidth signals between 9 and 18 Gbps for use with HDBaseT transmitters or displays that cannot take 18 Gbps. It is set per output.
Can I create custom EDIDs?
Yes. The AVPro Edge user interface lets integrators create custom EDID strings.
