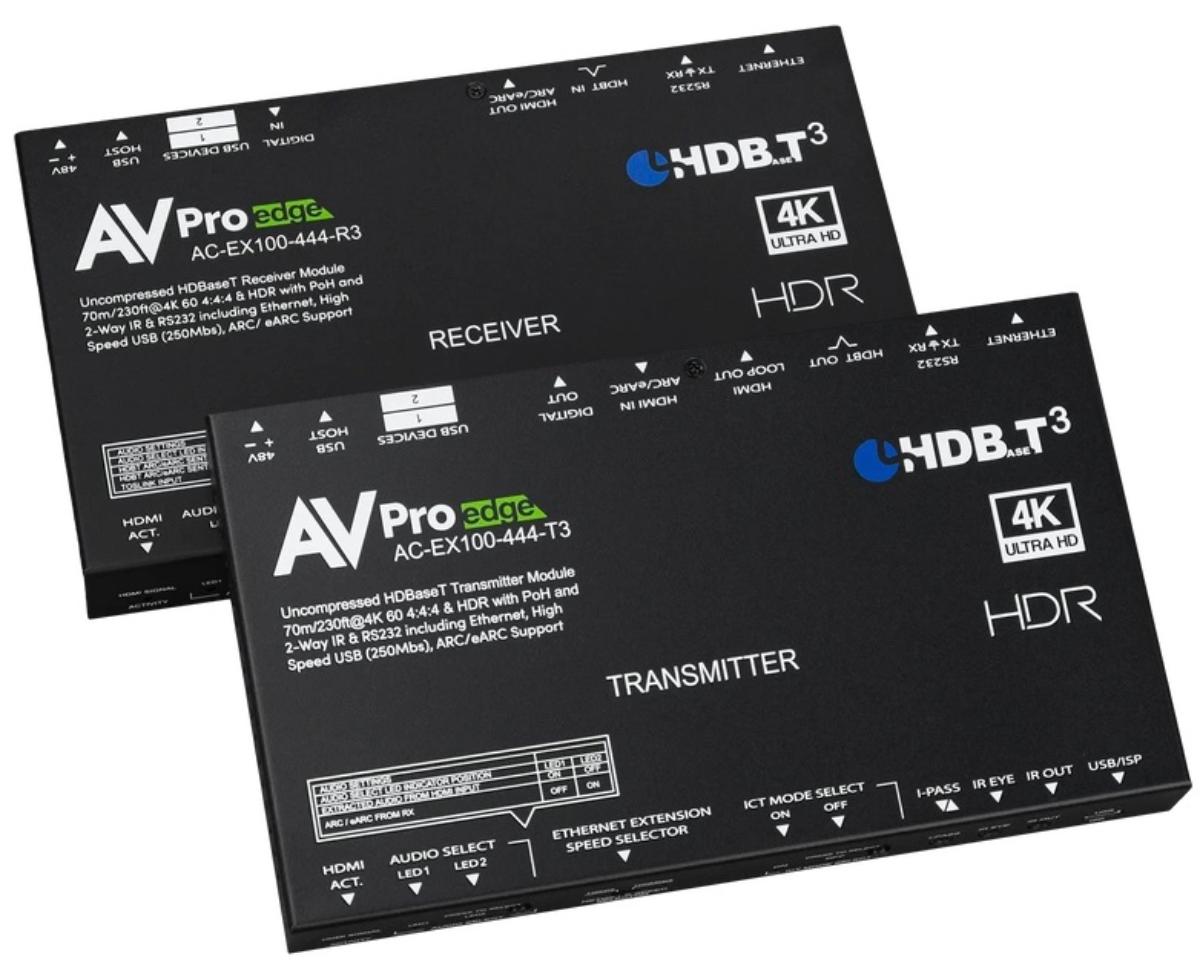

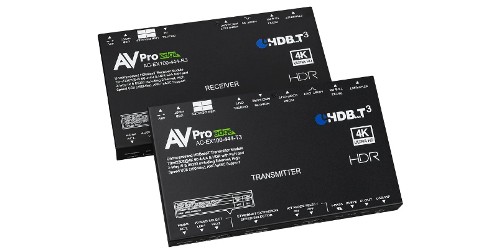

AVPro Edge AC-EX100-444-KIT
HDBaseT (CAT6) Extender Kit

Description

The AVPro Edge AC-EX100-444-KIT is a point-to-point HDBaseT 3.0 extender that sends 4K60 4:4:4 video with HDR up to 100 meters (328 ft) over category cable, including Dolby Vision, HDR10 and HDR10+.

It is built on a new, highly integrated system-on-chip and is the first AVPro Edge extender to add eARC, while Ethernet is raised to 1 Gbps at the receiver.

A bandwidth-adaptable output is exclusive to this kit. It is designed for up to 18 Gbps of uncompressed video, but if existing cabling cannot carry that, a toggle switch enables AVPro Edge's Invisible Compression Technology (ICT) and reduces output bandwidth to 10.2 Gbps.

ICT is engineered to avoid banding, color wash-out and compression or motion artifacts, USB, eARC and LAN keep their native bandwidth when it is used. Latency is under 8 microseconds, measurable but not visible.

USB bandwidth has also been raised to 390 Mbps, which makes the kit a strong candidate for KVM. A computer connected by USB-A to the transmitter can be operated from up to 100 meters away with a keyboard and mouse plugged into the receiver. For shorter runs where 70 meters is enough, compare the AC-EX70-444-KIT.

Key Features

• 100 m reach: 4K60 4:4:4 HDR video to 328 ft over category cable.
• Adaptable bandwidth: uncompressed 18 Gbps, or ICT at 10.2 Gbps selected by a toggle switch.
• eARC support: the first AVPro Edge extender to carry eARC.
• KVM-friendly USB: 390 Mbps USB between transmitter and receiver.
• Gigabit Ethernet: 1 Gbps LAN extension at the receiver.
• Near-zero latency: under 8 microseconds.

Design and Installation Notes

Why a category-cable kit? Manufactured HDMI cables cannot be cut to length on site, while category cable can be terminated by the installer, so a 100-meter run is practical. The AC-EX100-444-KIT builds on the earlier AC-EX100-444 platform with a new system-on-chip and is designed to be both future-forward and backward-compatible, with commercial and residential integrators in mind.

Typical Applications

Good for large auditoriums, houses of worship, digital signage and remote workstation (KVM) setups. See all HDBaseT kits, or the USB extenders for peripherals.

Frequently Asked Questions

How far can the AC-EX100-444-KIT extend 4K60 4:4:4?

Up to 100 meters (328 ft) over category cable, including HDR formats such as Dolby Vision, HDR10 and HDR10+.

When should I use the ICT toggle?

Use it when existing cabling cannot reliably pass 18 Gbps. ICT reduces the output to 10.2 Gbps for display while USB, eARC and LAN keep their native bandwidth.

Can I use it for KVM?

Yes. USB bandwidth is 390 Mbps, so a computer at the transmitter can be controlled with a mouse and keyboard connected to the receiver.

Does it support eARC?

Yes. This is the first AVPro Edge extender to include eARC.

Specifications

• 100 Meters (328ft) with 1080P (Cat-6a)
• 100 Meters (328ft) with 4K/60 4:4:4, HDR) (Cat-6a)
• Dolby Vision, HDR 10, HDR10+ Support Near-zero signal latency (less than 8ms)
• Comprehensive EDID management with EDID copy
• Audio Extraction (LPCM 5.1 Toslink)
• 4K>1080p mixed system rescaling, including with HDR
• 1080p test patterns built-in for troubleshooting
• 1 Gbps Ethernet Capability (10/100)
• USB 2.0, 390Mbps support for KVM functions
• Bi-directional 48v PoH (Power Over HDBaseT, only one power supply required)
• I-Pass feature for control system "pass-through"
• 3-20v protection circuit built in for safe IR transport
• Bi-directional RS232 Transport
• eARC support (all high bitrate and immersive audio formats) Supports uncompressed PCM 2- Ch., LPCM 5.1 &7.1, Dolby Digital,
• DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos on HDMI
• ESD protection circuitry (Inputs &Outputs) to 7KV
• Cascadable ("daisy chain" for extended distances)
• LED Status, Link, Power indication lights
