 Home > Speakers -> Ceiling Speakers -> 8" In-Ceiling -> AtlasIED -> C803AT87 8" Coaxial 16W Loudspeaker w/ 70.7V, 8W Transformer

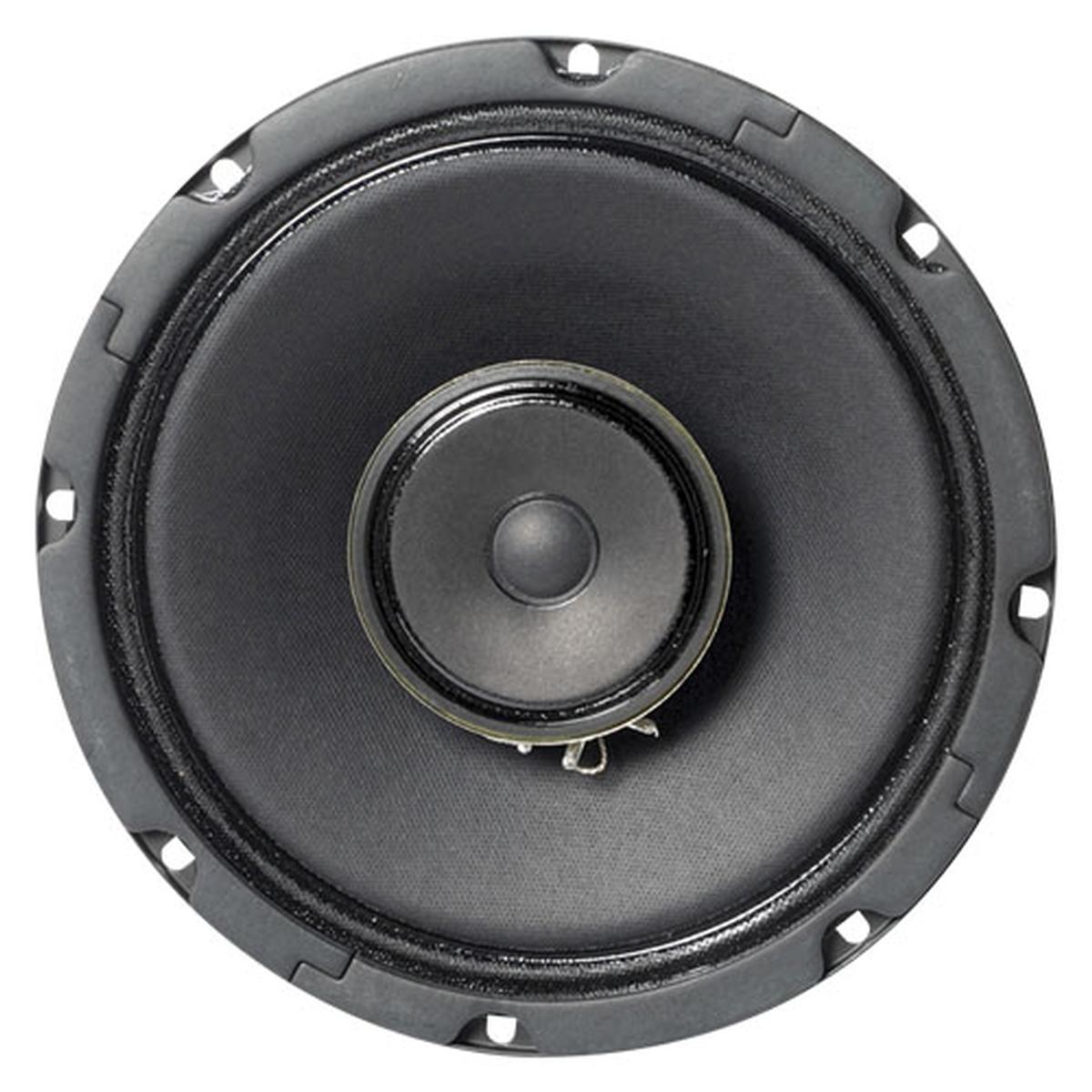

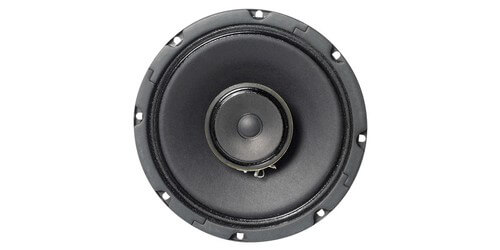

AtlasIED C803AT87
8" Coaxial 16W Loudspeaker w/ 70.7V, 8W Transformer

Part #: C803AT87
Satisfaction Guaranteed!
MSRP: $91.99
Our Price: $75.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top C803AT87 Specifications
  • Speaker Type Treated Paper
  • Frequency Response 100 Hz - 10 kHz, 1.5dB
  • Power Taps .25, .5, 1, 2, & 4 Watts
  • Sensitivity 98dB (peak), 95dB (avg)
"Very convenient and great customer support."
-Lynn Y.
Contact a product specialist!
Proudly supporting our customers since 2008


C803AT72 8" Coaxial Loudspeaker with 25V/70.7V-4W Transformer A high-quality 16-watt loud speaker with a factory-installed 25/70.7V 4W line-matching transformer.

This model uses a post mounted tweeter to add strength and support to the assembly and still giving it an attractive appearance. This coaxial loudspeaker features a 70 Hz- 15.5 kHz, 5dB frequency response and a broad, uniform dispersion pattern of 120 . Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

It combines a full-size 8" diameter low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).


  • Dispersion 120
  • Depth 2 7/8"
  • Diameter 8"
  • Shipping Weight 3.67 lbs
  • UL Listed/Standard 1480, 2043

Q & A

This product has no questions - ask one!

Ask a Question


There are currently no reviews for this product.

Write a Review

Related Items
8" Coaxial 16W, 8ohm, Loudspeaker w/ Tweeter
Your Price: $48.99
8" Coaxial 16W Loudspeaker w/ 70.7V, 5W Transformer
Your Price: $57.99
