 Home > Speakers -> Ceiling Speakers -> 8" In-Ceiling -> AtlasIED -> C803A 8" Coaxial 16W, 8ohm, Loudspeaker w/ Tweeter

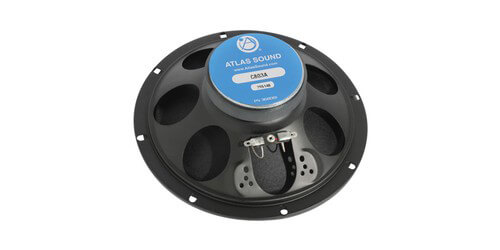

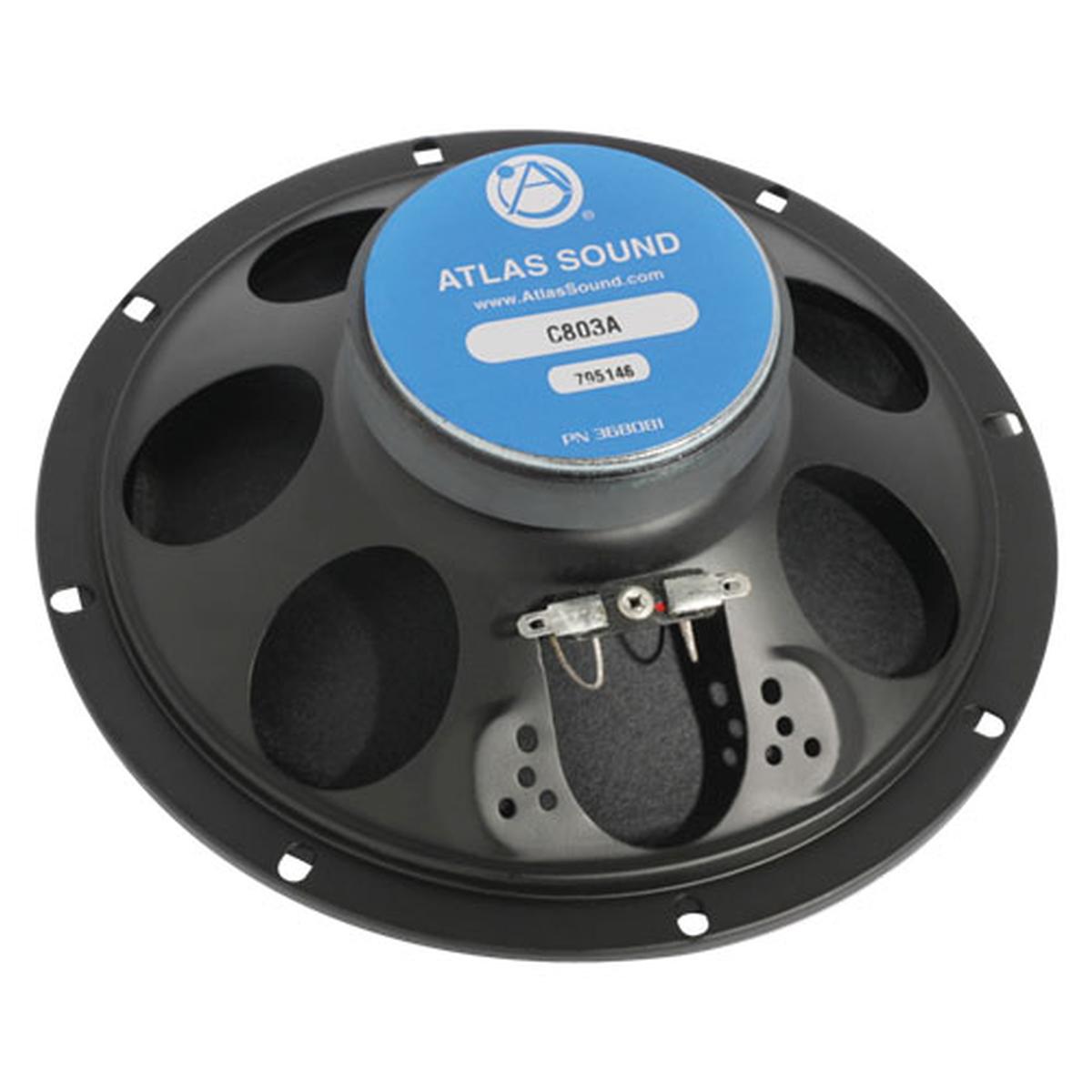

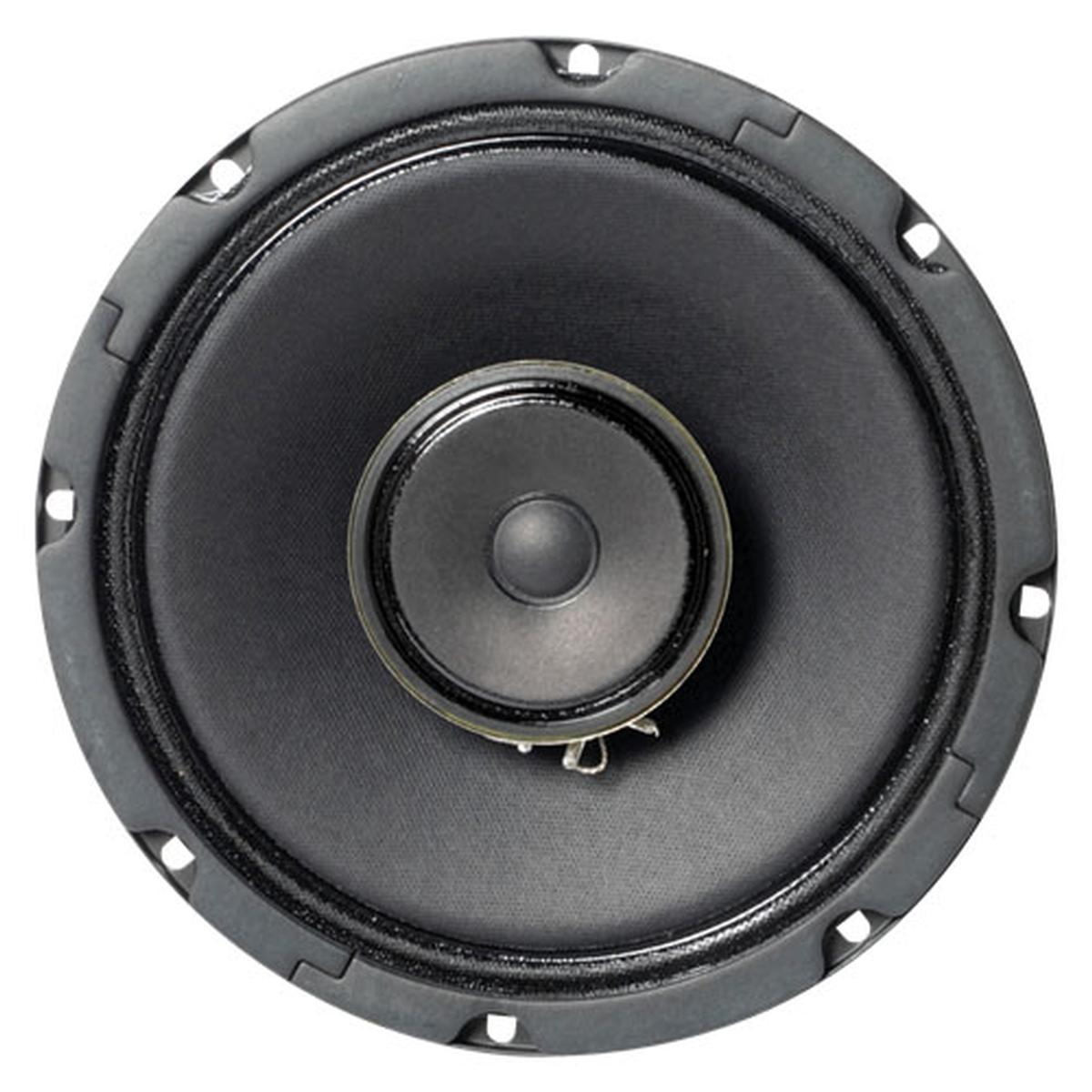

AtlasIED C803A
8" Coaxial 16W, 8ohm, Loudspeaker w/ Tweeter

Part #: C803A
Satisfaction Guaranteed!
MSRP: $58.99
Our Price: $48.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top C803A Specifications
  • Speaker Type Treated Paper
  • Frequency Response 70 Hz - 15.5 kHz
  • Power Taps 8 Ohms
  • Sensitivity 98dB (peak), 95dB (avg)
"Easy to order. Lots of useful info on your webpage."
Contact a product specialist!
Proudly supporting our customers since 2008

Description

C803A 8" Coaxial Loudspeaker 16W @ 8 by Atlas Sound is utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance giving it a high quality. This coaxial loudspeaker features a 70 Hz- 15.5 kHz, 5dB frequency response and a broad, uniform dispersion pattern of 120 . It has a provision for highly intelligible sound reproduction and better distribution for high-quality sound systems.

It combines a full-size 8" diameter low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet and the unit has a peak sensitivity of 98dB

Model C803A conveniently mounts a wide variety of Atlas Sound baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

Specifications

  • Dispersion 120
  • Depth 2 7/8"
  • Diameter 8"
  • Shipping Weight 3.17 lbs
  • UL Listed/Standard 1480
