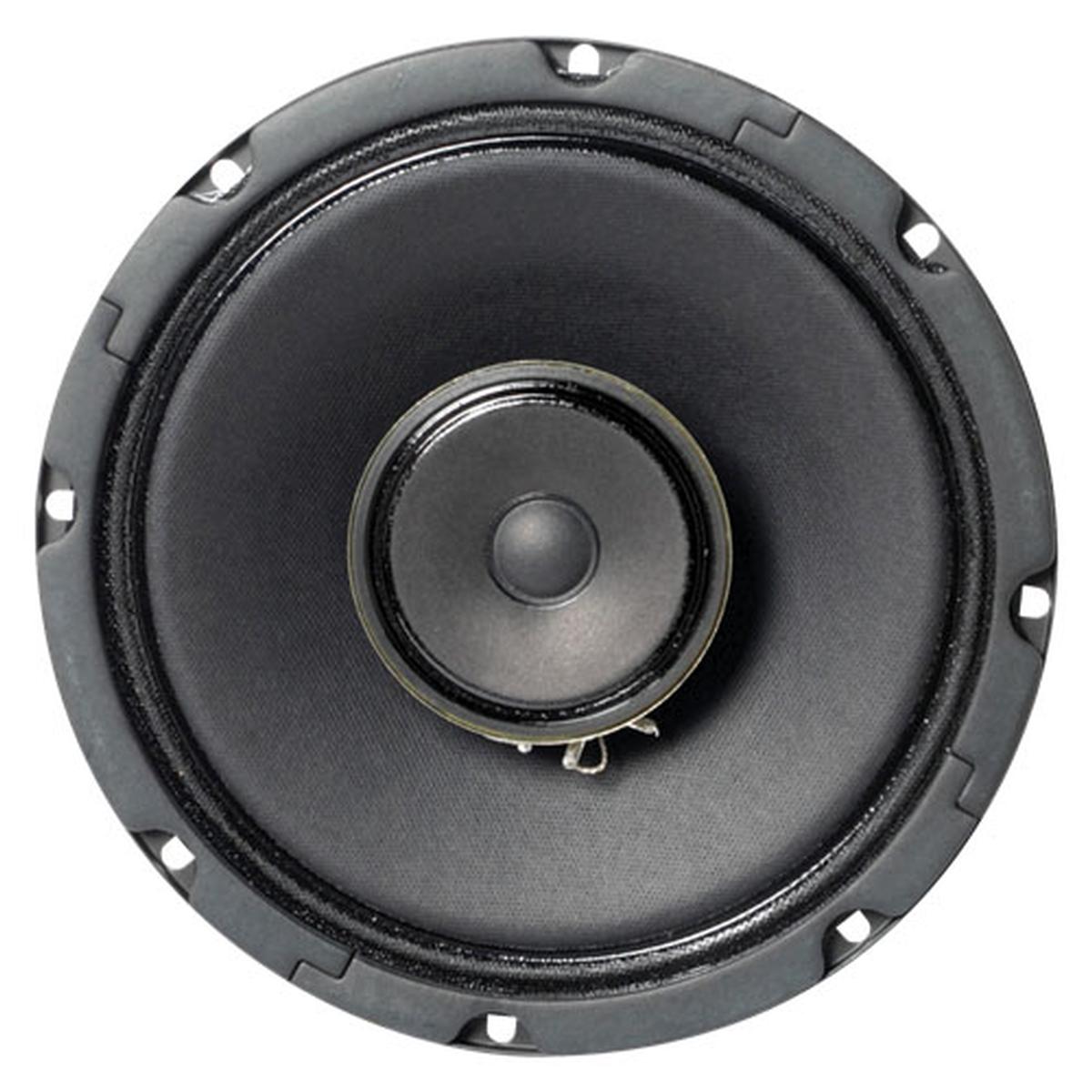

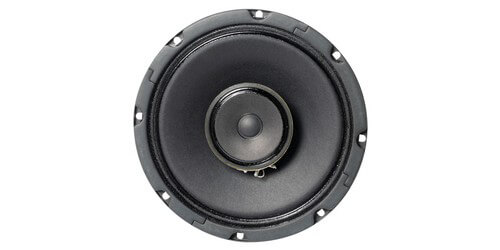

AtlasIED C803AT167
8" Coaxial 16W Loudspeaker w/ 70.7V, 16W Transformer

Part #: C803AT167
Satisfaction Guaranteed!
MSRP: $127.99
Our Price: $103.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top C803AT167 Specifications
  • Speaker Type Treated Paper
  • Frequency Response 40 Hz - 15 kHz, 1.0dB
  • Power Taps 4, 8, & 16 Watts
  • Dispersion 120
"Customer Service was knowledgeable and answered all questions quickly. Great Service!"
-Gregory W.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

C803AT167 8" Coaxial Loudspeaker with 70.7V-16W Transformer by Atlas Sound is a high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer. It is designed for Multi-Purpose Commercial, Industrial, and Institutional Use and can mount to a wide variety of Atlas Sound baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

This coaxial loudspeaker features a 40 Hz- 15.5 kHz, 5dB frequency response and a broad, uniform dispersion pattern of 120 thisis to achieve a highly intelligible sound reproduction and better distribution for high-quality sound systems.

This model combines a full-size 8" diameter low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet and the unit has a peak sensitivity of 98dB

Specifications

  • Sensitivity 98dB (peak), 95dB (avg)
  • Depth 5 1/8"
  • Diameter 8"
  • Shipping Weight 4.75 lbs
  • UL Listed/Standard 1480
