 Home > Speakers -> Ceiling Speakers -> 8" In-Ceiling -> AtlasIED -> C803AT70 8" Coaxial 16W Loudspeaker w/ 70.7V, 5W Transformer

AtlasIED C803AT70
8" Coaxial 16W Loudspeaker w/ 70.7V, 5W Transformer

Part #: C803AT70
Satisfaction Guaranteed!
MSRP: $70.99
Our Price: $57.99
Free Shipping* | 30 Day Returns* | Authorized Dealer
Top C803AT70 Specifications
  • Speaker Type Treated Paper
  • Frequency Response 100 Hz - 10 kHz, 1.5dB
  • Power Taps .5, 1, 2, & 5 Watts
  • Sensitivity 98dB (peak), 95dB (avg)
"Love the products we've ordered- they've been awesome!"
Contact a product specialist!
Proudly supporting our customers since 2008

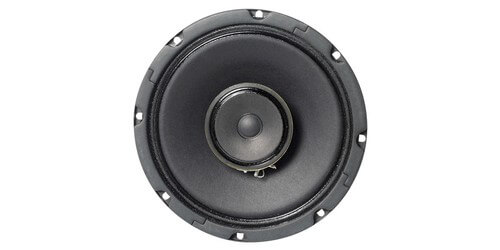

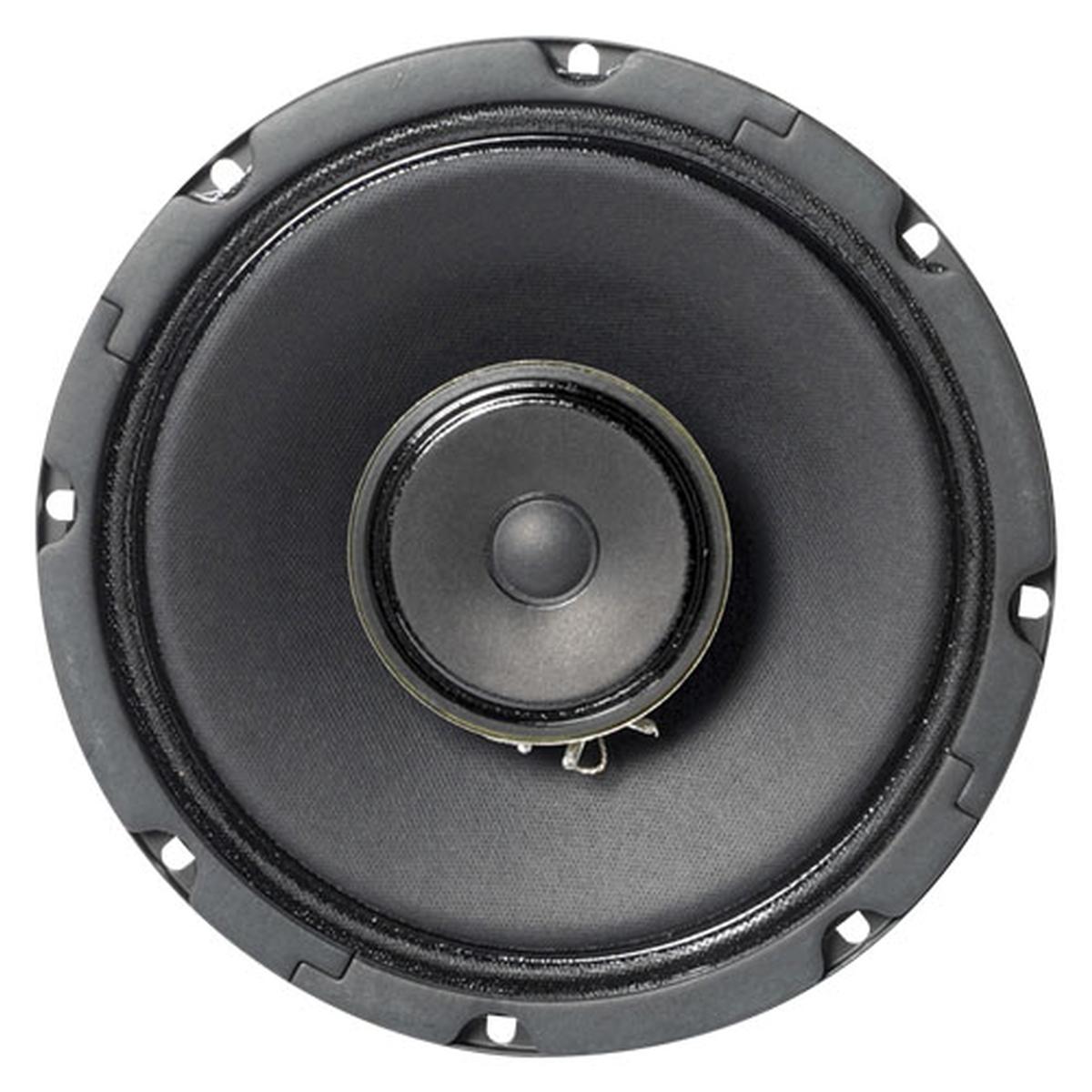

C803AT70 8" Coaxial Loudspeaker with 70.7V-5W Transformer by Atlas Sound is another high-quality 16-watt loud speaker with a factory-installed 70.7V 5W linematching transformer and it features a 70 Hz- 15.5 kHz, 5dB frequency response and a broad, uniform dispersion pattern of 120 all these provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

The C803A combines a full-size 8" dia. low-frequency reproducer and a 3" high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. ceramic magnet; the tweeter has a 2.35 oz. ceramic magnet and the unit has a peak sensitivity of 98dB


  • Dispersion 120
  • Depth 2 7/8"
  • Diameter 8"
  • Shipping Weight 3.67 lbs
  • UL Listed/Standard 1480, 2043
