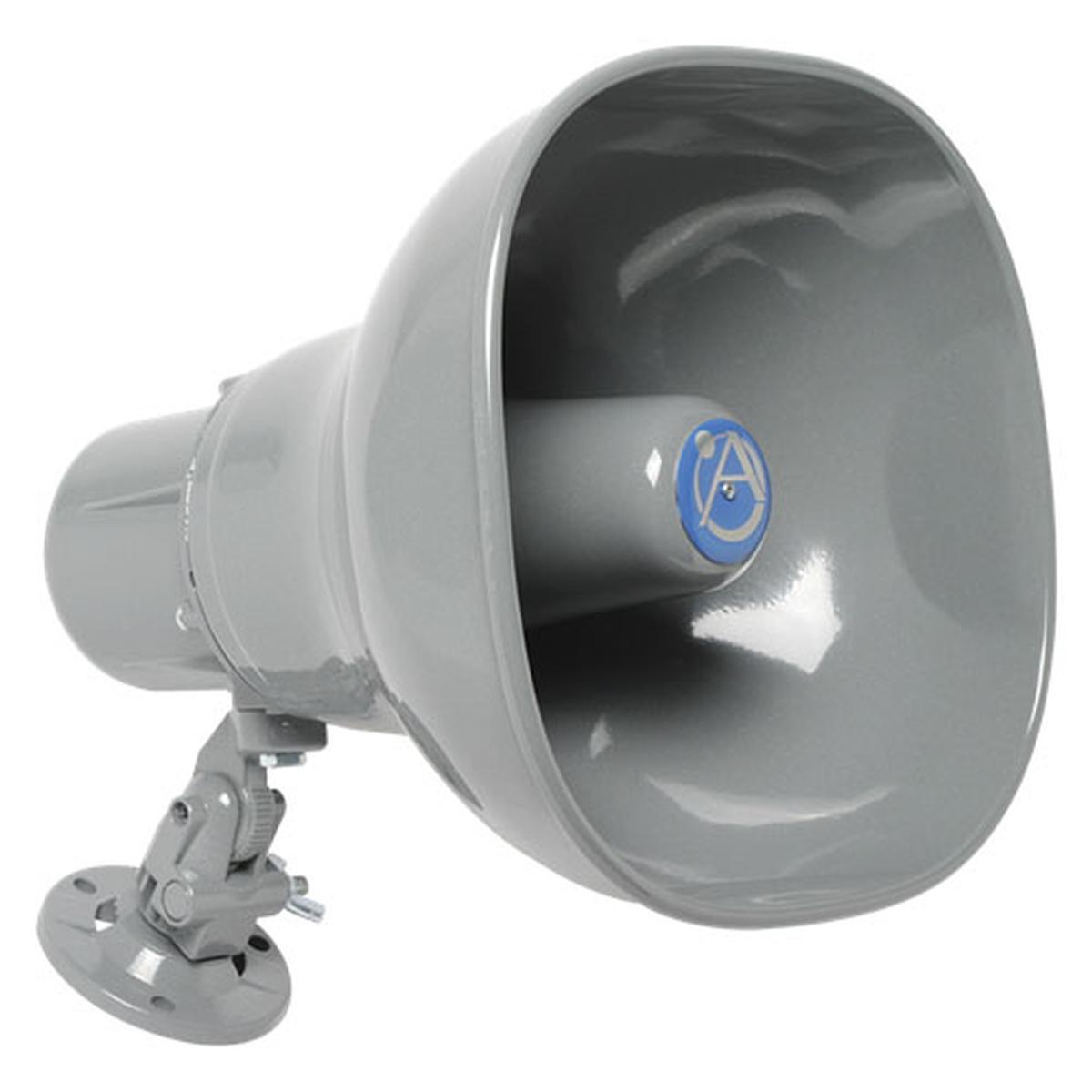

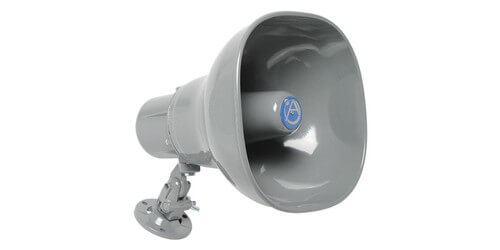

AtlasIED AP-15TUC
15W Surface Mount Paging Horn, UL Listed, Gray
Part #: AP-15TUC
Satisfaction Guaranteed!
MSRP: $195.99
Our Price:
$158.99
Top AP-15TUC Specifications
- Height 8 3/4"
- Width 7 7/8"
- Depth 90 5/16"
- Shipping Weight 5.00 lbs
"Quick and easy to find what I was looking for."
-Brandon K.
-Brandon K.
Contact a product specialist!
Proudly supporting our customers since 2008
Description
AP-15TUCEmergency Signaling Horn Loudspeaker with 25V/70.7V-15W Transformer and Capacitor for Line Supervision by Atlas Sound is a double re-entrant loudspeakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The this series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120 dB at rated power to provide clear voice and signal communication.
The squared-bell design is a trademark that signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (supplied on all models) achieves perfect positioning in the vertical and horizontal planes with a single adjustment.It has a provision for loudspeaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. All models meet or exceed the UL Listed standards for audible signal appliances, standard 1480 Speakers for Fire Protective Signaling Systems and California State Fire Marshal. So it guarantees high standard of quality. This unit is U.S. made and n assures a reliable service. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.Specifications
- Frequency Response 400 - 14,000 Hz
- Power Taps 1, 2, 3.8, 7.5, 15W @ 70.7V
- Dispersion 70
- Power Rating 15 Watts
- Sensitivity 106dB
- UL Listed/Standard 1480
- Operating Range -40 to 70C
