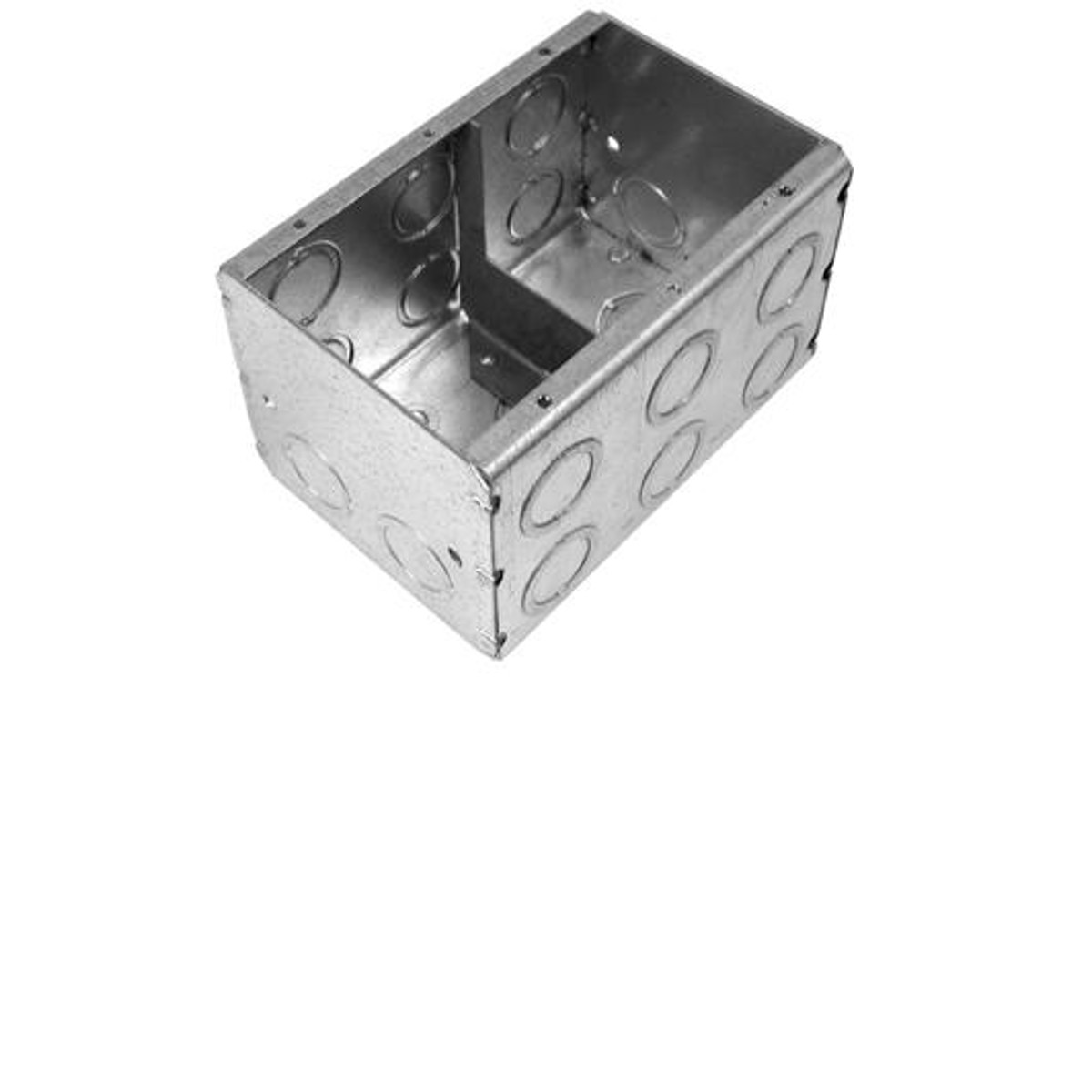

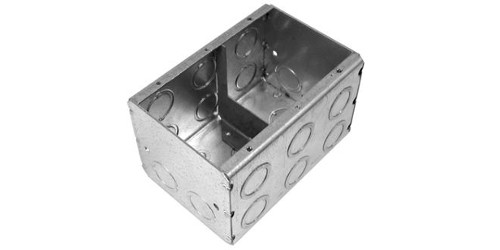

ACE Backstage 025BBX/AC
Mini Backbox with Electric Isolation Bracket
- Floor Cut Out Dimensions: 3.75" x 5.563"
- Under Floor Dimensions: 3.5"
-Brandon K.
Description
The ACE Backstage 025BBX/AC Mini Backbox with Electric Isolation Bracket is a critical rough-in component engineered to perfectly complement the Mini Stage Pocket series. It is designed specifically for sophisticated conference room AV setups, educational lecture halls, and modern houses of worship. The heavy-duty steel masonry box ensures that your under-floor connectivity is both physically protected and electrically secure.
One of the most crucial features of the ACE Backstage 025BBX/AC is its integrated electric isolation bracket. When combining high-voltage AC power and sensitive low-voltage connections like audio, video, or data lines within the exact same floor pocket, proper isolation is necessary to prevent signal interference and ensure safety. This specialized backbox provides that precise voltage isolation, allowing integrators to confidently accomplish dual-voltage applications in a highly constrained, compact footprint. By keeping your power and data completely separated, you maintain pristine signal integrity for your critical conference room microphones, PTZ cameras , and high-resolution display outputs.
Constructed from rugged steel, this masonry box acts as a structural fortress beneath the floor surface. It effectively supports robust conduit connections, protecting your stage pocket and delicate wiring from the harsh environment of concrete pours or raised access floor installations. To guarantee consumer safety and strict adherence to industry best practices, the 025BBX/AC is fully UL certified, giving AV professionals total peace of mind during inspections and long-term usage.
Despite its immense structural benefits, the physical footprint of this unit remains remarkably small, preserving valuable floor space. The ACE Backstage 025BBX/AC requires a highly manageable floor cutout dimension of just 3.75 inches by 5.563 inches. Additionally, the under-floor depth plunges a mere 3.5 inches, making it an incredibly versatile solution for venues with severely limited sub-floor clearance.
Always in stock for rapid onsite delivery, this essential mini backbox prevents costly project delays. Invest in the ACE Backstage 025BBX/AC to establish a secure, isolated, and highly professional foundation for your discreet conference room AV and stage pocket floor connections.
