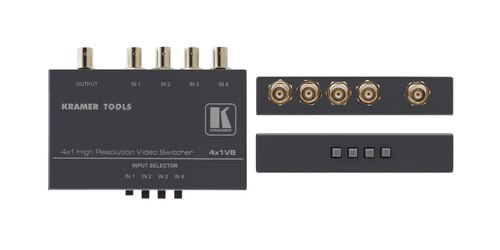

4x1 Composite Video Mechanical Switcher (BNCs)

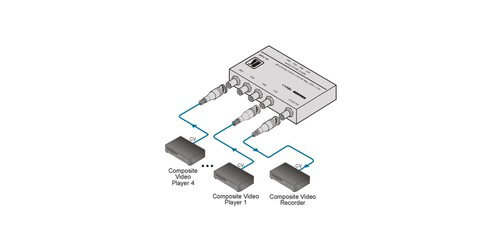

Kramer's 4X1VB is a 4x1 high-quality composite video mechanical switcher for composite video signals. This device has the ability to switch any one of four incoming signals on BNC connectors to a single composite or component video output on BNC connector. Making this an ideal switcher for use in presentation and display systems, including CCTV and home theater applications. Being a Mechanical switcher this device requires no power as it utilizes passive switching. Also utilizes break-before-make switching, which means it will make a new connection prior to breaking the previous one for a more seamless transition during switching.
The 4X1VB has 4 composite video inputs and 1 composite or single component video outputs all on BNC connectors. Has a high-bandwidth of 400MHz, is compatible with SDI and any other high frequency signals that might be used in rental and staging applications. This mechanical switcher comes with its own mounting brackets and the compact design of the 4X1VB allows for it to be rack mounted side by side with 2 other units in a 1U rack space, using the optional RK-3T. Comes backed by Kramer's 7 Year warranty.
- Mechanical(Passive) 4x1 Switcher
- Inputs: 4 composite video on RCA connectors
- Output: 1 composite or single component video on BNC
- Bandwidth: 400MHz
- Switching System: Mechanical / break-before-make
- No Power Required
- Included Accessories: Mounting Bracket
- Warranty: 7 Years
