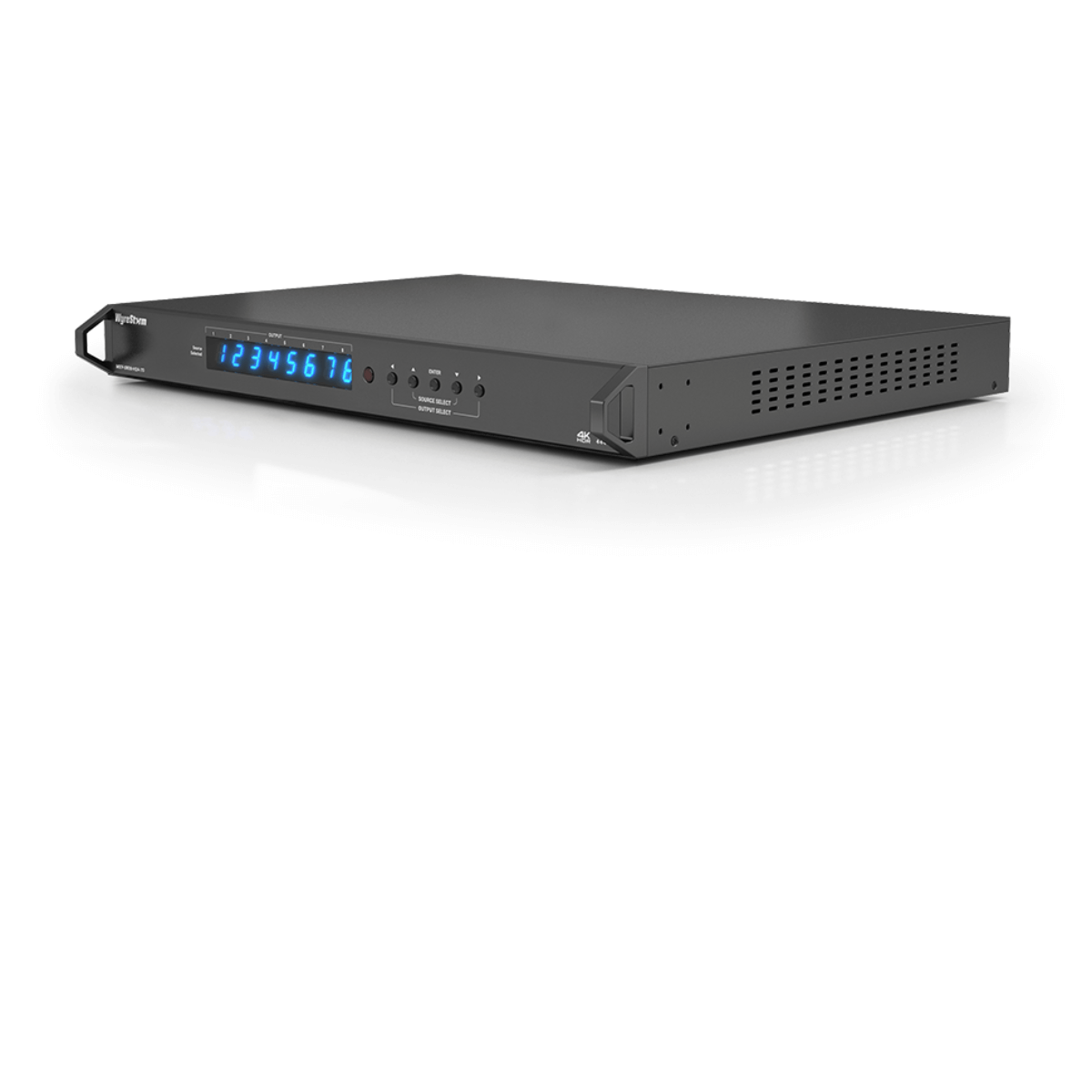

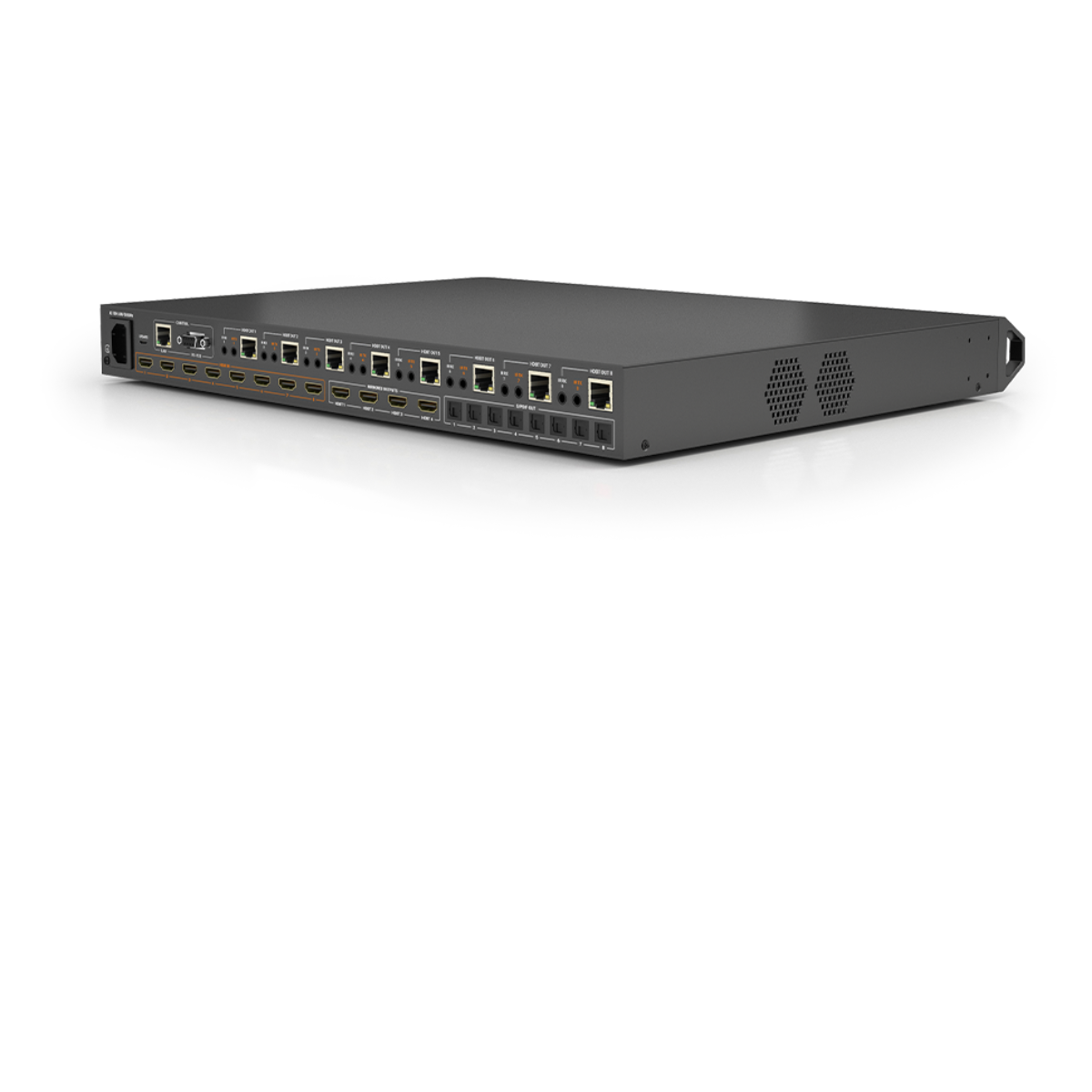

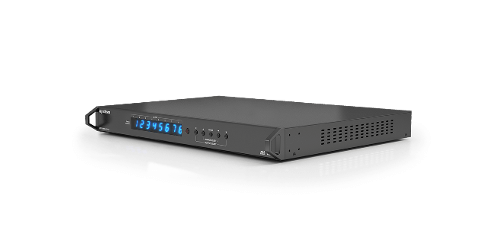

WyreStorm MXV-0808-H2A-70 v3
4K HDR 70m HDBaseT 8x8 Matrix Switcher

Description

Offering transmission of 18Gbps HDMI content up to 70m/230ft by pairing Class A HDBaseT with WyreStorm’s powerful lossless compression algorithm, the Wyrestorm MXV-0808-H2A-70 brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal integrity.

Use with RXV-70-4K-G2 for 70m/230ft transmission of 2160p 4:4:4/60

With 8 Class A HDBaseT zone outputs & 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 12 connected screens, the 6x6 MXV-70 enhances the offering for the modern home or commercial installation.

Specifications

• HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
• Proprietary compression algorithm enables 60Hz 4K UHD content (4:4:4 or HDR) to be sent over HDBaseT to 70m/230ft

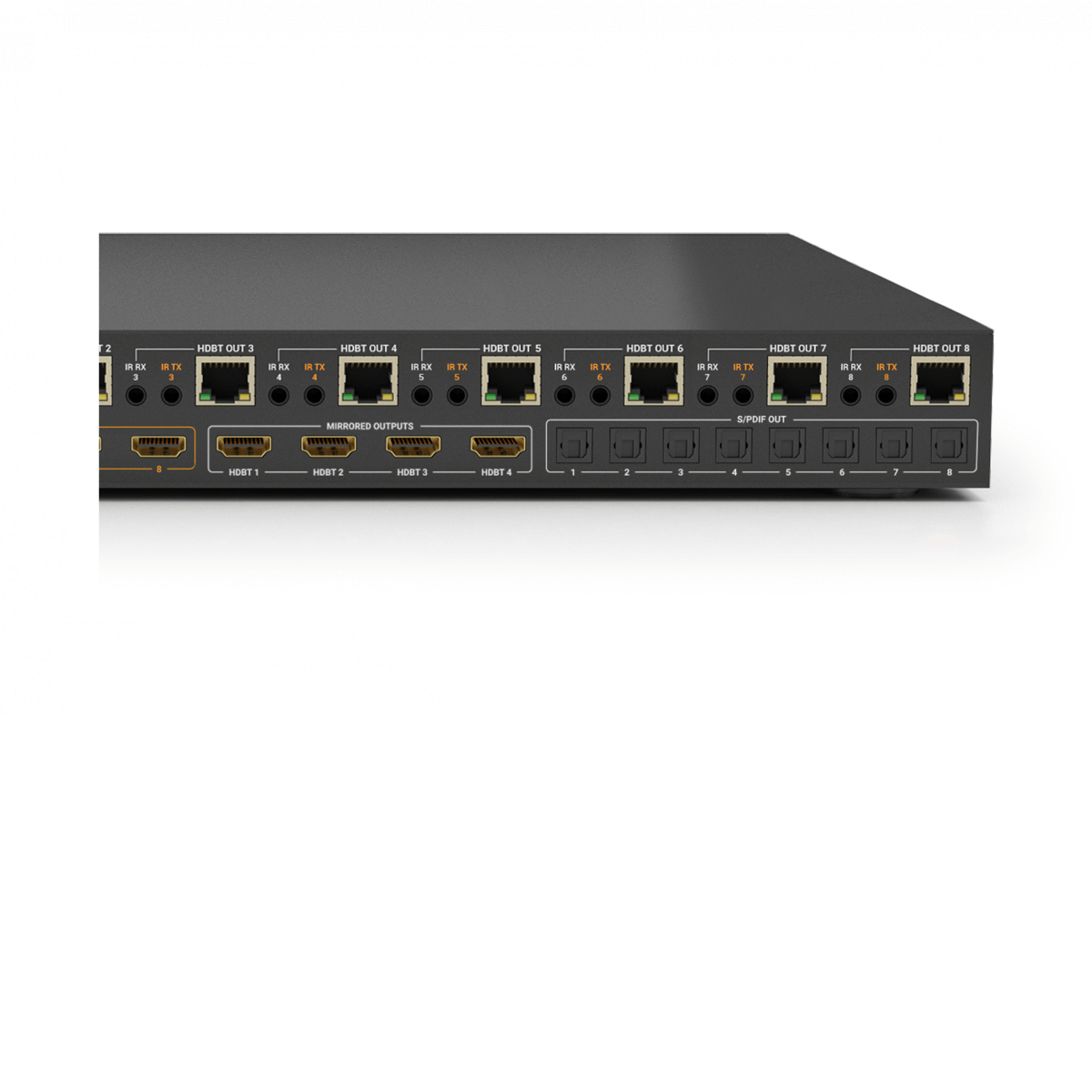

• 4 HDMI outputs mirroring HDBaseT Outputs 1-4 for connecting additional slave screens, projectors or AVR's
• HDMI Inputs and HDMI outputs support bandwidths of up to 18Gbps
• Compatible with DVI-I and DP++ v1.3 signals from compatible devices
• 8 Assignable audio outputs allow audio to be independently de-embedded from sources or outputs via Toslink optical
• A/V Mute mode allows the routing of a signal to an output to be deactivated
• API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
• Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
• A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
• SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
• Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
• Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration WebUI includes full EDID management to read, copy, store or import EDID from connected devices Assign a different EDID to each connected source device
• API triggered standby mode puts unit into low power state during downtime

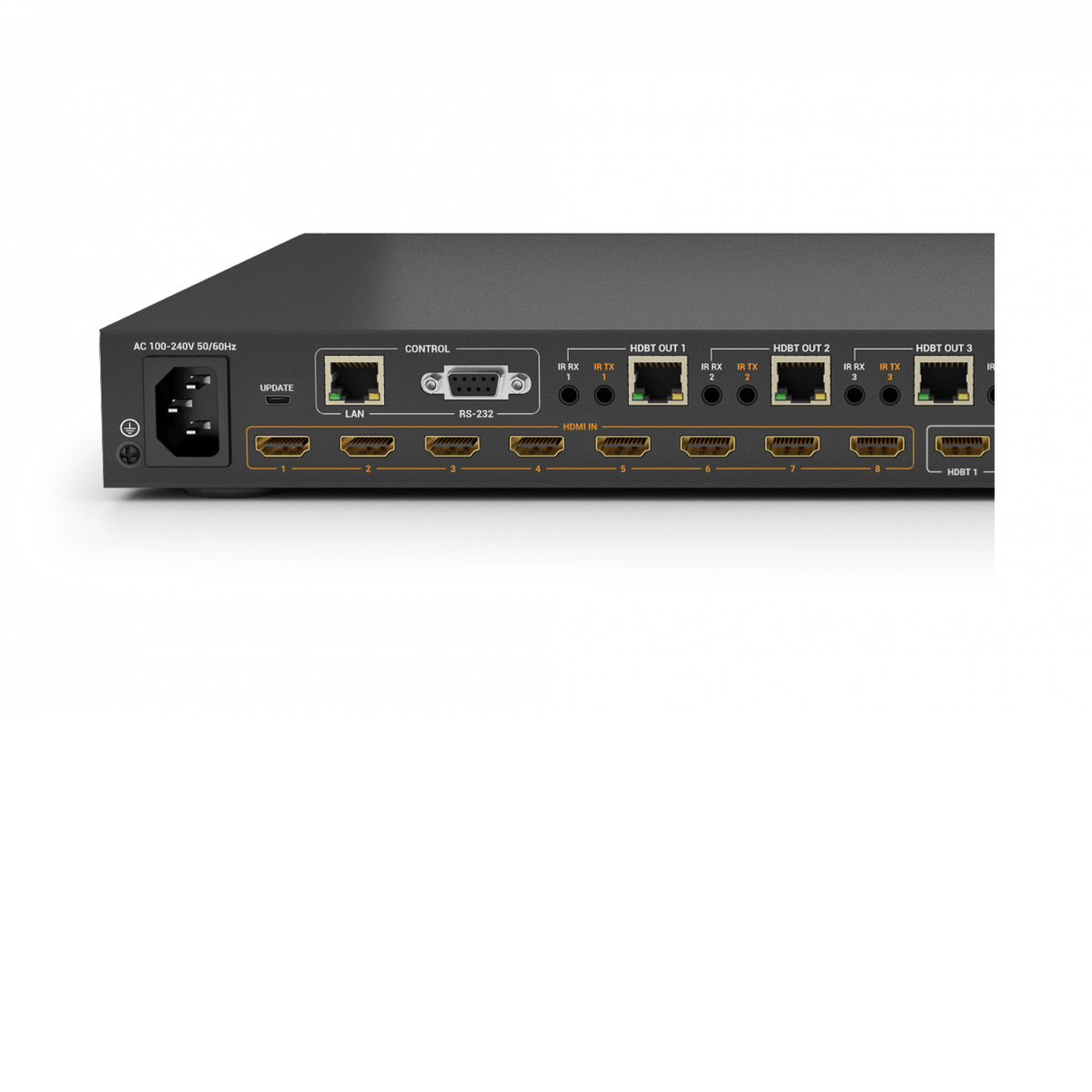

• Flexible control options front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
• 3.5mm jack input for receiving local IR commands out of line-of-sight
• Simple switching matrix remote control included, which can be learned into a universal remote handset to allow the control of multiple devices from one handset
• 2-way IR for far-end device control from control system or source control from a zone
• Option for end-user WebUI switching interface
• Compact 1U chassis with adjustable depth rack mounting brackets included
• US, UK, EU & AU Power cables included
• Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
• Capable of transmitting content to 50m/164ft using WyreStorm HAOC range of hybrid optical HDMI cables
• *The ability to send custom CEC commands when standard CEC commands aren't compatible
• *RS-232 routing over HDBaseT allows discrete control of all connected display devices
• *Version 3 model required.

Downloads

• WyreStorm MXV-0808-H2A-70 v3 Specifications (PDF)
• WyreStorm MXV-0808-H2A-70 v3 Manual (PDF)
