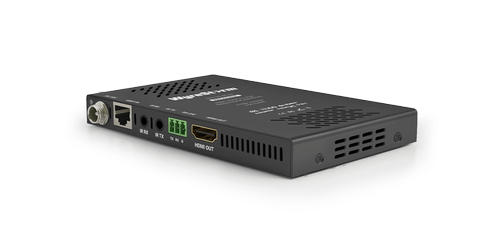

WyreStorm RXV-70-4K-G2
4K HDR HDBaseT Receiver for MXV Matrix - RS-232 and PoH
Part #: RXV-70-4K-G2
Satisfaction Guaranteed!
MSRP: $403.20
Our Price:
$383.04
Top RXV-70-4K-G2 Specifications
- Inputs: 1x HDBaseT In: 8-pin RJ-45 Female
- Outputs : 1x HDMI Out: 19-pin type A
- Video Resolutions: Up to 4K60Hz 4:4:4
- Output Video Encoding: HDBaseT Class A
"Quick and easy checkout and great prices. Will look here again."
Contact a product specialist!
Proudly supporting our customers since 2008
Description
The Wyrestorm RXV-70-4K-G2 is a 4K HDBaseT Receiver designed for use with the MXV-H2A-70 Matrix. It features Bidirectional IR, RS-232 & PoH as well as true 4K60 4:4:4 resolutions. The RXV-70-4K-G2 is the perfect companion for WyreStorm's MXV line-up of matrices also when distances of under 70 meters are required. This is the perfect solution for the TX-H2X-VLC modular card, found in the H2XC line.
Key Features:
For use exclusively with Class A 6x6 & 8x8 MXV-H2A-70 range of matrix switchers
- Uses WyreStorm's proprietary compression technology for lossless transmission of 4K HDR content, without latency
- Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
- 4K UHD signals up to 70m/230ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 100m/230ft (1200p 60Hz 16-bit)
- Supports HDMI2.0 video standard up to 18Gbps
- Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision™ (Dolby Vision supported up to 30Hz)
- Class A HDBaseT supporting the transmission of video, multichannel audio, bidirectional control and PoH
- Powered remotely via PoH from MXV matrix
- HDCP 2.2 compatibility
- Bidirectional IR supported with both IR TX & RX ports
- RS-232 port for routed 2-way serial communication
- LED indication for HDCP presence within signal and transmission link between devices
- Ventilated steel chassis
- Conforms to IEEE-568B standards
- Compact design for convenient and unobtrusive installation
- Wall mounting brackets and IR accessories included
Specifications
- Encoding Data Rate: 9.2Gbps
- End to End Latency: 10 s (micro seconds)
- Audio Formats HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X
- HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI-D supported with adapter (not included)
- HDBaseT: HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR
- CEC: Power Triggering for connected screens - Requires CEC compatibility
- IR: 1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional over HDBaseT
- RS-232: 1x RS-232: 3-pin Terminal Block - 3.5mm
- Dimensions: 0.6" x 5.38" x 0.53
- Weight: 0.53lbs
- Warranty: 5 Years
