WyreStorm CAB-HAOC-30
18 Gpbs over Active Optical HDMI Cable - 30m

Description

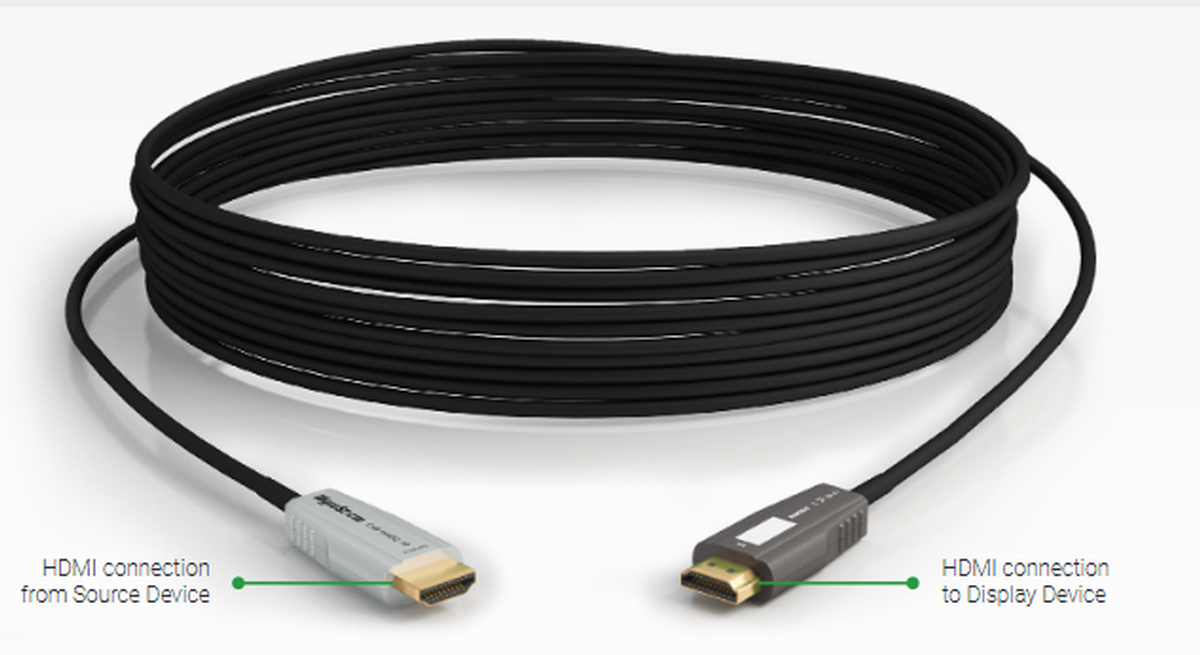

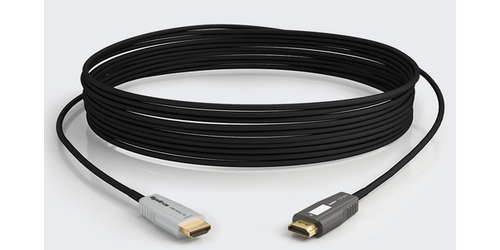

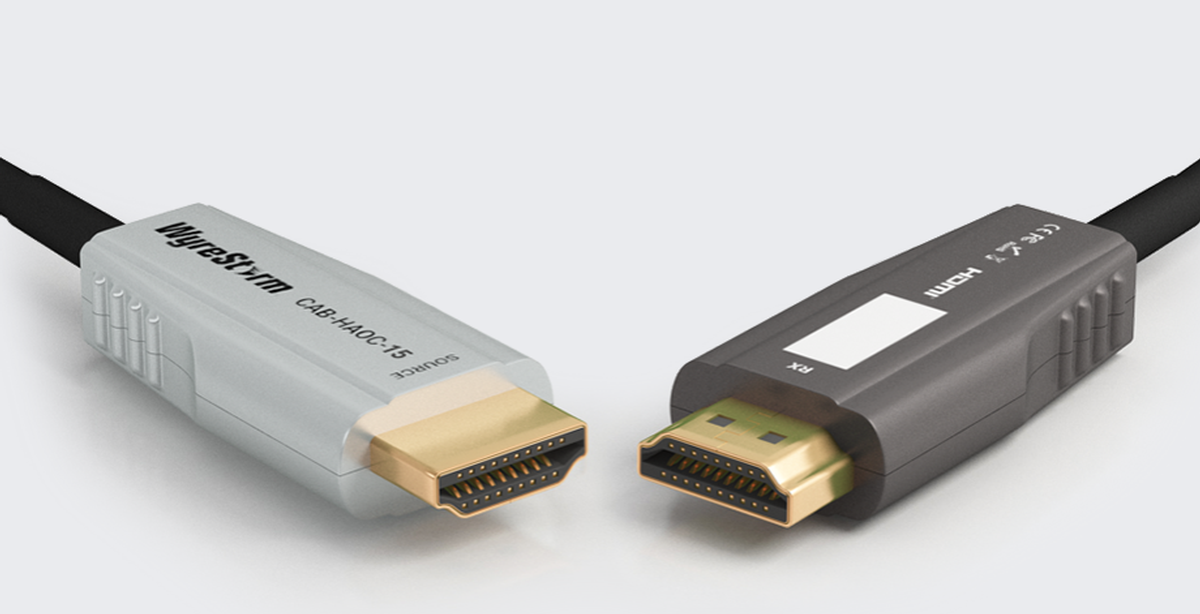

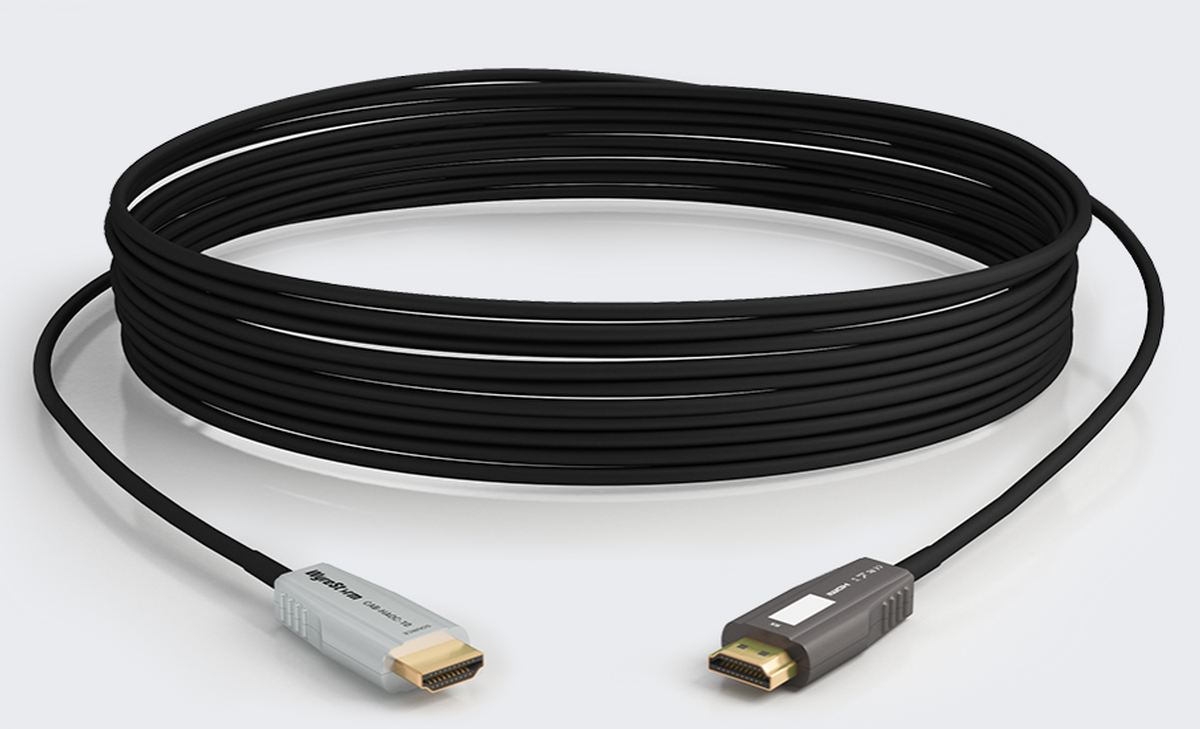

This is Wyrestorm's next-generation active optical HDMI cable. The CAB-HAOC-30 is designed for 4K UHD with HDR content. This hearty cable delivers uncompressed full bandwidth 18Gbps HDMI content across 49 feet using the latest optical transmission technology. The head and tail of the cable are made of solid alloy and designed to perfectly fit through conduits.

This cable is ideal for hospitality, corporate, residential, and retail environments – or any environment with more EM or RF interference. It supports HDCP 2.2, ARC, and CEC.

Specifications

• Output Video Type: AOC
• Video Resolutions (Max): 1920x1080p @60Hz 16bit / 3840x2160p @60Hz 10/12bit HDR 4:2:2 / 1096x2160p @60Hz 8bit 4:4:4 / 4096x2160p @60Hz RGB
• Encoding Data Rate: 18Gbps
• End to End Latency: Zero Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
• Maximum Pixel Clock: 600MHz
• Communication and Control
• HDMI: TMDS | HDCP | EDID | CEC | ARC
• Audio Return Channel (ARC): Supported
• Power
• Power Supply: Passive 5V DC 1A | 4.5v~5.5v VCC
• Max Power Consumption: 250mW
• Dimensions & Weight
• Rack Units/Wall Box: NA
• Height: 9mm/0.36in
• Width: 19.8mm/0.78in
• Depth: 39.5mm/1.56in
• Weight: NA
• Cable Length (Connector to Connector): 30m
• Regulatory Safety and Emission: CE | FCC | RoHS
• Warranty: 5 years

Downloads

• WyreStorm CAB-HAOC-30 Specifications (PDF)
