Williams Sound FM ADA KIT 1
FM ADA Large Area Value Kit

Description

Williams Sound values people of all abilities, and that's why they are dedicated to providing public facilities with Americans with Disabilities Act-approved assistive listening devices. These devices ensure that people with different hearing abilities can engage the same way as typical hearing individuals. The FM ADA Kit is designed for large area use, and it contains everything that a hearing impaired individual would need to meet the ADA requirements. Ideal environments for use include houses of worship, universities and colleges, auditoriums, theaters, conferences, and libraries.

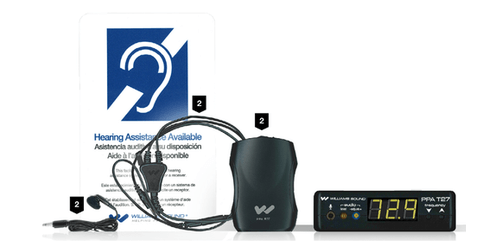

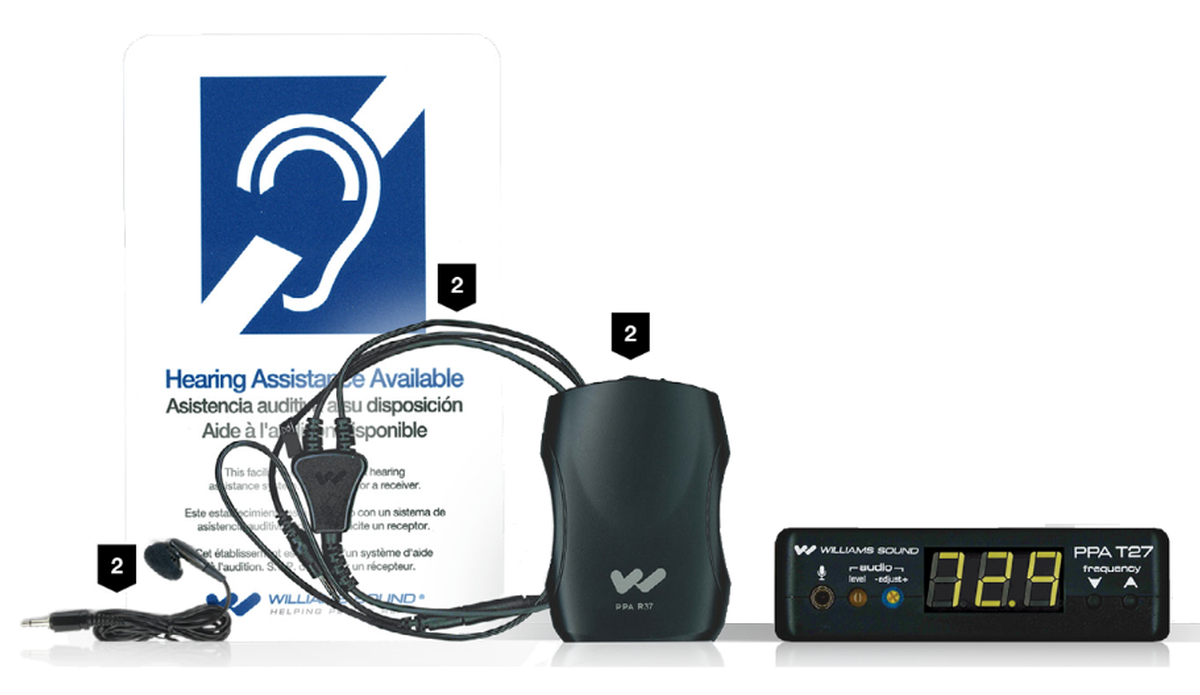

This helpful system includes the following items:

• (1) PPA T27 Transmitter

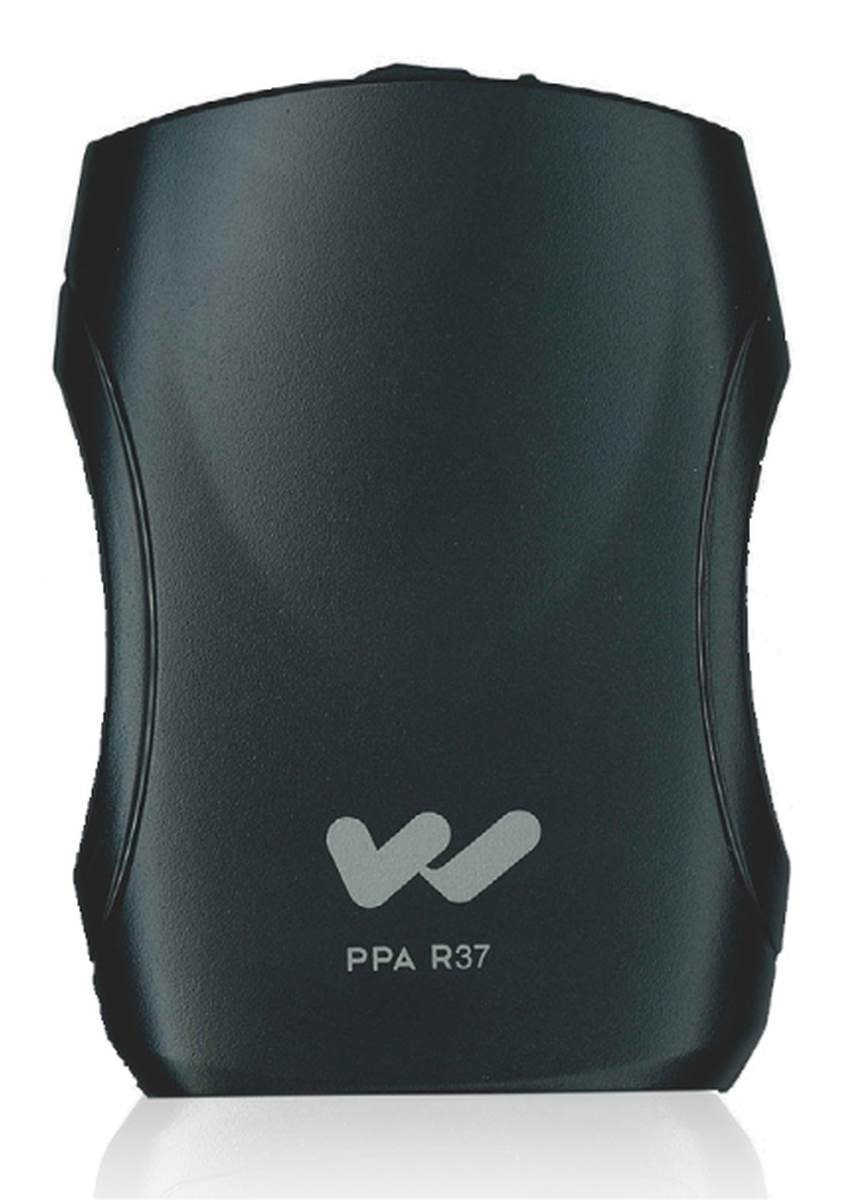

• (2) PPA R37 Receivers

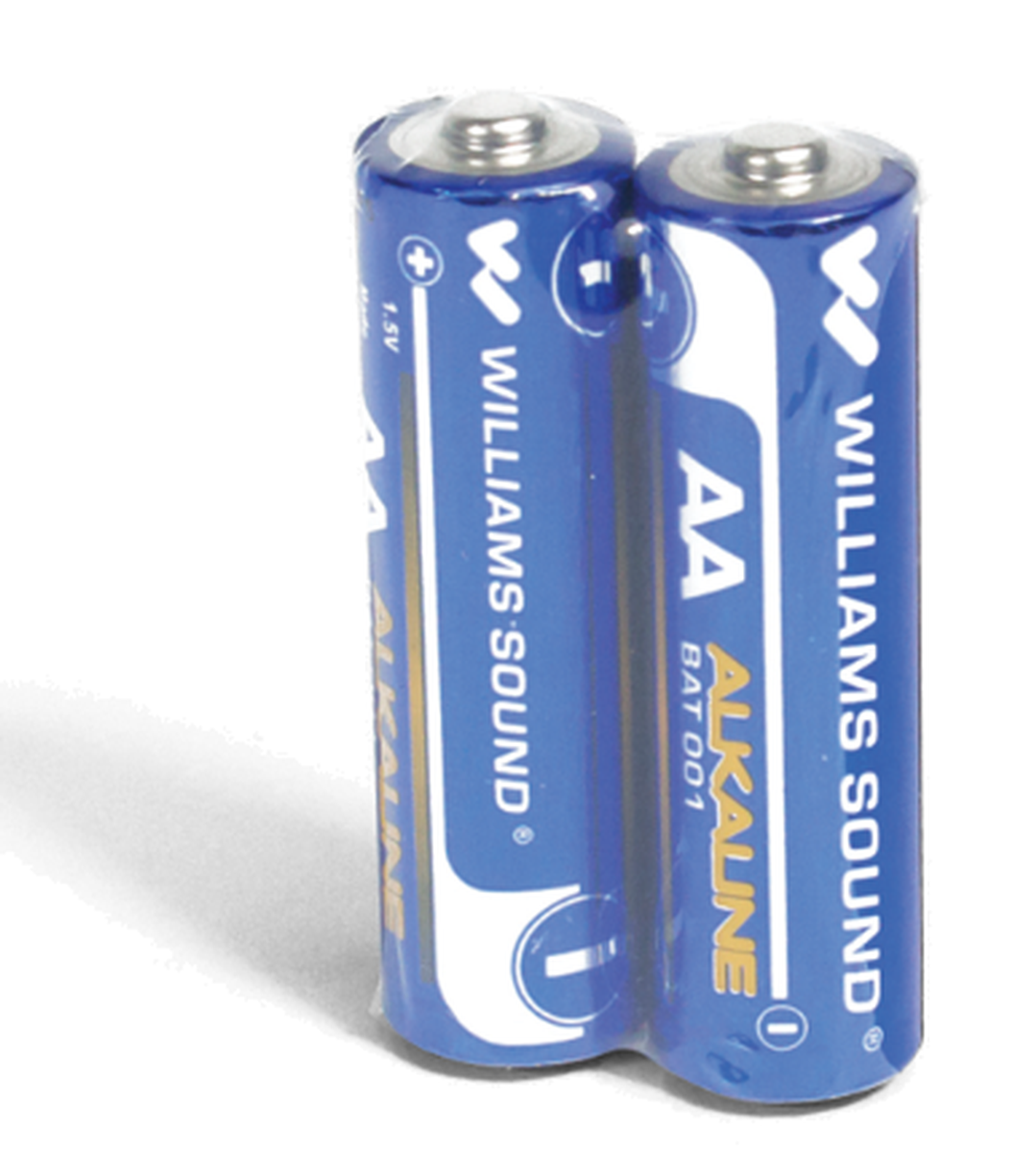

• (2) BAT 001-2 AA Alkaline Batteries
• (2) EAR 013 Single Mini-Earbuds

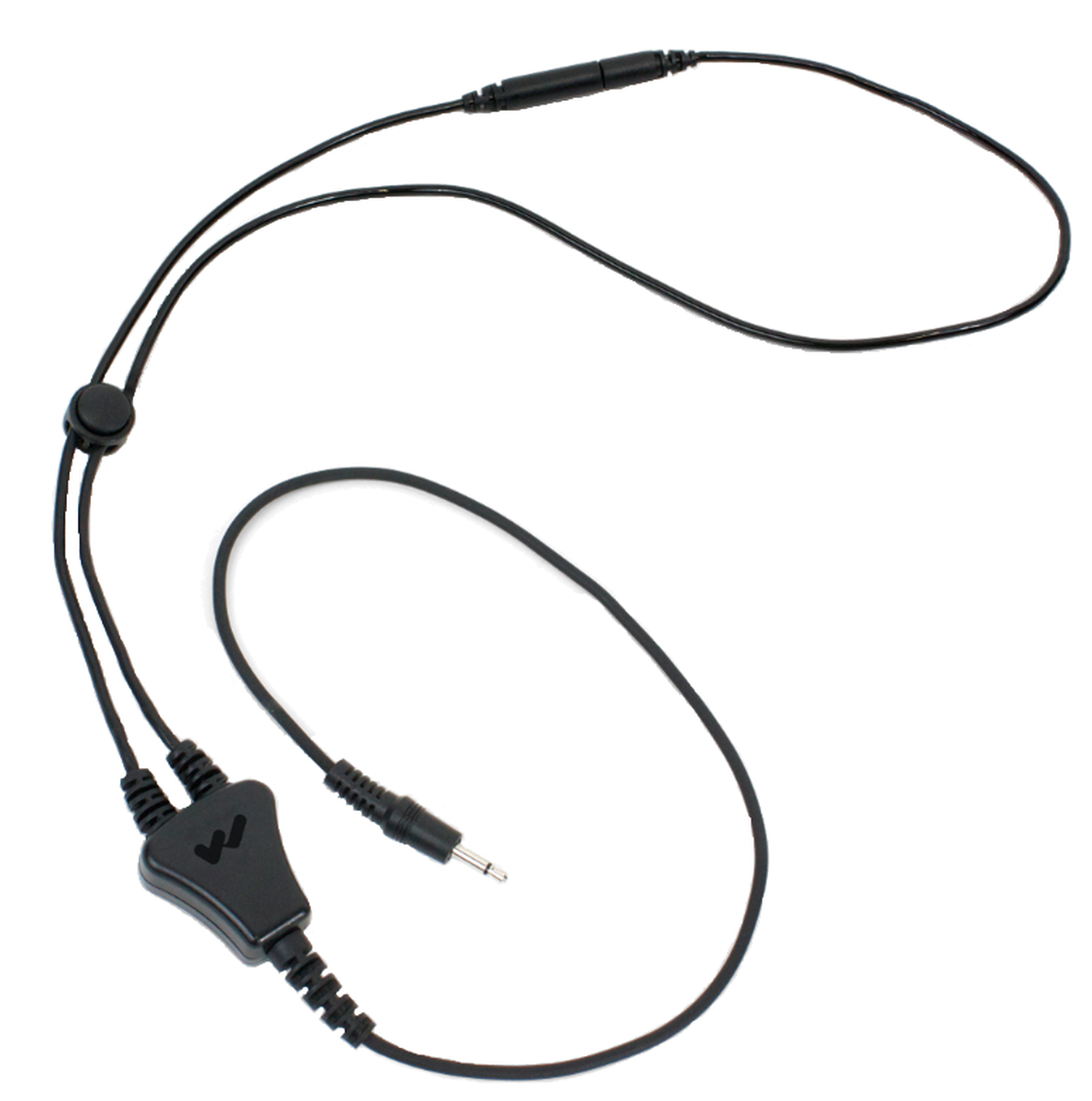

• (2) NKL 001 Neckloops
• (1) IDP 008 ADA Wall Plaque

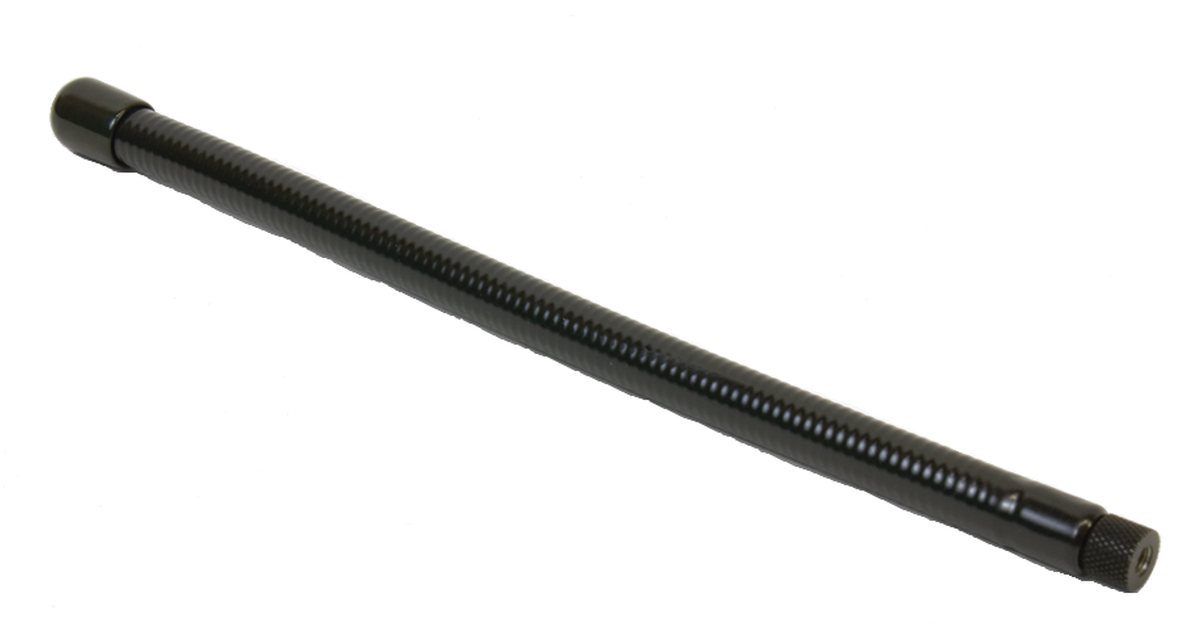

• (1) ANT 021 Antenna

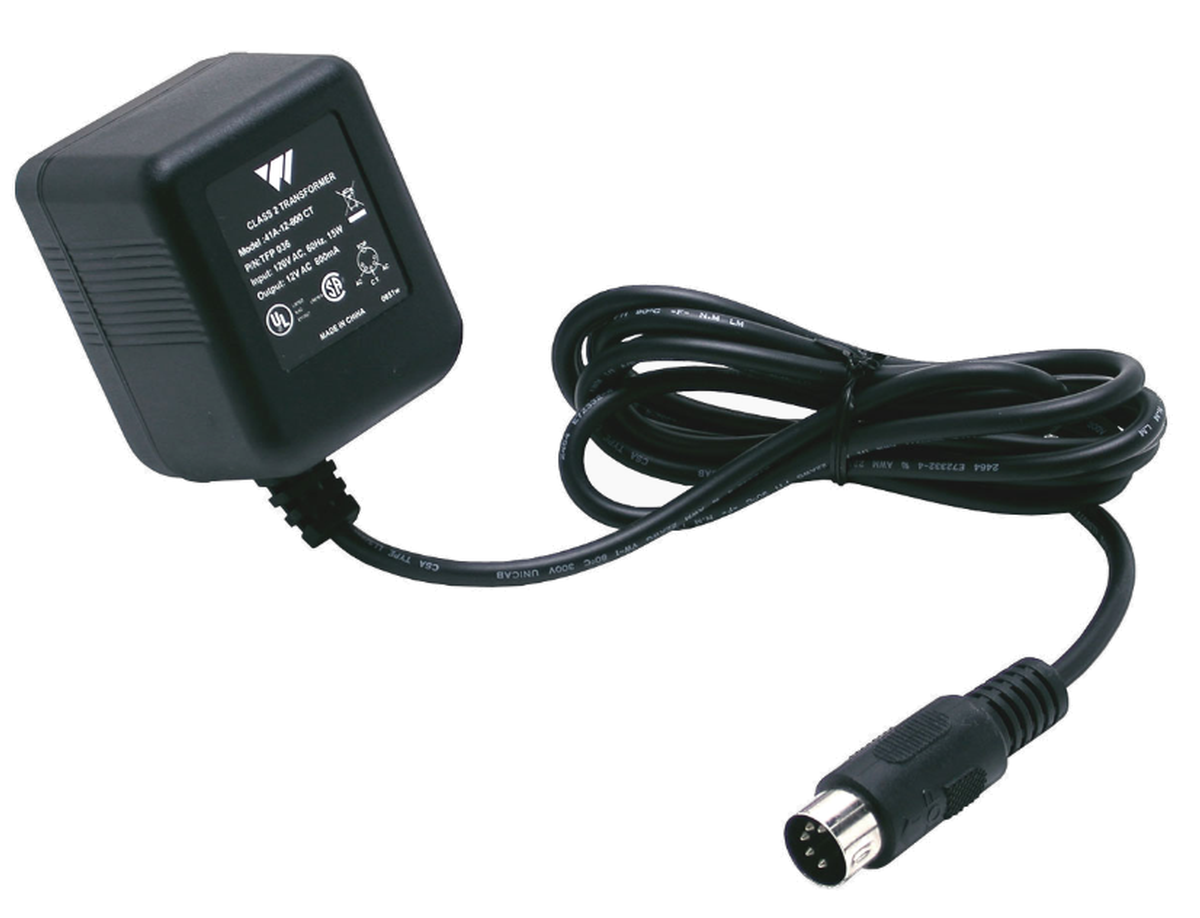

• (1) TFP 036 Power Supply

All of these components work together to provide clear sounds to those hard of hearing.

Specifications

• Nominal Impedance: 75 Ohms
• Length: 9 inches
• BAT 001-2 Specifications
• Alkaline, 1.2 Volt EAR 013 Specifications
• Plug: 3.5 mm mono
• Cord length: 39 inches
• Impedance: 32 Ohms
• Frequency Range: 20 - 20kHz
• Max input power: 5mV
• Sensitivity: 128dB @ 1kHz
• Driver size: 13 mm
• Weight: 9g
• Replacement earpad: EAR 015
• Dimensions: 4.1" x 2.85" x 1.38"
• Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
• Color: Black
• Battery Type: (2) AA Alkaline or 2 x AA NiMH
• Battery Life: Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs
• (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
• Current Consumption: 52mA nominal
• Temperature Range: 0 to 50C
• Channels: 17, accessed via seek button in battery compartment
• Operating Frequency: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• Intermediate Frequency: 75 kHz
• FM Deviation: 75 kHz
• De-Emphasis: 75 S
• LED Indicator: Power Green
• Low Battery Flashes Green
• AFC Range: 120 kHz
• Sensitivity: 2 V at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector:3.5 mm stereo/mono phone jack
• Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32
• Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on accessories

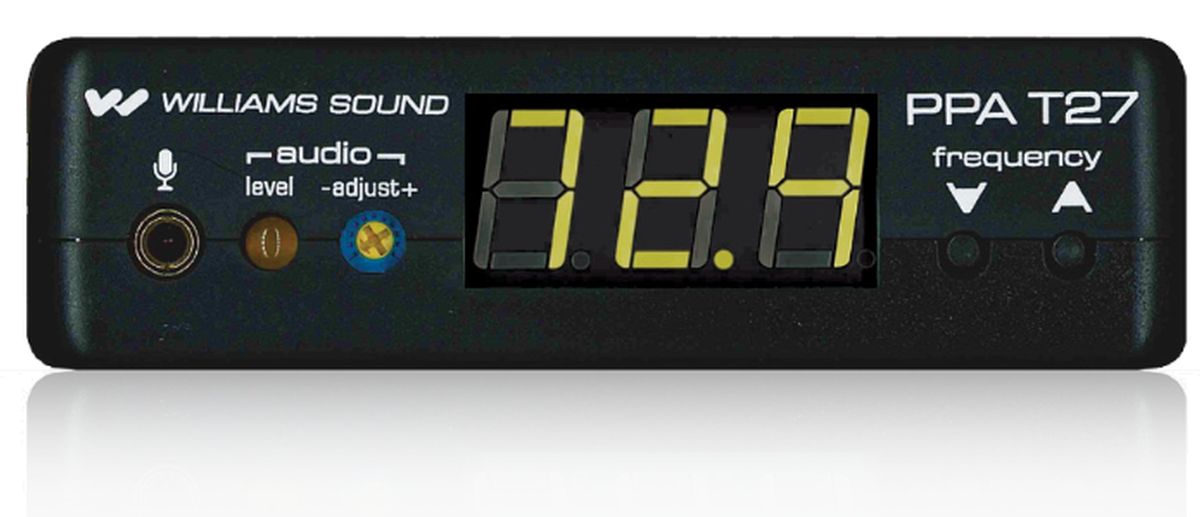

• PPA T27 Specifications
• Dimensions: 4.1" x 6.1" x 1.3"
• Weight: 7.8 oz.
• Color: Black
• Power (U.S./Canada): 105-130 VAC, 50-60 Hz, 3.2 W at 120 VAC
• Operating Frequencies: 72-76 MHz*: 72.1 (CH A), 72.2 (CH K), 72.3 (CH B), 72.4 (CH N), 72.5 (CH C), 72.6 (CH O), 72.7 (CH D), 72.8 (CH P), 72.9 (CH E), 74.7 (CH I), 75.3 (CH J), 75.4 (CH R), 75.5 (CH F), 75.6 (CH S), 75.7 (CH G), 75.8 (CH T), 75.9 (CH H)
• Frequency Selector: External switches, 17 channels (lockable)
• RF Field Strength: Does not exceed 80mV/m @ 3m
• Nominal Range: Up to 1000 feet with standard ANT 021 antenna or optional ANT 005 coaxial antenna
• Modulation: FM, 75 kHz deviation (wide band) max
• Stability: .005% over 0-50 C
• Pre-Emphasis: 75 S
• Frequency Response: 85Hz - 14kHz 3dB
• Distortion: 1% Max. THD
• Signal to Noise Ratio: 65 dB with R35 Receiver
• Microphone Input: 3.5mm mini phone jack, supplies +DC for electret mics
• Mic Input Level: 1 10 mV, nominal
• Line-Level Input: RCA Jack, Hi Z, unbalanced
• Line Input Level: .1 1 Vrms, nominal
• Input Attenuator: Pot, screwdriver-adjustable
• Antenna Outputs: Thread mount for ANT 021 antenna or ANT 025 telescoping antenna RF connector for ANT 024 dipole or ANT 005 coaxial antenna
• Approvals: FCC including part 15*, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories
• TFP 120 Specifications
• Input: 120 VAC, 60 Hz, 15 W
• Output: 12 VAC, 800 mA
