Williams Sound FM ADA KIT 37
FM ADA Compliance Kit with 4 Receivers

Description

The Williams Sound FM ADA KIT 37 provides everything you need to accommodate individuals for hearing accessibility within a small-group settings including libraries, conference rooms, and information desks. This portable, easy-to-use FM product operates at 72-76 MHz on one of 16 selectable channels. This single kit satisfies ADA needs designed for multiple-room facilities. The kit is easy to set up and use and features a 150' operating range and the receiver features 100 hours of battery life. Ideal for jury rooms, meeting rooms, council chambers, libraries, and information desks.

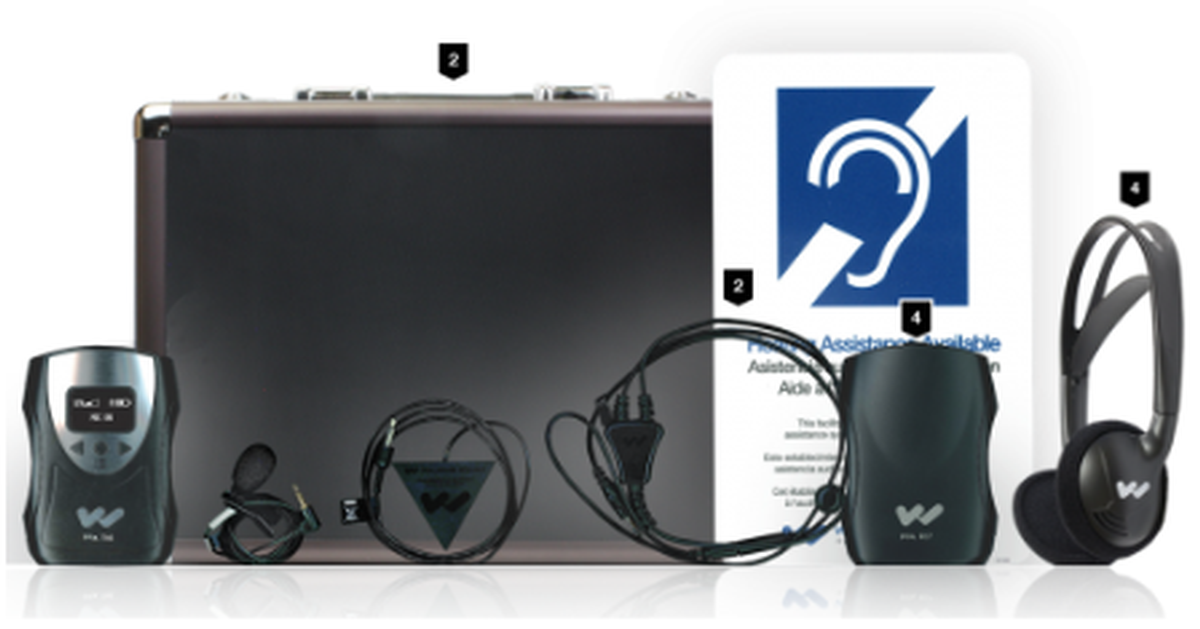

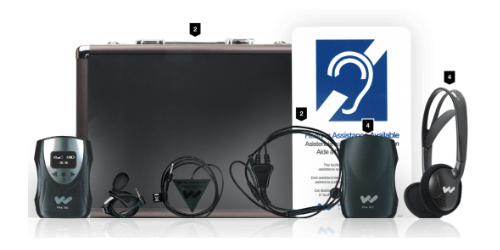

System includes:
(1) PPA T46 transmitter
(4) PPA Select (PPA R37) receivers

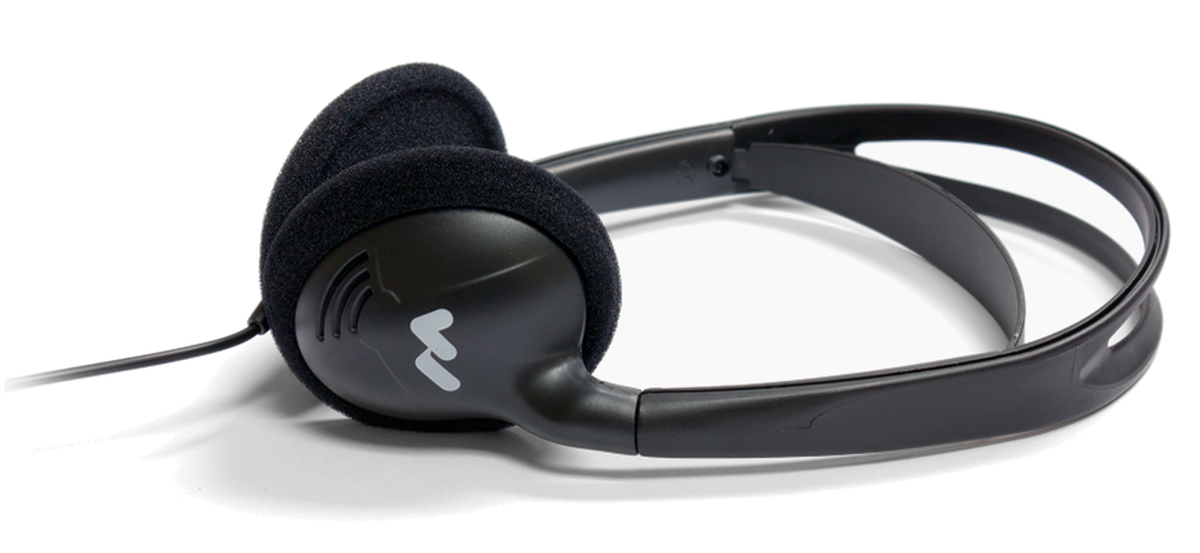

(4) HED 027 headphones
(1) MIC 090 lapel microphone
(1) MIC 049 desktop conference mic
(1) CCS 029 system carry case

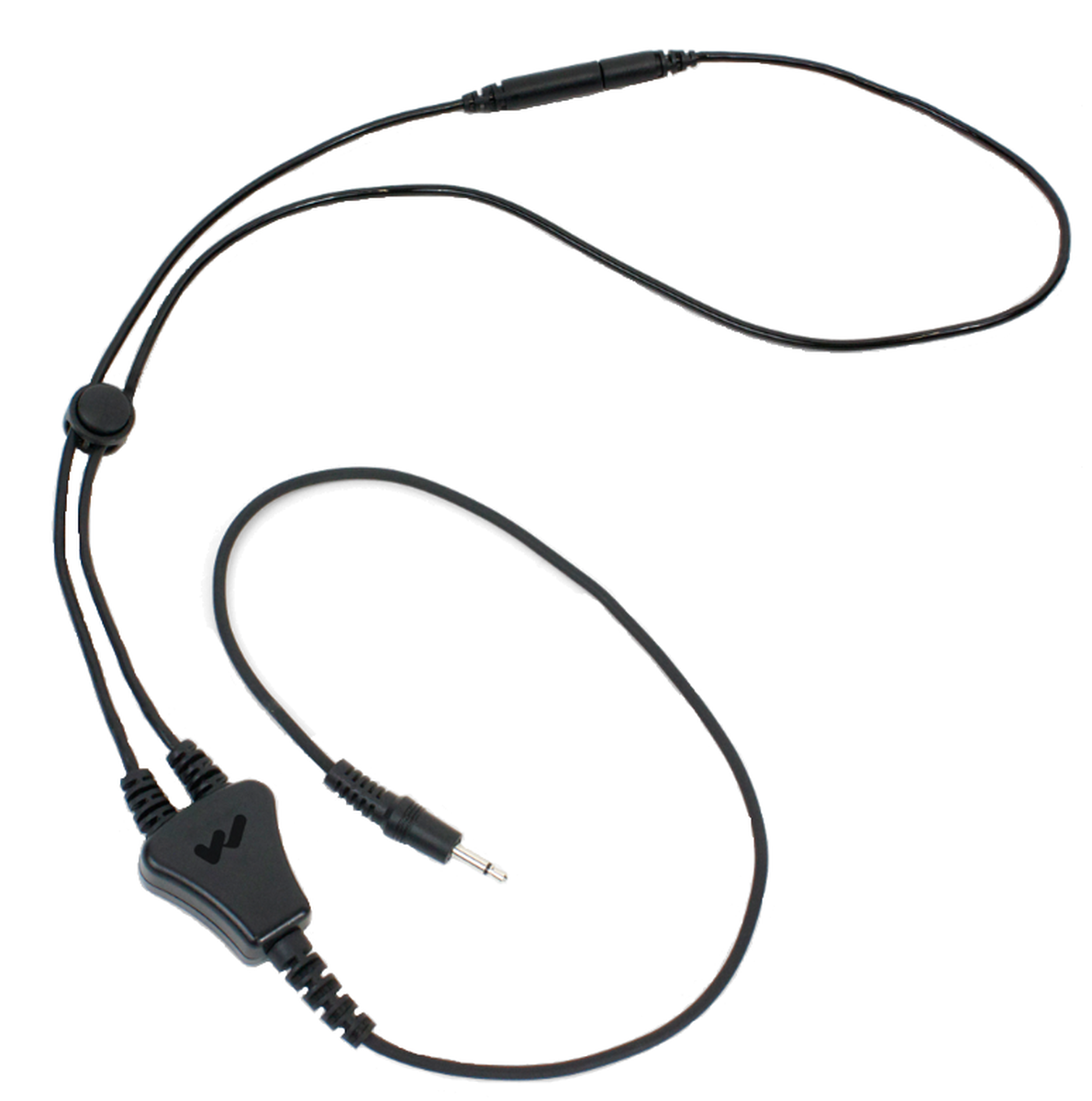

(2) NKL 001 neckloops
(10) BAT 001 AA alkaline battery

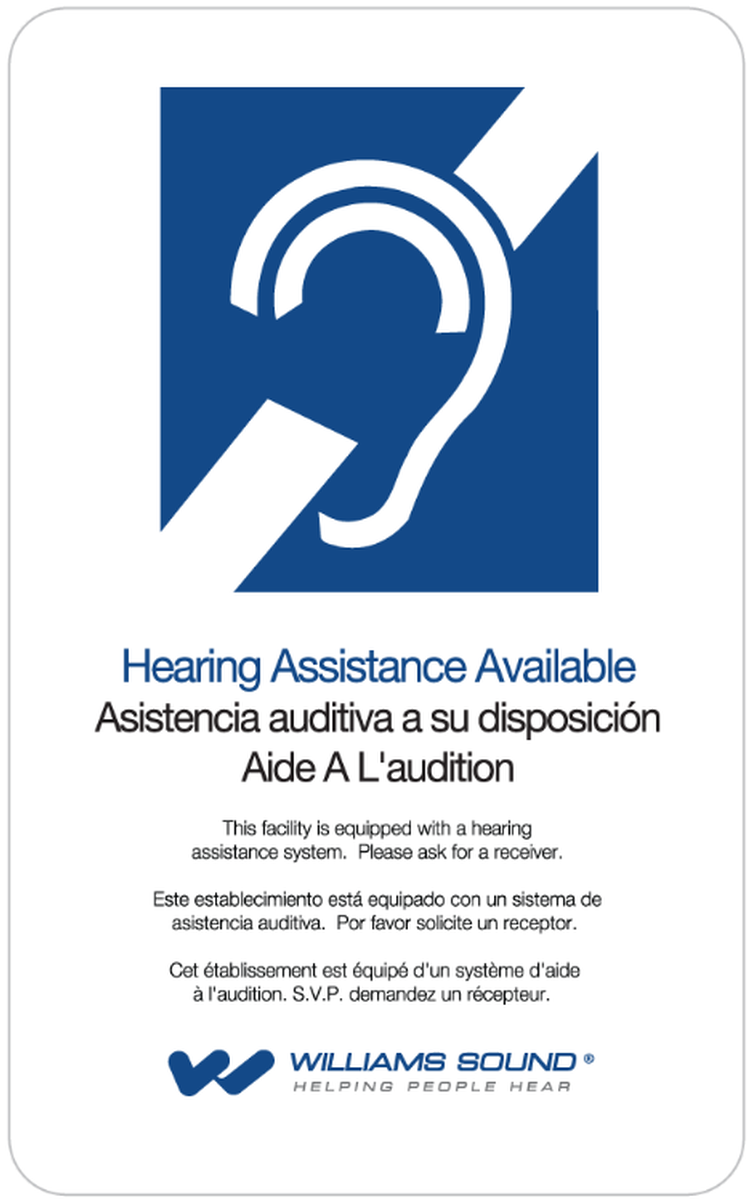

(1) IDP 008 ADA wall plaque

Specifications

• Driver Size: 40 mm
• Nominal Impedance: 16
• Freq. Response: 20 - 20kHz
• Weight: 102g
• Max Power Input: 100 mW
• Sensitivity: 96 dB @ 1kHz
• Replacement Pads: EAR 035 (one pair)
• IDP 008 Specifications
• Dimensions: 10-3/8" (L) x 6- " (W) x 1/8" (H)

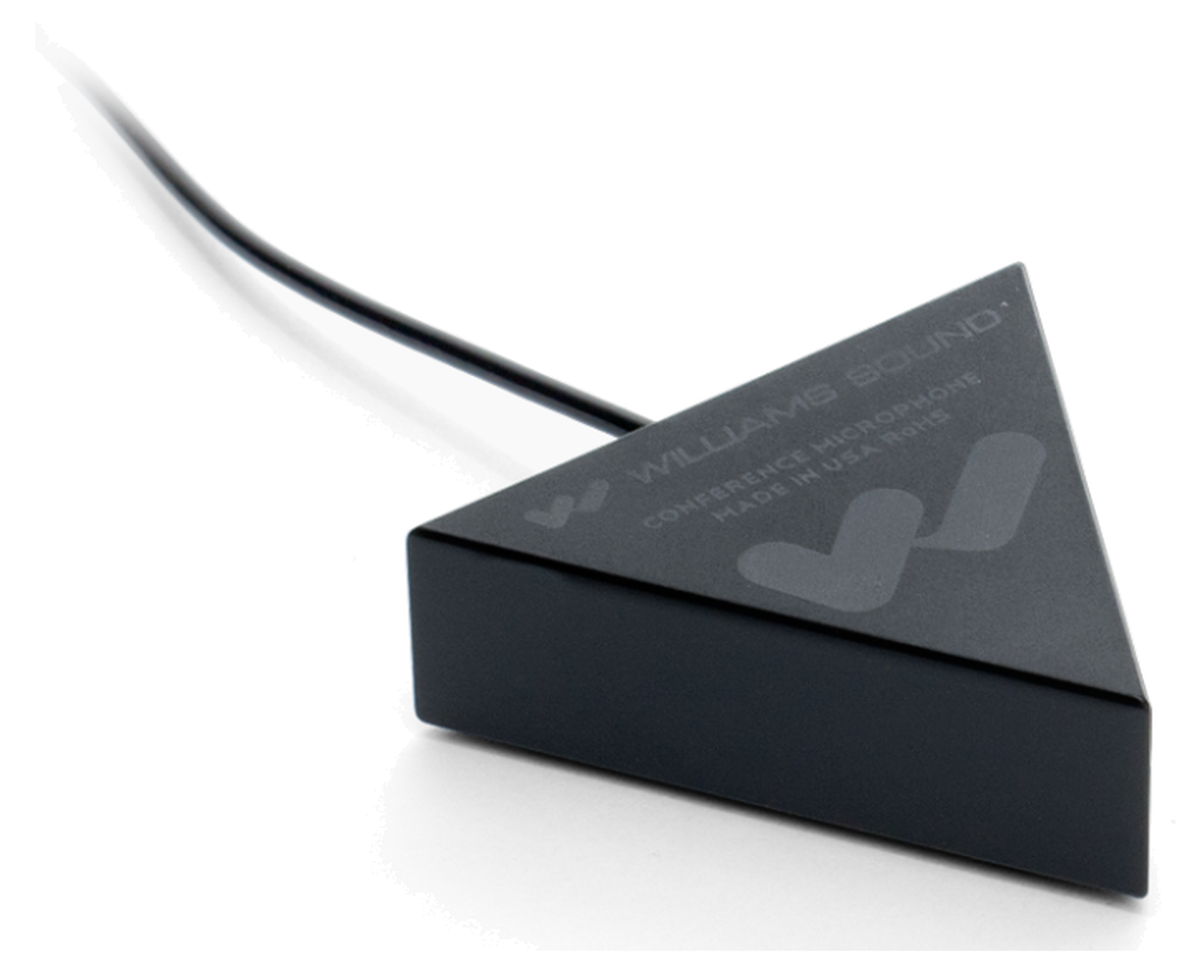

• MIC 049 Specifications
• Phantom Power: 1.2 - 10 VDC
• Impedance: 1.5 k
• Operating Voltage: 1.2 - 10 VDC
• Freq. Response: 100 Hz - 8 kHz
• Signal-to-Noise Ratio: >60 dB
• Pick-Up Pattern: Omni-directional
• Element: Electret-condenser
• Sensitivity: -38 dB 3 dB
• Approvals: RoHS
• Color: Black
• Weight: 0.08 lbs
• Plug: 3.5 mm mono
• Cord Length: 36"
• Approvals: RoHS
• Warranty: 90 days

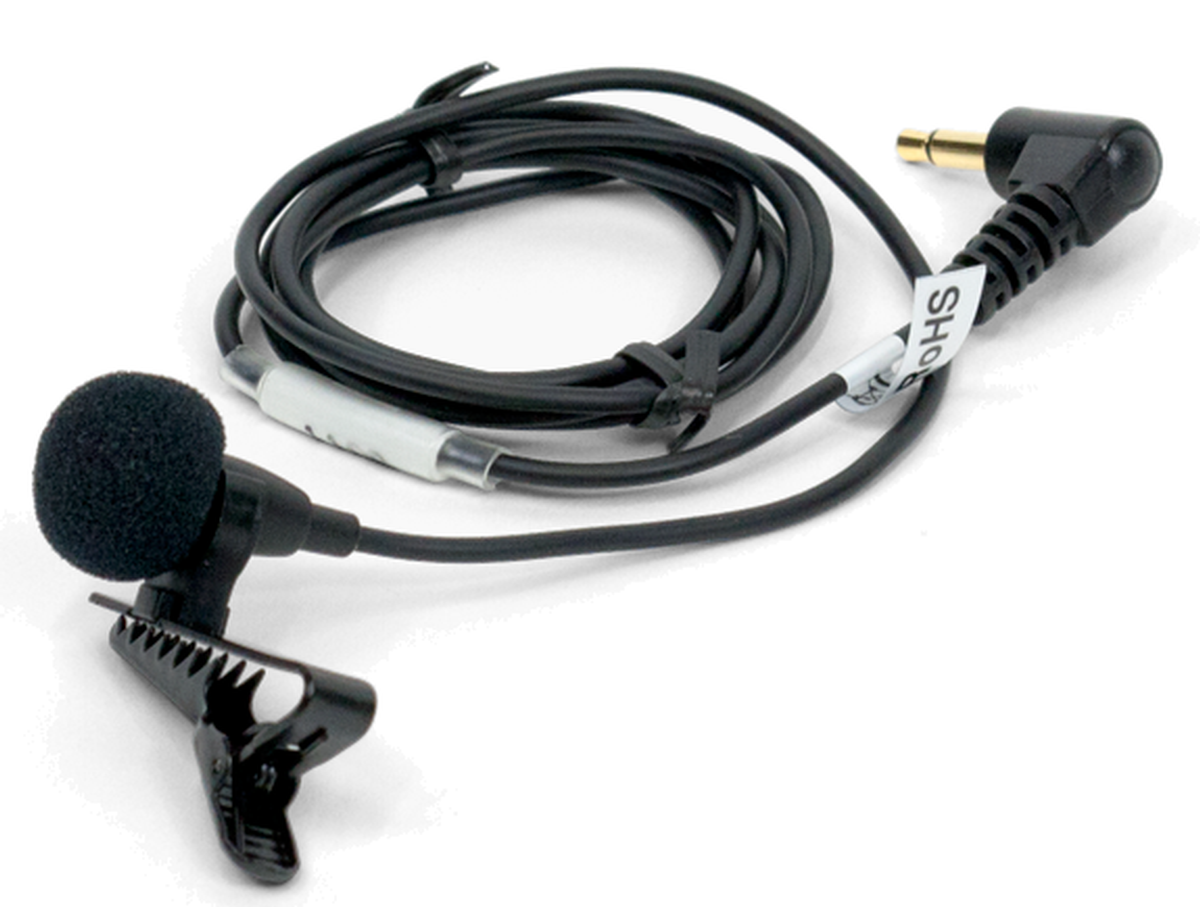

• MIC 090 Specifications
• Element: Electret-Condenser
• Pick-Up Pattern: Omni-directional
• Phantom Powered: No
• Impedance: 1.5 k
• Frequency Response: 20 Hz 18 kHz
• Dynamic Range: 79 dB
• Sensitivity: -56 3 dB
• Signal-to-Noise Ratio: 63 dB
• Plug: 3.5 mm, right-angle
• Cord Length: 39"
• Color: Black
• Weight: 0.05 lbs
• Replacement Windscreen: WND 006
• Replacement Clip: CLP 090
• Approvals: RoHS
• Warranty: 90 days

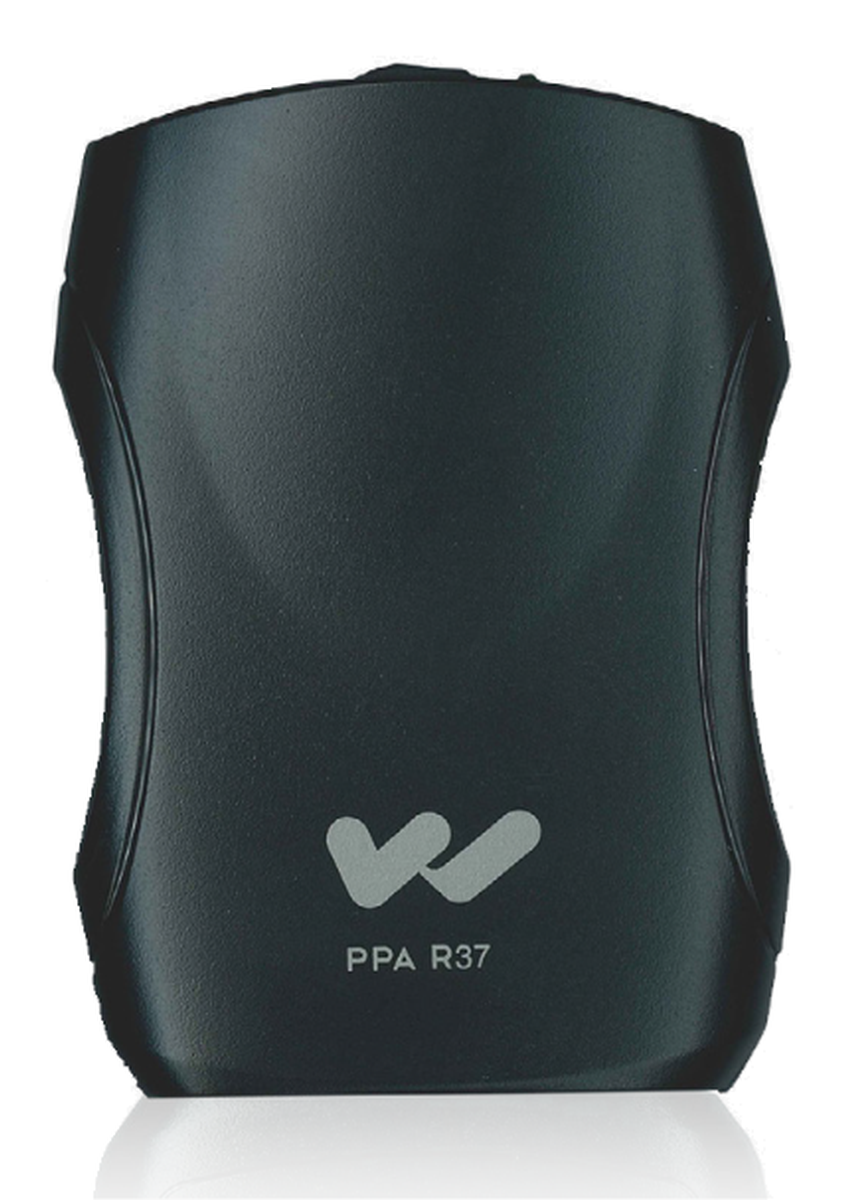

• PPA R37 Specifications
• Dimensions: 4.1" x 2.85" x 1.38"
• Weight: 4.6oz (130g)
• Color: Black
• Battery Type: (2) AA Alkaline or 2 x AA NiMH
• Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs / (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs
• Current Consumption: 52mA nominal
• Temperature Range: 0 to 50C
• Channels 17: accessed via seek button in battery compartment
• Operating Frequency: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
• Intermediate Frequency: 75 kHz
• FM Deviation: 75 kHz
• De-Emphasis: 75 S
• LED Indicator: Power Green, Low Battery Flashes Green
• AFC Range: 120 kHz
• Sensitivity: 2 V at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack
• Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32
• Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
• Approvals: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories

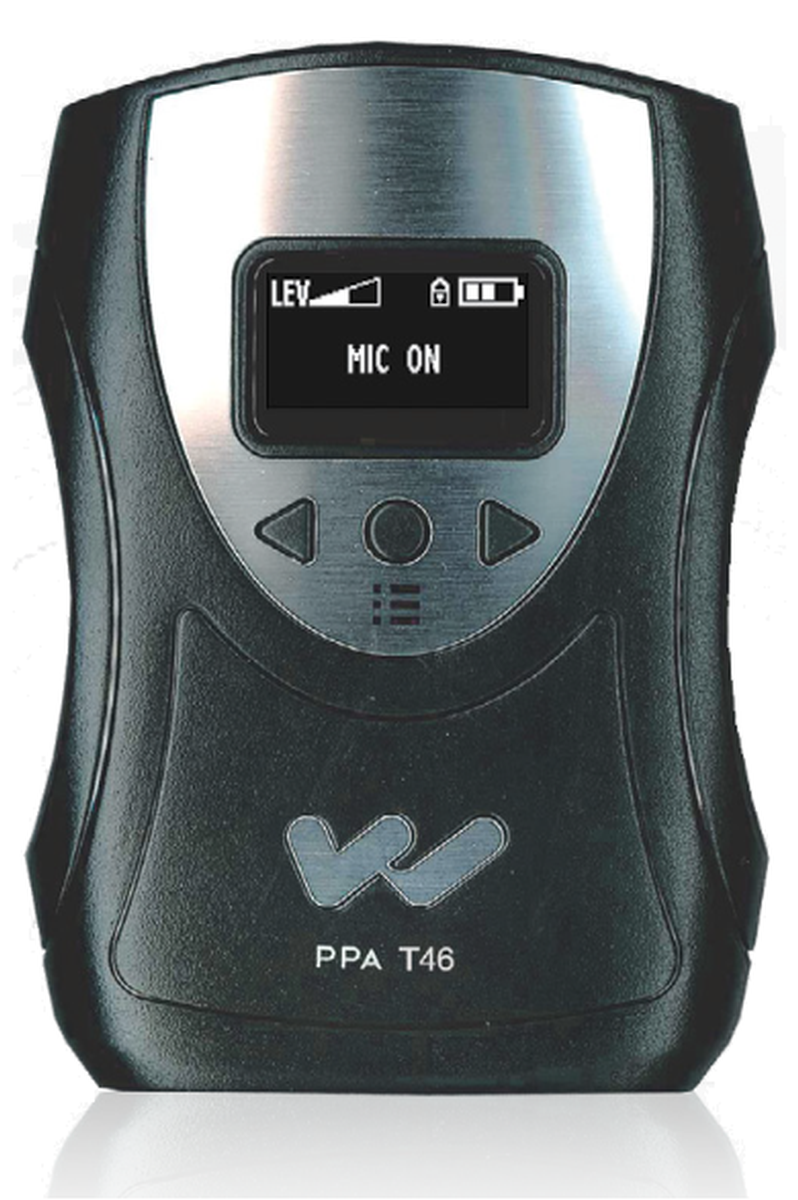

• PPA T46 Specifications
• Dimensions: 4.1" L x 2.8" W x 1.1" D
• Weight: 2.6 oz (74 g), no batteries
• Color: Black/Silver
• Enclosure Material: Shatter-resistant PC/ABS plastic with textured scratch-resistant aluminum face plate
• Battery Type options: (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001-2), 75 mA nominal current drain, up to 30 hours battery life / (2) AA 1.5 V NiMH rechargeable batteries (BAT 026-2), 75 mA nominal current drain, up to 20 hours battery life per charge, recharges in 14 16 hours, uses CHG 3502 or CHG 3512 Charger
• Operating Frequencies: Selectable, 17 channels, 72.1 75.9 MHz*. Switchable 8 or 17 Channel Mode. (8-channel mode setting corresponds with PPA R35-8 receiver channels)
• Stability: .005%, frequency synthesized, crystal reference, PLL
• Modulation: Wide-band FM, 75 kHz peak, 75 S pre-emphasis
• RF Output: 80 mV/m at 3 m (max. allowed by FCC rules)
• Frequency Response: 180 Hz to 13 kHz, 3 dB at 1% max. THD
• Signal-to-Noise Ratio: 65 dB (typical) transmitted
• Transmit Antenna: Integral with microphone cord
• Microphone: Electret type, 3.5 mm mono plug
• External Display: OLED for status and menu information
• Status: Ch/Freq, Mic Audio Level, Auxiliary Input Audio Level, Battery Status, Mic Mute, Channel Lock, Dual-Preset mode
• Menu: Ch/Freq display mode select, Volume, Aux Input, Compression, 17 or 8-channel mode, screen time out, screen brightness, restore default settings
• External Controls: Momentary push button: push and hold 3 seconds for power On/Off, push and release for microphone mute On/Off. "Up", "Down" and "Menu" buttons for accessing and changing transmitter settings. Battery type switch (Alkaline or NiMH) located behind the battery compartment door
• External Indicators: Power LED - Green, flashes when battery is low
• Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
• Aux Input: 2.5 mm stereo jack, adjustable gain with 60 dB range
• Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
• Compatible Receivers: PFM R31, PFM R32, PFM R33, PFM R36, PPA R35, PPA R37, PPA R35-8, PPA R1600
• Approvals/Directives: FCC, Industry Canada, RoHS, WEEE
• Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
