Williams Sound DL 102 SY1
Counter Loop Amplifier System for T-Coil Hearing Devices

Description

The Williams AV DL102 Loop amplifier provides a practical solution for a user to hear with their T-coil enabled hearing device in small areas such as counters and service desks.

Audio is wired into the DL102 amplifier via a line-level input or microphone. Audio is fed from the amplifier through the loop wire in the area where a T-coiled hearing device can pick-up the audio.

With no direct connection between the user and service personnel, users can hear effectively when using the T-coil in their customized hearing devices.

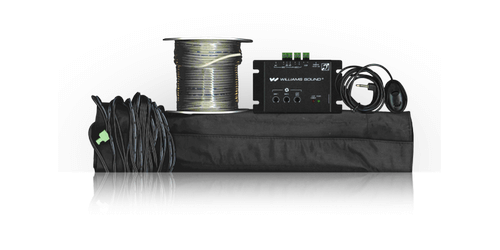

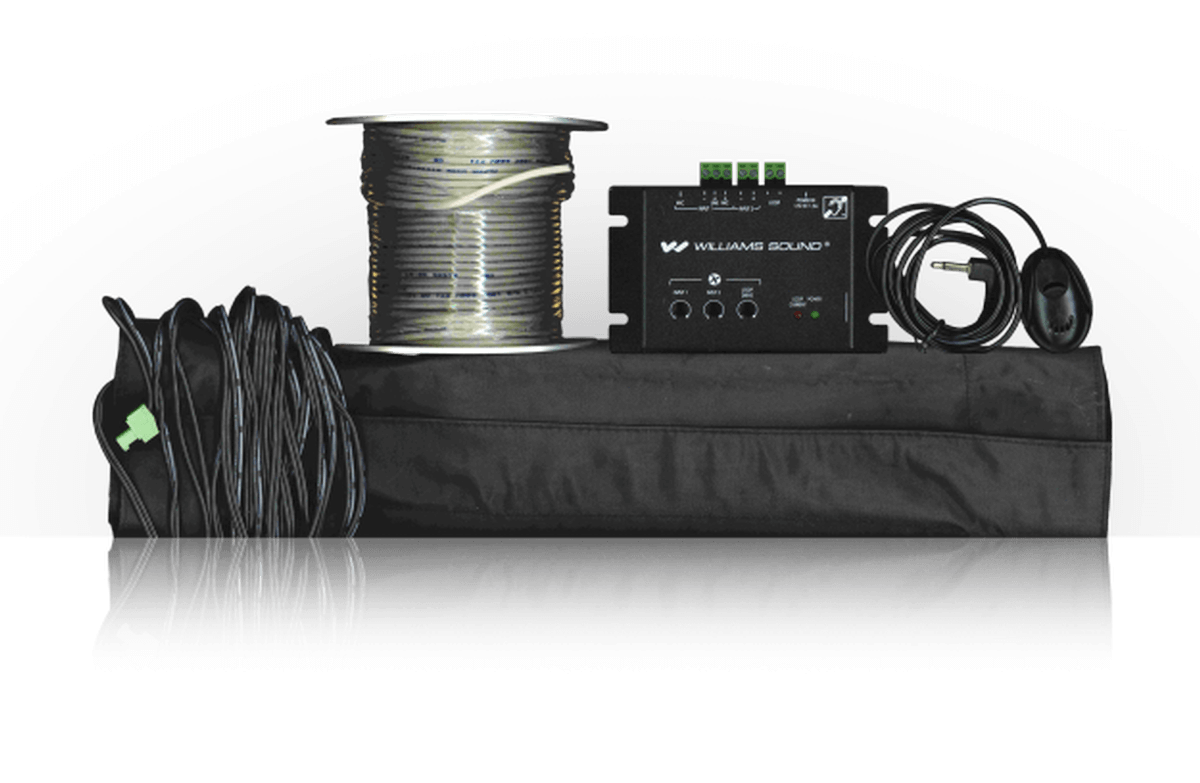

The DL 102 SY1 loop system is supplied with a loop pad and a spool of wire.

The system includes the following devices:

• DL102 amplifier
• Power supply
• AC line cord
• Loop notice stickers
• Set of adhesive cable clips
• MIC 105 - Microphone
• PLW 037 (120ft Spool of wire)
• PLM 001 - Loop Pad

Specifications

• Power Voltage: 100-240VAC, 50/60Hz - 2.0A Input
• Dynamic Range: > 60 dB
• THD: THD+N < 0.5% - 1kHz
• Amplifier Type: Constant current
• Loop Resistance: 0.1 to 1.0
• Current Output: 2A RMS at 1kHz (2.8 APK)
• Protection: Thermal, short-circuit and start
• Dimensions: 3.9" x 2.3" x 1" (100mm x 60mm x 25mm)
• Amplifier Weight: 0.48 lbs (218 g)

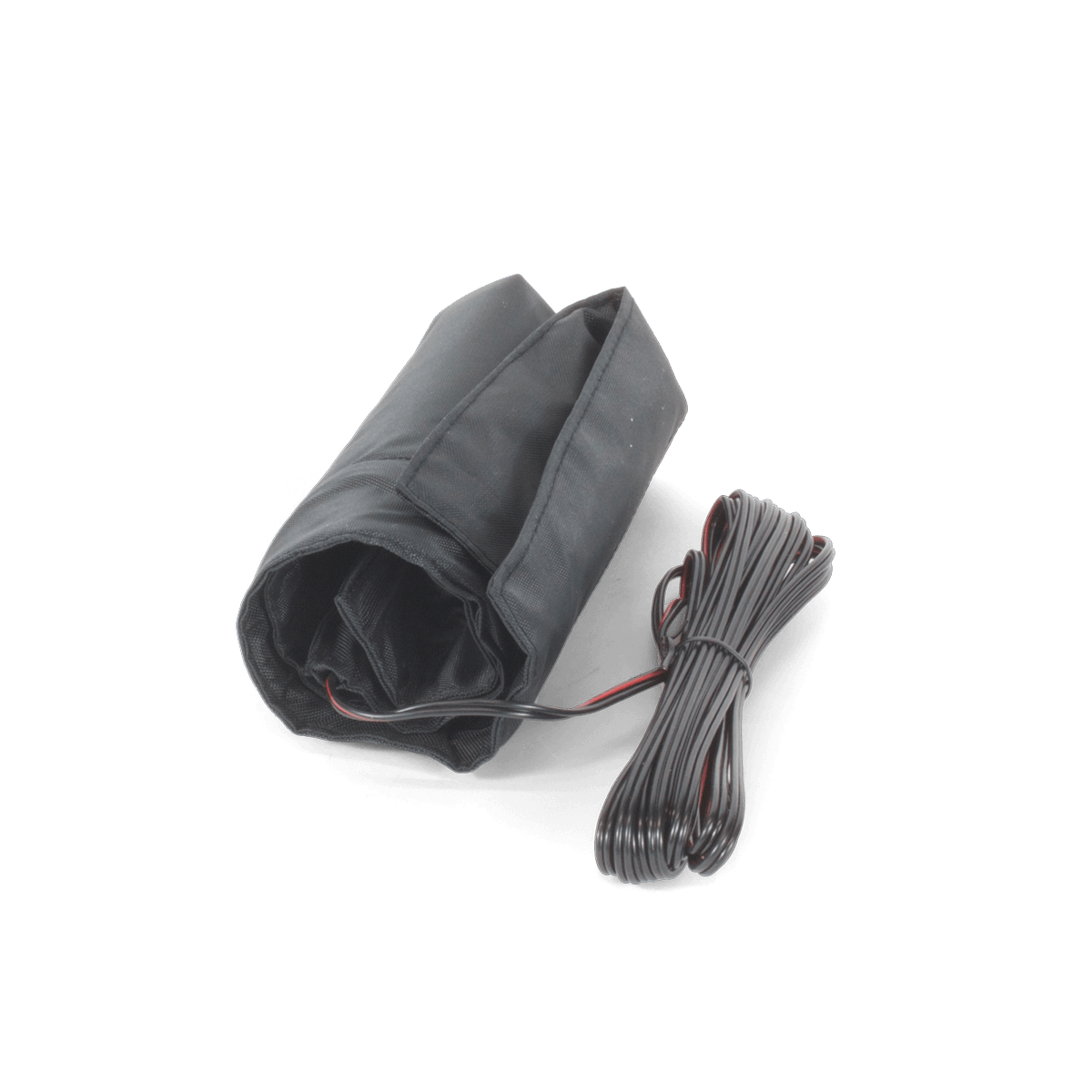

• PLM 001:
• Lead Wire Length: 16 ft / 5 m
• DC Resistance: 1.3 Ohms
• Weight: 0.5 lbs / 225 g
• Pad: 14 in / 0.4 m square
• Wire In Pad: 10-turn loop

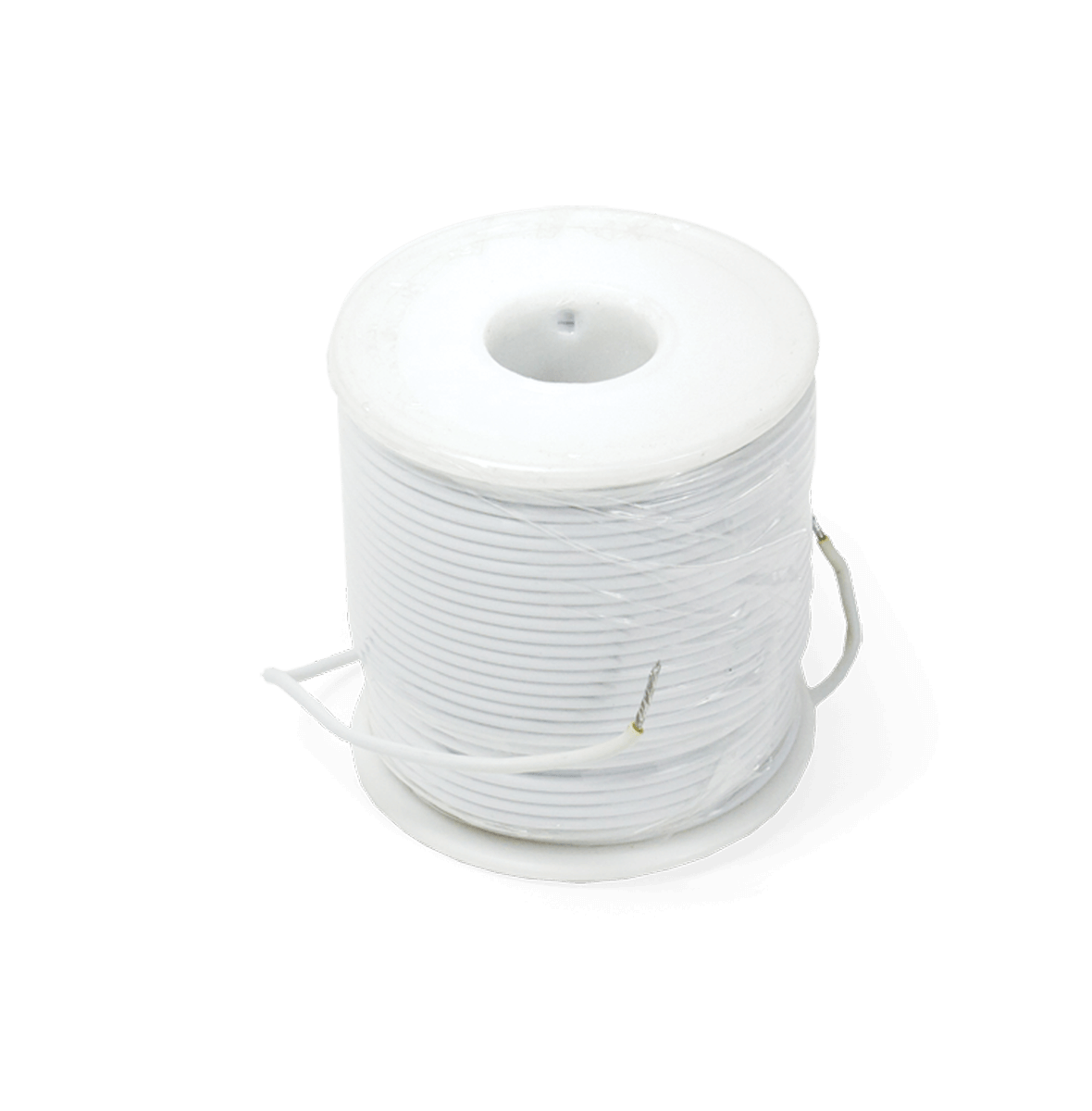

• PLW 037:
• Length: 120'
• Spool Dimensions: 6.5" Dia
• Spool Weight: 9.8 lbs
• Color/Material: White

Downloads

• Williams Sound DL 102 SY1 Specifications (PDF)
• Williams Sound DL 102 SY1 Manual (PDF)
• Williams Sound DL 102 SY1 Quick Start Guide (PDF)
