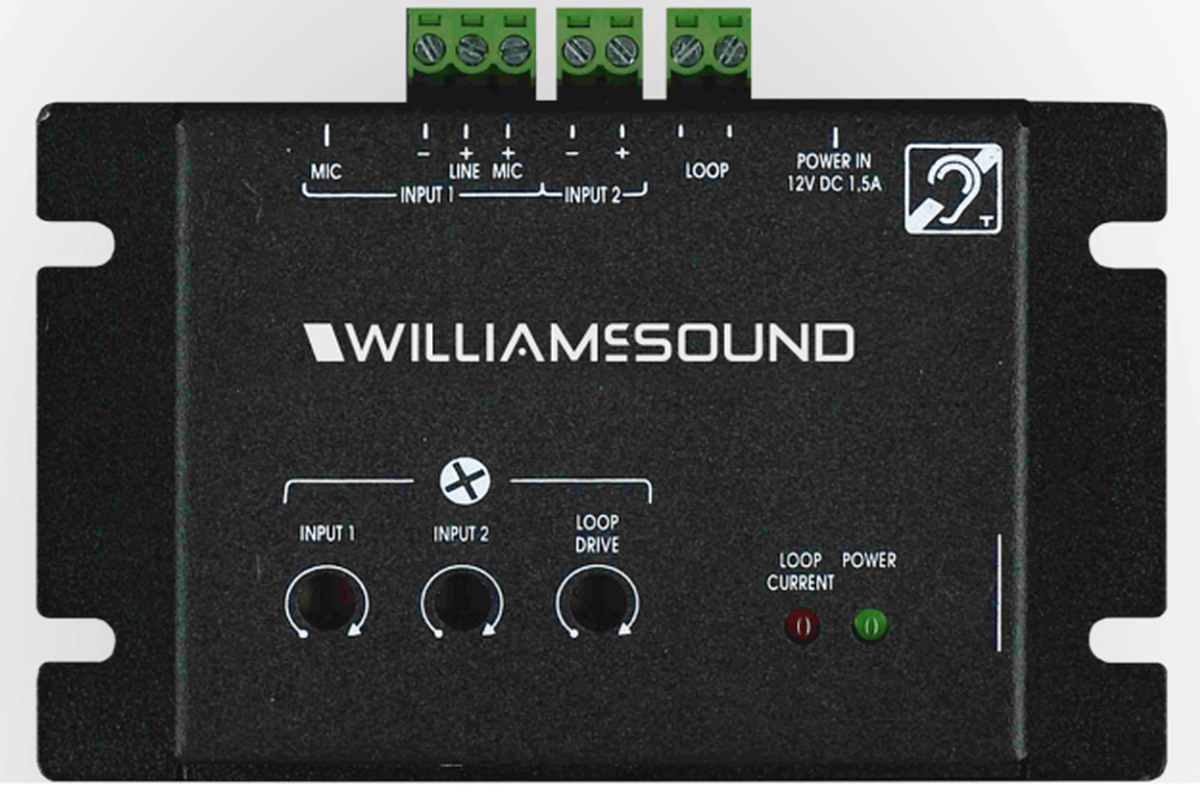

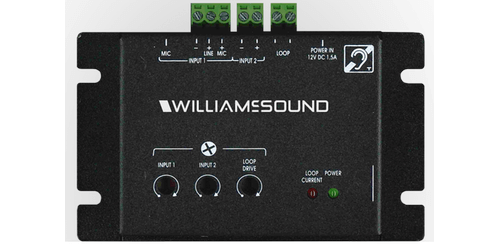

Williams Sound DL 102
Counter Loop Amplifier for T-Coil Hearing Devices

Part #: DL 102
Satisfaction Guaranteed!
Need a price or product info? Complete and submit the below
Quantity
Email
Name
Top DL 102 Specifications
  • Audio Input: 3 (1 microphone or line input, isolated line input, Mic)
  • Connector Type: 3.5mm jack, Mic-2 pole line in, 3 pole line in, Mic in
  • Power Supply: 12V DC 1.5 A output
  • Power Voltage: 100-240VAC, 50/60Hz - 2.0A Input
"Very nice folks to work with. Quick and good information"
-Jeff A.
Contact a product specialist!
Proudly supporting our customers since 2008

Description

The Williams AV DL102 Loop amplifier provides a practical solution for a user to hear with their T-coil enabled hearing device in small areas such as counters and service desks.

Audio is wired into the DL102 amplifier via a line-level input or microphone. Audio is fed from the amplifier through the loop wire in the area where a T-coiled hearing device can pick-up the audio.

With no direct connection between the user and service personnel, users can hear effectively when using the T-coil in their customized hearing devices.

This loop system is supplied with a loop pad and a spool of wire.

System includes:

  • DL102 amplifier
  • Power supply
  • AC line cord
  • Loop notice stickers
  • Set of adhesive cable clips
  • MIC 103 - Microphone

Specifications

  • Dynamic Range: > 60 dB
  • THD: THD+N < 0.5% - 1kHz
  • Amplifier Type: Constant current
  • Loop Resistance: 0.1 Ohms to 1.0 Ohms
  • Current Output: 2A RMS at 1kHz (2.8 APK)
  • Protection: Thermal, short-circuit and start
  • Dimensions: 3.9" x 2.3" x 1" (100mm x 60mm x 25mm)
  • Weight: 0.48 lbs (218 g)
  • Warranty 2-year
