Williams Sound AP SY1
BluePod Conference Mate Bundle
- Inputs: Microphone or line inputs accept balanced or unbalanced analog signals
- USB: (4) Type A USB Receptacle, USB 1.1 or 2.0 Supported
- Microphone: 48v Phantom Microphone (not included) Williams AV recommend microphone is Audio-Technica Pro 44 Boundary microphone (or equivalent)
- Network: Network access with browser
-Chad R.
Description
The BluePOD AP SY1 Conference Mate Bluetooth® audio conferencing system is designed to simplify making conference calls in your meeting rooms with your mobile phone. With BluePOD, making a conference call is as simple as tapping the Bluetooth connect button on your phone or connecting your laptop to Bluetooth; no special software is needed The Bluetooth Wireless Access Point (B-WAP) ensures a strong and smooth Bluetooth connection. Let your everyday devices seamlessly take advantage of your already installed AV equipment.
This bundle comes with speakers and microphones for a full audio-conferencing system.

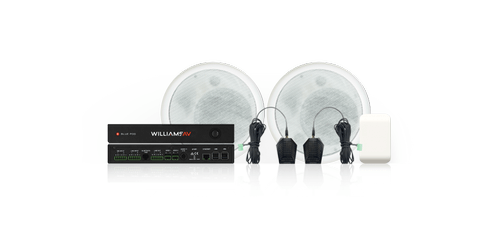

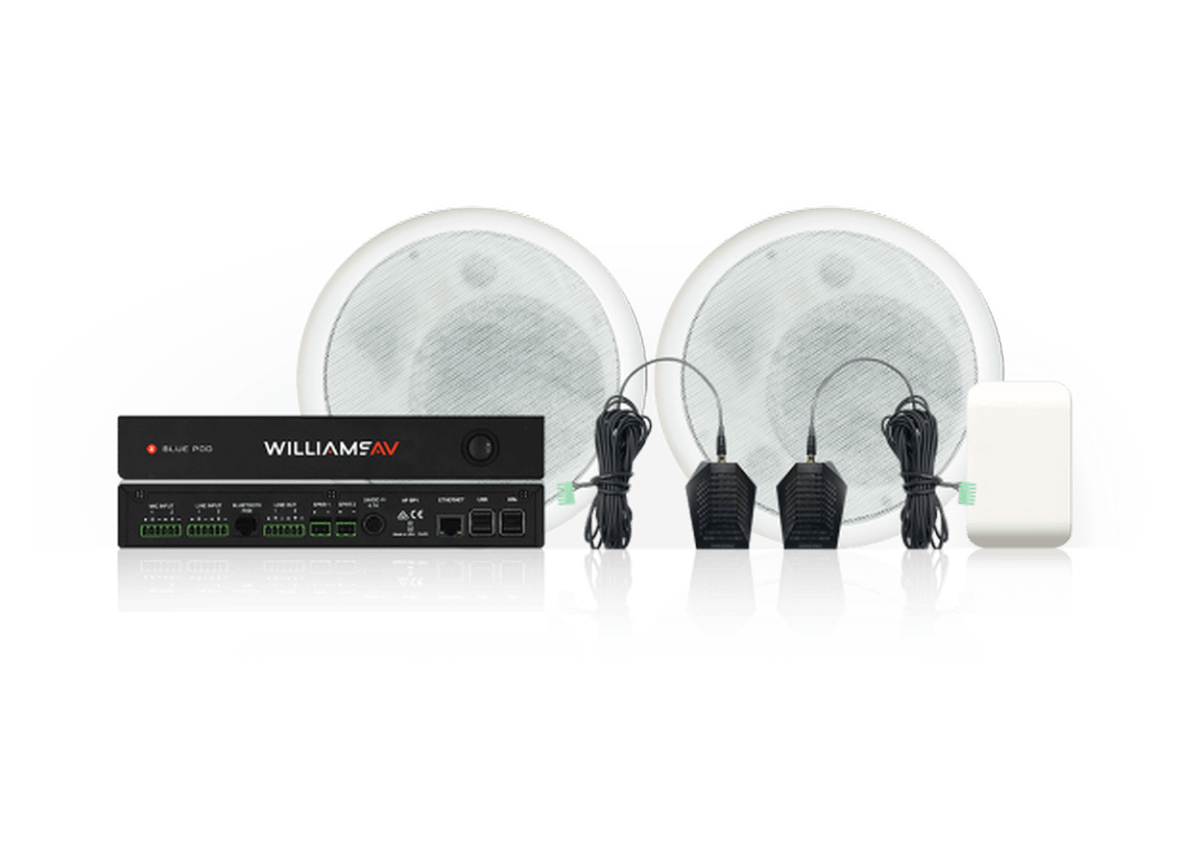

This system includes:
(1) Blue POD Conference Mate (AP BP1)
(2) 6.5" 2-wasy in-ceiling speakers
(2) low profile, unidirectional boundary mics
Specifications
- connect to IP address over Ethernet (RJ45, 10/100/1000 Mbps) network
- User Access: Mixer controls include volume, mute, etc. are accessible via browser menu
- Bluetooth Range: 50 ft radius (15.24 m)

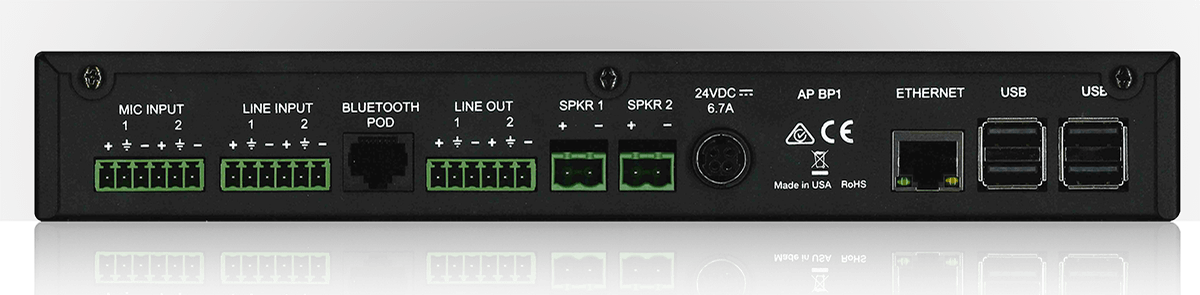

- Outputs: The line output is a balanced or unbalanced analog signal at a 6 position Phoenix style connector with +, gnd, and - connections
- Speaker: Speaker output (2x) has a 25 watts/channel class D amplifier output impedance is selectable at 8 or 4 . Each channel output is a 2 position Phoenix style connector with a + and - connection
- Integrated Mixer: (2) mic inputs, (2) line inputs and (2) line outputs
- (4) USB inputs and (2) speaker outputs. Acoustic Echo Cancellation (AEC) is placed between both microphone inputs and speaker outputs
- Dimensions: 10" W (254 mm) x 7.5" D (190.5 mm) x 1.5" H (38 mm)
- Weight: 2.75 lb (1.25 kg)
- Power Supply: Input: AC Power Plug is IEC 320-C14
- Output: 24VDC @ 6.7A to DIN Plug
- Power Switch: Rocker. Backlit red LED indicates power on
- Bluetooth Wireless Access Point: Bluetooth 4.2 with aptX HD Support
- Connect with CAT6 cable
- Bluetooth Wireless Access Point Chassis: Wall mount type, molded plastic, white (beige) top with grey bottom
- Controller Chassis: Desktop type, black, metal with white and red legends on front, white legends on back
- Warranty: 2-year parts and labor
